Aluprof MB-104 - Door System (PassivHaus Certified)

Verified by manufacturer 29 days ago

Aluprof MB-104 SI - Passiv Haus Certified - high insulation framed system

Aluprof UK Variant:
Third party certifications:
  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Passivhaus

    Passivhaus

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

Passive House thermally broken aluminium door system.

Jump to:
+44 (0)161 9414005 Website

Application

New build; refurbishment; low-rise and high-rise buildings; commercial; public sector; industrial; residential; retail; leisure; hospitality; education; Redevelopment.

Description

Thanks to its excellent thermal performances, the thermally broken door system MB-104 Passive meets all the requirements for the components used in passive buildings, confirmed by certificates granted by the Passive House Institute PHI Darmstadt.



This system is intended for fabrication of external structure elements such as various types of windows, doors, shop fronts and spatial structures, which are highly resistant and characterized by excellent water and air tightness, and thermal and acoustic insulation performance.


Features and benefits:

  • Doors certified by the Passive House Institute PHI Darmstadt.
  • Excellent weather tightness and thermal insulation performance.
  • Wide range of glazing, up to 81 mm allowing for triple and fourfold glazing units.
  • 'Euro' grooves allow the fitting of most of the available hardware, both for aluminium and PVC windows.
  • Can use surface, barrel or concealed hinges.
  • Expansion joint profiles for the door leaf.
  • 95 mm-wide threshold - the threshold and the frame have the same width.
  • Anti-burglary doors up to RC3 class.
  • MB-104 Passive SI windows also available, specified separately.
  • MB-104 Passive Aero range also available, specified separately.

General information

Color

Other

Finish

Anodized

Guidance for specification option:

By Aluprof to Qualanod standard, 25 µm film thickness.

Powder-coated

Guidance for specification option:

Polyester powder coated to Qualicoat or Qualideco standards (including 'seaside' standard).

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

Anodized finish.

25 year

Guidance for specification option:

Up to 25 years for polyester powder coating finish. Consult manufacturer for details of marine and industrial environments.

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary

CAWS

H11/135 Doors

L20/480 Doorsets

L20/55 Doorsets

Specification data - Aluminium doorsets

Standard

Non-fire and/ or smoke rated doorsets to EN 14351-1.

Third party accreditation

PASSIV HAUS Institute, CE marked, Q-Mark, Qualicoat/ Qualanod/ Qualideco, ITB - EPD Certification.

Configuration

Single, open in.

Single, open out.

Double, open in.

Double, open out.

Doorset size

-

Manufacturer guidance

Add dimensions and/ or drawing references as required.

Maximum (h x w): 3000 x 1400 mm.

Maximum weight: 200 kg.

Performance

-

Strength and durability

Up to Class 4 to EN 1192.

Thermal

From 0.59 W/m²K.

Intruder resistance

-

Minimum requirement

Standard.

RC2.

RC3.

Application

Manufacturer's standard.

Frame

-

Material

Aluminium.

Guidance for specification option:

Specify frame profile below.

Threshold

009204 low thermal PASSIV HAUS threshold.

K519180 low threshold.

K518181 low threshold.

Perimeter seals or inserts

Manufacturer's standard.

Finish

-

Coating

Anodized by Aluprof to Qualanod standard, 25 µm film thickness.

Polyester powder coated by Aluprof to Qualicoat standard, 60 µm film thickness.

Polyester powder coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness.

Polyester powder coated by Aluprof to Qualideco standard, 60 µm film thickness].

Polyester powder coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness.

Bespoke.

Guidance for specification option:

Insert details of external and internal and coatings choices from the list above. Colours specified separately below.

Texture

Dependent on coating specified.

Colour

RAL, Matt.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, Satin Gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, High Gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, Structure.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, imitation anodized.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

NCS.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Special effects.

Guidance for specification option:

Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss.

Consult manufacturer for details and insert requirements.

Decoral (wood grain effect).

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Natural silver.

Guidance for specification option:

Anodized only.

Coloured anodized to Aluprof 'C' range.

Guidance for specification option:

Anodized only; insert colour requirements.

Brushed silver anodized.

Guidance for specification option:

Anodized only.

Heavy brushed silver anodized.

Guidance for specification option:

Anodized only.

Installation fasteners

Manufacturer's standard.

Frame accessories

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Door leaf

-

Thickness

95 mm.

Guidance for specification option:

Specify profile below ('Door leaf profile').

Core

Manufacturer's standard.

Material

Aluminium.

Perimeter seals

Manufacturer's standard.

Beading

-

Type

Internal.

Material

Aluminium.

Fixing

Manufacturer's standard.

Finish

-

Coating

Anodized by Aluprof to Qualanod standard, 25 µm film thickness.

Polyester powder coated by Aluprof to Qualicoat standard, 60 µm film thickness.

Polyester powder coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness.

Polyester powder coated by Aluprof to Qualideco standard, 60 µm film thickness.

Polyester powder coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness.

Bespoke.

Guidance for specification option:

Insert details of external and internal and coatings choices from the list above. Colours specified separately below.

Texture

Dependent on coating specified.

External colour

RAL, Matt.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, Satin Gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, High Gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, Structure.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, imitation anodized.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

NCS.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Special effects.

Guidance for specification option:

Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements.

Decoral (wood grain effect).

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Natural silver.

Guidance for specification option:

Anodized only.

Coloured anodized to Aluprof 'C' range.

Guidance for specification option:

Anodized only; insert colour requirements.

Brushed silver anodized.

Guidance for specification option:

Anodized only.

Heavy brushed silver anodized.

Guidance for specification option:

Anodized only.

Internal colour

RAL, Matt.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, Satin Gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, High Gloss.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, Structure.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

RAL, imitation anodized.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

NCS.

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Special effects.

Guidance for specification option:

Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements.

Decoral (wood grain effect).

Guidance for specification option:

Polyester powder coated coatings only; insert colour requirements.

Natural silver.

Guidance for specification option:

Anodized only.

Coloured anodized to Aluprof 'C' range.

Guidance for specification option:

Anodized only; insert colour requirements.

Brushed silver anodized.

Guidance for specification option:

Anodized only.

Heavy brushed silver anodized.

Guidance for specification option:

Anodized only.

Film thickness (minimum)

60 µm (PPC) or 25 µm (Anodized).

Guidance for specification option:

Dependent on coating specified.

Door accessories

Guidance for specification option:

Consult manufacturer for options and insert requirements or omit.

Hardware

Standard, silver.

Standard, white.

Standard, brown.

Standard, silver anodized.

Standard, RAL colour to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Enhanced Security (RC2), silver.

Enhanced Security (RC2), white.

Enhanced Security (RC2), brown.

Enhanced Security (RC2), silver anodized.

Enhanced Security (RC2), RAL colour to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Enhanced Security (RC3), silver.

Enhanced Security (RC3), white.

Enhanced Security (RC3), brown.

Enhanced Security (RC3), silver anodized.

Enhanced Security (RC3), RAL colour to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Accessories

Guidance for specification option:

Consult manufacturer for options and insert requirements or omit.

Execution

See Installation below.

Ironmongery

Single point locking.

Multipoint locking.

Emergency exit (EN 179).

Panic Escape (EN 1125).

Electric strike single point locking.

Show more

Hinges

Surface mounted hinges.

Barrel hinges.

Concealed hinges.

Environmental Product Declaration (EPD)

Cradle to Cradle.

Installation

The MB-104 door system specified above shall be fabricated and installed by Aluprof approved companies only, in complete accordance with the information and guidance distributed by Aluprof UK Ltd.

Sustainability data

Country of material origin

Poland

Country of product manufacture

United Kingdom

Guidance for specification option:

United Kingdom/ Poland.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

67.10 %

EPD

Third party certifications

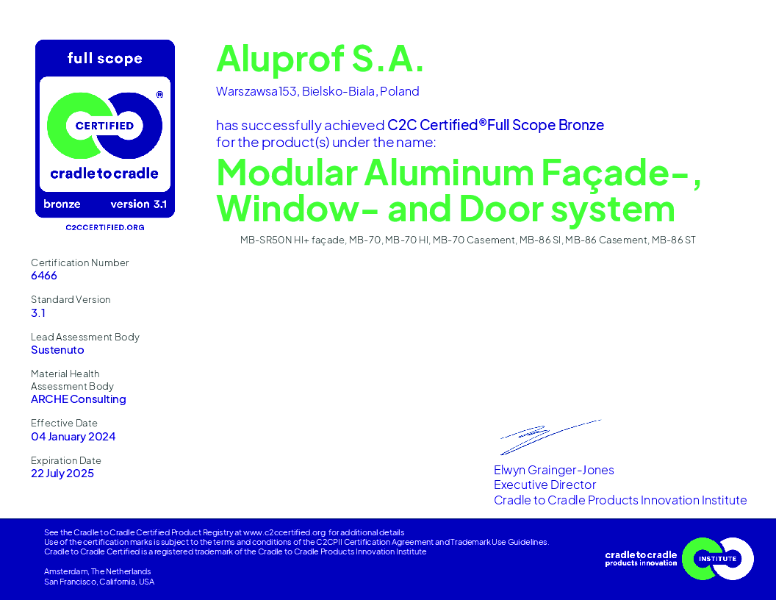

Cradle to Cradle Certified

Cradle to Cradle Certified

Cradle to Cradle Certified™ - Bronze

EPD

EPD

Aluprof Environmental Product Declaration to EN 15804 - Window & Door Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Aluprof ISO 14001 Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

Aluprof ISO 9001 Certificate

Passivhaus

Passivhaus

Aluprof MB-104 SI Door Passivhaus Certificate

Qualicoat approval

Qualicoat approval

Aluprof Qualicoat Certificate 2022

Literature

UK & Ireland Project Book - Aluminium Systems

UK & Ireland Project Book - Aluminium Systems

The rise of passivhaus

The rise of passivhaus

Project Specific & Bespoke Solutions

Project Specific & Bespoke Solutions

Company Brochure

Company Brochure

Aluprof Systems Overview

Aluprof Systems Overview

Architectural Product Guide

Architectural Product Guide

Cradle to Cradle Certified™ Bronze

Cradle to Cradle Certified™ Bronze

MB-104 Passive window & door system - Product information

MB-104 Passive window & door system - Product information

Case studies

GERA Building, Nottingham University - PASSIV HAUS CERTIFIED

GERA Building, Nottingham University - PASSIV HAUS CERTIFIED

Similar products from Aluprof UK

Aluprof MB-70 - Door System

Aluprof MB-70 - Door System

Aluprof MB-78EI - Fire Resistant Door System

Aluprof MB-78EI - Fire Resistant Door System

Aluprof MB-86 - Door System

Aluprof MB-86 - Door System
