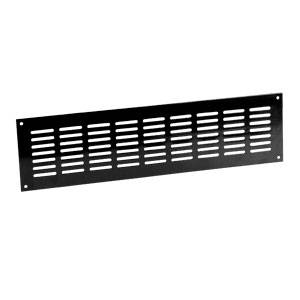

Aluminium Ventilation Grille 382
Description

Slotted-plate aluminium ventilator grille drilled for visible screw fixing to face of wall or panel.

  • Enables secure ventilation.
  • Choice of standard colours.
  • Choice of standard dimensions.
  • Faceplate overlaps wall opening.

General information

Uniclass 2015

Pr_30_59_96_93 Ventilation gratingsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/145 Wall lining system (metal studs)

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/175 Wall lining system (metal furrings)

K10/185 Wall lining system (adhesive)

K10/205 Lining on timber

K11/796 Metal stud partition system

K11/815 Plywood

K11/890 Board

K13/110 Wood panelling

K13/120 Wood-veneered panel lining

K13/140 Proprietary laminated plastics-veneered panel lining

K13/145 Proprietary plastics cladding

K13/150 Purpose-made

K13/160 Proprietary

K13/170 Acoustic panel lining

K20/230 Timber board

K20/30 Timber board

K21/150 Wood lining

K21/160 Wood lining on battens

K21/30 Wood lining on battens

K30/110 Relocatable partition system

K30/115 Relocatable partition/ Ceiling system

K30/130 Relocatable partition system

K30/135 Relocatable partition/ Ceiling system

K30/150 Plasterboard panel partitions

K30/160 Plasterboard laminated partitions

K32/140 Duct/ wall linings – panels only

K32/150 Duct/ wall linings – panels and proprietary frames

K32/160 Duct linings – preplumbed panels and proprietary frames

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/30 Wood doors

L20/430 Wood doorsets

P21/895 Door mounted air transfer grilles

U90/320 External air intake grilles

Specification data - Ventilation gratings

Product Reference

Aluminium Ventilation Grille 382

Plate dimensions

220 x 75 mm

Open area: 310 mm².

300 x 75 mm

Open area: 430 mm².

380 x 75 mm

Open area: 560 mm².

230 x 105 mm

Open area: 430 mm².

310 x 105 mm

Open area: 610 mm².

390 x 105 mm

Open area: 780 mm².

Finish (aluminium components)

Aluminium, anodized, natural

20 µ. Type E6/ C34 to DIN 17611.

Aluminium, polyester powder coated, RAL 8022 (dark brown)

60–80 µ.

Aluminium, polyester powder coated, RAL 9010 (white)

60–80 µ.

Standard product features

Material:

Aluminium alloy: AlMgSi 0.5 to DIN 1748.
