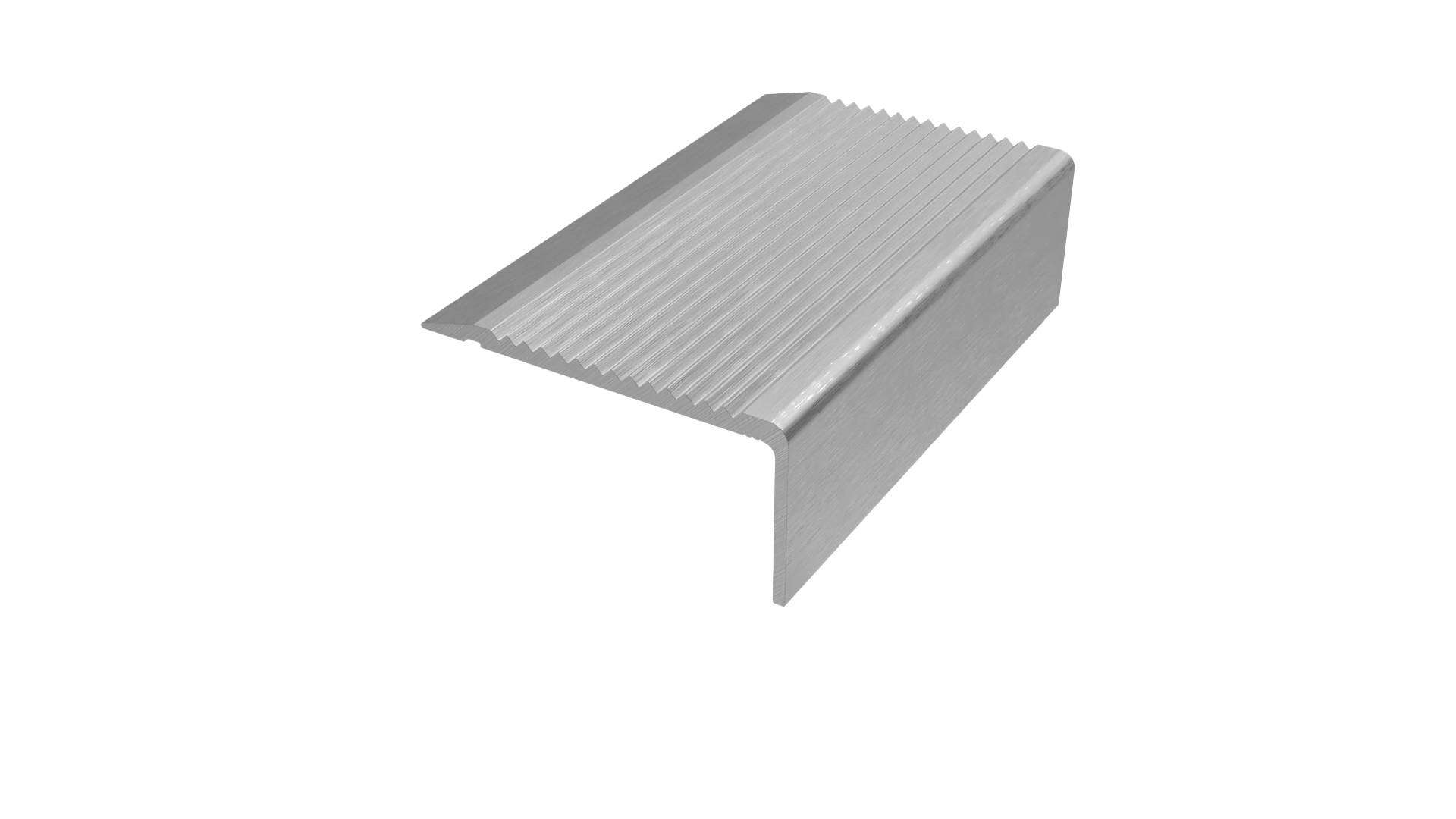

Aluminium Stair Nosings with Ribbed or Castellated Treads - Stair Edgings

Name: Aluminium Stair Nosings with Ribbed or Castellated Treads - Stair Edgings
Brand: CAT (Carpet Accessory Trims) Limited
SKU: vtQEQLo5ZLoyeRGDkyZ17S

Verified by manufacturer 3 months ago

AN1SLR

CAT (Carpet Accessory Trims) Limited

A range of solid aluminium stair nosings with ribbed or castellated treads.

Jump to:

Request BIM

+44 (0)1582 561500 Website

Application

AN1SLR: With bevelled back edge for retro fit onto steps.
AN1SLR-R: With bevelled back edge for retro fit onto rake back steps.

Description

A range of solid aluminium stair nosings with ribbed or castellated treads.

Features and benefits:

Can be cut to length up to the maximum stated.
Stair nosings can be supplied drilled countersunk or undrilled (to be specified when ordering).
A wide range of other stair nosings are available, specified separately.
AN4 is also available in a black anodized finish (specified separately).

General information

Color	Silver
Finish	Mill Satin Polished Anodized Guidance for specification option: Black, AN4 only.
Material	Aluminium Guidance for specification option: Base: Alloy 6063 T6.
Shape	Square Other
Length	2000 mm 2500 mm 3200 mm Bespoke

Uniclass	Pr_35_90_31_74 Rigid stair nosingsPrimary
CAWS	L30/30 Proprietary stairs L30/310 Proprietary stairs L30/590 Applied stair nosings M50/75 Stair nosings and trims M50/750 Stair nosings and trims M51/550 Stair nosings and trims

Product range	Aluminium Stair Nosings

Specification data - Rigid stair nosings

Classification data
Profile	Ribbed tread/ square front.
Base section	-
Material	Aluminium alloy 6063 T6.
Finish	Mill. Satin. Polished. Black anodized.
Size	-
Rise x going	30 x 62 mm.
Gauge	3.5 mm.
Installation	To be supplied pre-drilled and countersunk in the channel for concealed fixing and on-site retro fitting of the infill. To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive.
Length	3200 mm. Manufacturer guidance Maximum.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Aluminium Guidance for specification option: Base: Alloy 6063 T6.
Recyclability	100% recyclable at suitable disposal centres
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
