Compare variants
Summary

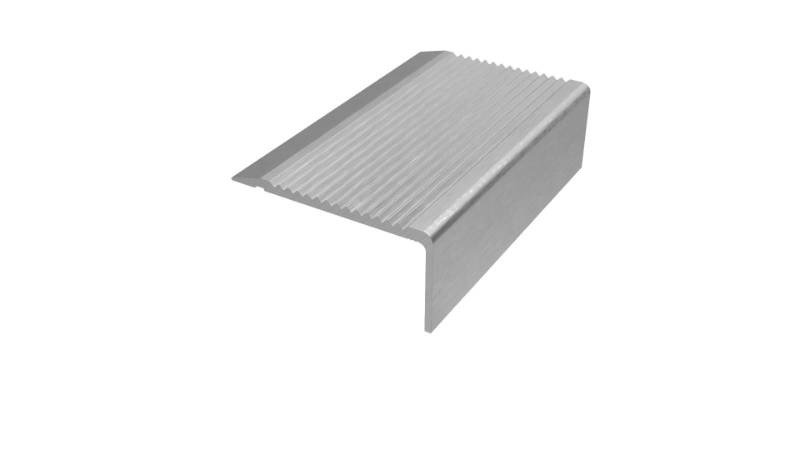

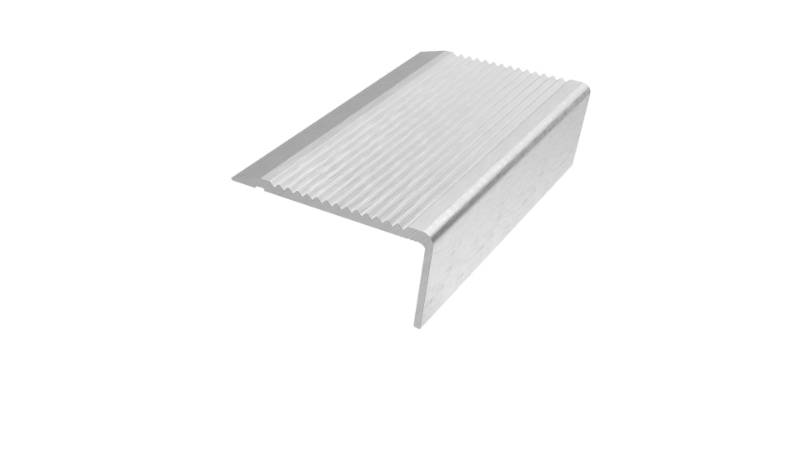

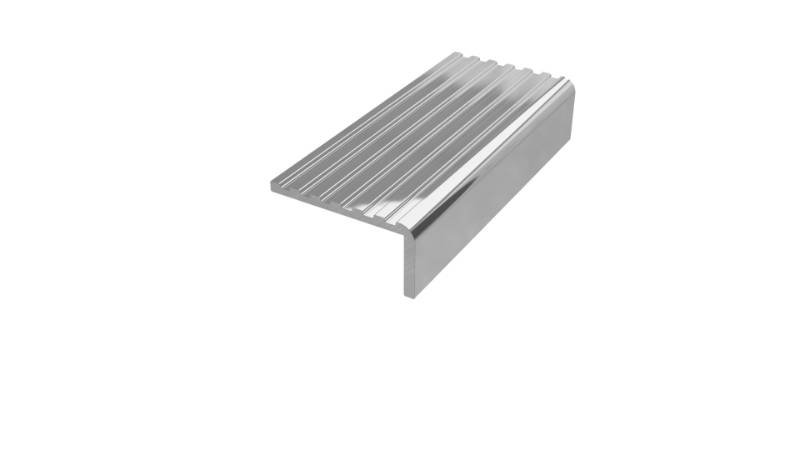

A range of solid aluminium stair nosings with ribbed or castellated treads.
A range of solid aluminium stair nosings with ribbed or castellated treads.
A range of solid aluminium stair nosings with ribbed or castellated treads.
Application
- AN1SLR: With bevelled back edge for retro fit onto steps.
- AN1SLR-R: With bevelled back edge for retro fit onto rake back steps.
- AN1SLR: With bevelled back edge for retro fit onto steps.
- AN1SLR-R: With bevelled back edge for retro fit onto rake back steps.
- AN1SLR: With bevelled back edge for retro fit onto steps.
- AN1SLR-R: With bevelled back edge for retro fit onto rake back steps.
Description
A range of solid aluminium stair nosings with ribbed or castellated treads.
Features and benefits:
- Can be cut to length up to the maximum stated.
- Stair nosings can be supplied drilled countersunk or undrilled (to be specified when ordering).
- A wide range of other stair nosings are available, specified separately.
- AN4 is also available in a black anodized finish (specified separately).
A range of solid aluminium stair nosings with ribbed or castellated treads.
Features and benefits:
- Can be cut to length up to the maximum stated.
- Stair nosings can be supplied drilled countersunk or undrilled (to be specified when ordering).
- A wide range of other stair nosings are available, specified separately.
- AN4 is also available in a black anodized finish (specified separately).
A range of solid aluminium stair nosings with ribbed or castellated treads.
Features and benefits:
- Can be cut to length up to the maximum stated.
- Stair nosings can be supplied drilled countersunk or undrilled (to be specified when ordering).
- A wide range of other stair nosings are available, specified separately.
- AN4 is also available in a black anodized finish (specified separately).
Color
Silver
Silver
Silver
Finish
Mill, Satin, Polished, Anodized
Mill, Satin, Polished, Anodized
Mill, Satin, Polished, Anodized
Material
Aluminium
Aluminium
Aluminium
Shape
Square, Other
Square, Other
Square, Other
Length
2000 mm, 2500 mm, 3200 mm, Bespoke
2000 mm, 2500 mm, 3200 mm, Bespoke
2000 mm, 2500 mm, 3200 mm, Bespoke
Specification
Classification data
Profile
Ribbed tread/ square front.
Ribbed tread/ raked front (83°).
Single channel/ square front.
Base section
-
-
-
Material
Aluminium alloy 6063 T6.
Aluminium alloy 6063 T6.
Aluminium alloy 6063 T6.
Finish
Mill., Satin., Polished., Black anodized.
Mill., Satin., Polished., Black anodized.
Mill., Satin., Polished., Anodized.
Size
-
-
-
Rise x going
30 x 62 mm.
30 x 62 mm.
35 x 62 mm.
Gauge
3.5 mm.
3.5 mm.
3.5 mm.
Additional properties
Installation
To be supplied pre-drilled and countersunk in the channel for concealed fixing and on-site retro fitting of the infill., To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive.
To be supplied pre-drilled and countersunk in the channel for concealed fixing and on-site retro fitting of the infill., To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive.
To be supplied pre-drilled and countersunk in the channel for concealed fixing and on-site retro fitting of the infill., To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive.
Length
3200 mm.
2500 mm.
2000 mm.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Europe
Europe
Europe
Country of product manufacture
United Kingdom
United Kingdom
United Kingdom
Material
Aluminium
Aluminium
Aluminium
Recyclability
100% recyclable at suitable disposal centres
100% recyclable at suitable disposal centres
100% recyclable at suitable disposal centres
Recycled content
100 %
100 %
100 %
