Aluminium Hoppers - Cast Handmade Hopper Heads
Verified by manufacturer 1 day ago

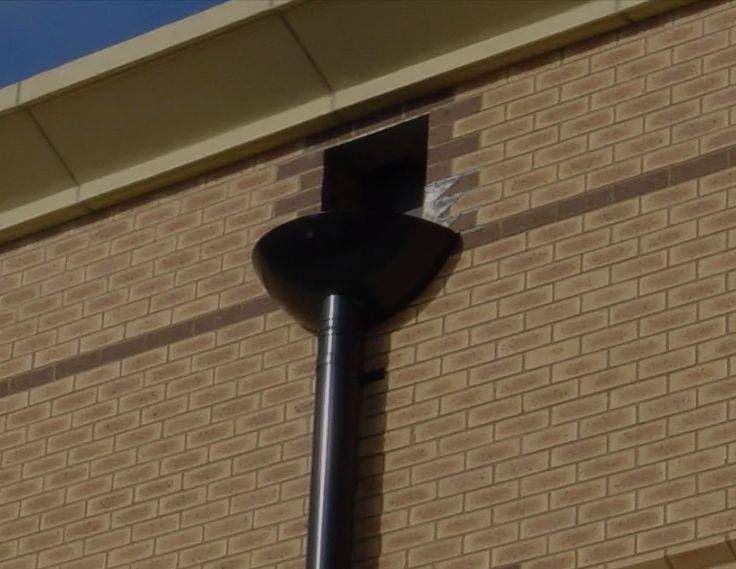

Bellvue hopper
Bellvue hopper
Warringtonfire
Certificate type
Cast handmade aluminium hopper heads are designed to work with aluminium rainwater systems that are cast, extruded, and formed.
Application
Hopper heads for external rainwater systems. Aluminium Hoppers.
Description
Cast handmade aluminium hopper heads designed to work with aluminium rainwater systems that are cast, extruded, and formed.
Features and benefits:
- Round, square, and rectangular downpipes are most often compatible with Guttermaster’s hopper heads.
- Large glamorous ornamental hopper heads are available as well as smaller, simpler designs.
- Many of the designs can incorporate embellishments and decorative motifs.
- All hopper heads can be ordered with a PPC (polyester powder-coating) in any RAL colour or with a natural mill finish.
General information
Color | Silver Other Beige Black Blue |
Finish | Powder-coated Mill Natural |
Material | Aluminium |
Shape | Circle Hexagon Elliptical Oval Square |
Length | 316 mm 279 mm 300 mm 493 mm 333 mm |
Width | 198 mm 196 mm 117 mm 278 mm 142 mm |
Height | 234 mm 229 mm 119 mm 335 mm 150 mm |
Warranty description | Other Manufacturer guidanceFinish warranty available and determined upon applicated based upon geographical location. |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Specification data - Aluminium rainwater pipes and fittings
Form | Cast.Guidance for specification option: Handmade. |
Section | Round.Guidance for specification option: Outlet only. |
Size (nominal) | DN 63.DN 75.DN 100.Manufacturer guidanceOutlet size only. |
Minimum thickness or gauge | Manufacturer's standard. |
Finish and colour | |
Finish | Polyester powder-coated to BS 6496.Guidance for specification option: Insert colour requirements below. Mill finish. |
Colour | RAL, colour.Guidance for specification option: Insert requirements (polyester powder coating only). BS 4800, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Syntha Pulvin, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Not applicable.Guidance for specification option: Mill finish only. |
Film thickness (minimum) | As Finish. |
Style | Bellvue. |
Details | Not required. Embellishments or motifs. Guidance for specification option: Many of the styles listed can incorporate these details; consult manufacturer for options and insert requirements. |
Dimensions | Manufacturer's standard. Guidance for specification option: Consult manufacturer's literature/ drawings for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 16 kg CO₂ eq/kg |
Recyclability | Potential 95% + recyclability |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |

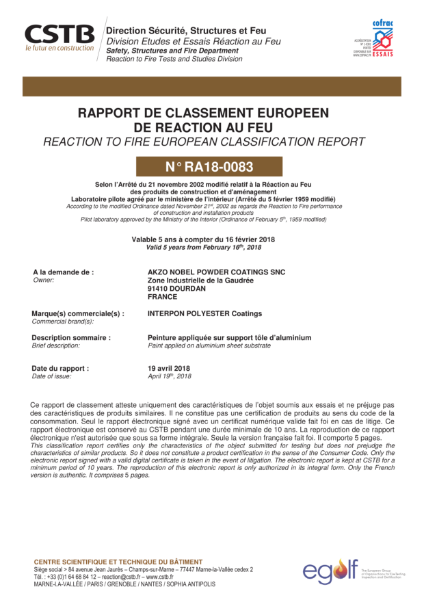

Third party certifications
Warringtonfire
UK Fire Test Results
Literature
Guttermaster Cast Hopper Collection
Case studies
Hemisphere
