Slimline Flush Joint Rainwater Pipes - Square/ Rectangular/Round
Verified by manufacturer 7 months ago
Ø63 mm flush joint rainwater pipe
Ø63 mm flush joint rainwater pipe
Warringtonfire
Certificate type
Range of square, rectangular, or round rainwater pipes using saddle clips or pipe clips to fix to the wall with no visible jointing.
Application
For use where no visible jointing is desirable. Slimline Flush Joint Rainwater Pipes
Description
Range of square, rectangular, or round rainwater pipes designed to fix to the wall with no visible jointing.
Features and benefits:
- Flush jointed, utilizing either saddle clips, fixed or adjustable pipe clips, or purpose-made brackets.
- Anti-vandal, heavy-duty aluminium extrusion will not crack or shatter.
- Clean external lines.
- Polyester powder-coated to outside surfaces in strict accordance with BS 6496.
- Colours available are standard RAL, BS 4800, or Syntha Pulvin reference.
General information
Color | Silver Other Beige Black Blue |
Finish | Powder-coated Anodized Textured Metallic Other |
Material | Aluminium |
Shape | Circle Square Rectangle Manufacturer guidanceCross section. |
Length | 3000 mm Bespoke |
Width | 63 mm Guidance for specification option: Diameter only. 75 mm Guidance for specification option: Diameter or width/ depth. 100 mm Guidance for specification option: Diameter or width/ depth. 150 mm Guidance for specification option: Diameter or width/ depth. 200 mm Guidance for specification option: Diameter or width/ depth. |
Height | Bespoke |
Warranty description | Other Manufacturer guidanceFinish warranty available and determined upon applicated based upon geographical location. |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Specification data - Aluminium rainwater pipes and fittings
Form | Extruded. |
Section | Round. |
Size (nominal) | DN 63. |
Minimum thickness or gauge | 2 mm.Guidance for specification option: As standard, to BS 2997. Also available in 2.5 and 3 mm thicknesses; consult manufacturer for details. |
Finish and colour | |
Finish | Polyester powder-coated to BS 6496.Guidance for specification option: Standard; insert colour requirements below. Anodized.Guidance for specification option: Insert colour requirements below. Heritage textured.Guidance for specification option: Insert colour requirements below. Metallic.Guidance for specification option: Insert colour requirements below. Special.Guidance for specification option: v |
Colour | RAL, colour.Guidance for specification option: Insert requirements (polyester powder coating only). BS 4800, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Syntha Pulvin, colour.Guidance for specification option: Insert requirements (polyester powder coating only). Other.Guidance for specification option: Insert requirements (all finishes). |
Film thickness (minimum) | Manufacturer's standard.Guidance for specification option: According to finish specified. |
Integral accessories | Guidance for specification option: Consult manufacturer for options and insert requirements. Manufacturer guidanceClips/ brackets specified separately below. |
Clips | Saddle clips. Guidance for specification option: Consult manufacturer for options and insert requirements. Fixed pipe clips. Adjustable pipe clips. Purpose-made brackets. Manufacturer guidanceTo suit pipe size. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 16 kg CO₂ eq/kg |
Recyclability | Potential 95% + recyclability |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Third party certifications
Warringtonfire
UK Fire Test Results
Literature

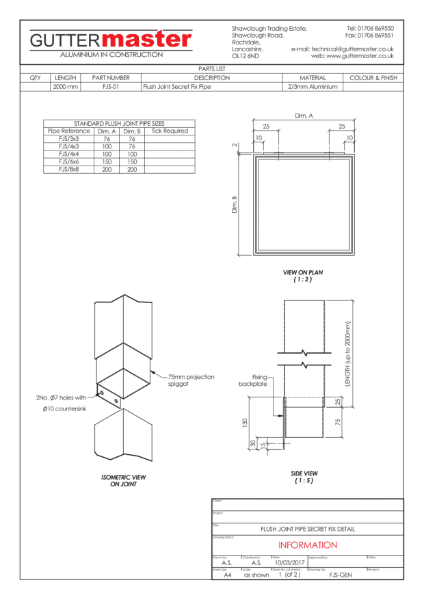

Flush Joint Pipe Detail
Case studies

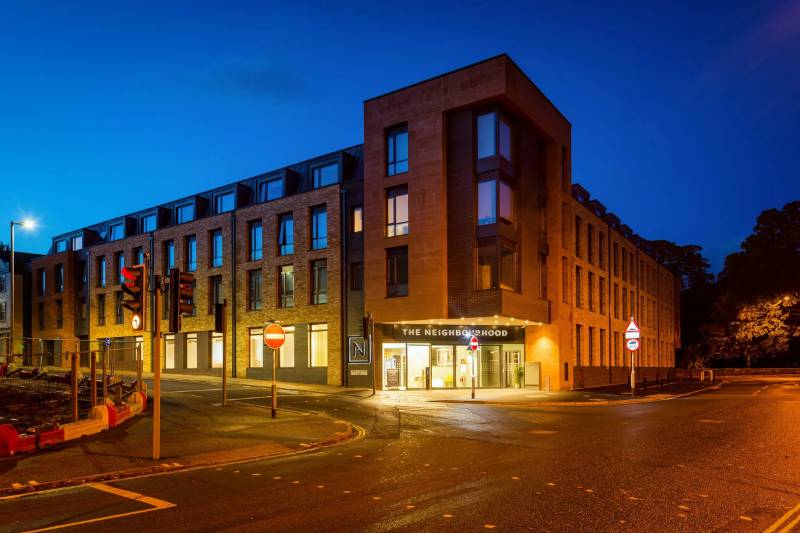

Quintana Gate
