Non-Combustible Rainscreen Cladding Euroclass A1 material with most Advanced ACM material technology - Non-combustible Cladding Panel

Verified by manufacturer 1 month ago

Metalspan by Inosus Facades Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • CWCT Certificate

    CWCT Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

Euroclass A1 non-combustible ACM cladding panel.

Jump to:
+44 (0)7305230116 Website

Application

The panels are particularly recommended for building projects where very high level of fire protection or the use of non-combustible façade materials is prescribed - for example high-rise buildings or special buildings such as schools, hospitals, shopping malls, Airports, public transport etc.

Description

Aluminium Composite Material (ACM) cladding solution, CWCT Certified for 4mm Pressure Equalized Back Ventilated

Rain Screen Panel System. A1 ACM Complies with the non-combustibility requirements of BS EN 13501-1 and tested to UK CWCT rain screen cladding test. This product has been tested US NFPA 285 Systems test to make sure it complies with the US market.


It provides high rigidity and is less susceptible to the material instability inherent in solid aluminium which causes oil canning and warping on the cladding surface.


The panel is lightweight and easy-to-use, thus minimizing installation and resource requirements. It is also available in a wide range of finishes to suit any design aesthetic.


The product incorporates seven major elements:

  • 100 µm Protective Film.
  • 5–7 µm Primer.
  • 0.50 mm top aluminium skin, chromate tested.
  • 30 µm adhesive made with DuPont resin manufactured in the USA.
  • 3 mm Euroclass A1 core with 4 mm Alucopanel® A1.
  • 30 µm adhesive.
  • 0.50 mm bottom aluminium skin chromate tested.
  • Back coat.
  • Material Weight 8.0 Kg/m2


A choice of coatings are available, including:

  • PDVF 2 coat (20 Year Warranty).
  • PDVF 3 coat (25 Year Warranty).
  • HDPE 2 coat (10 Year Warranty).
  • HDPE 3 coat (15 Year Warranty).
  • HDPE Wood Finish (20 Year Warranty)



Fire testing and certification:

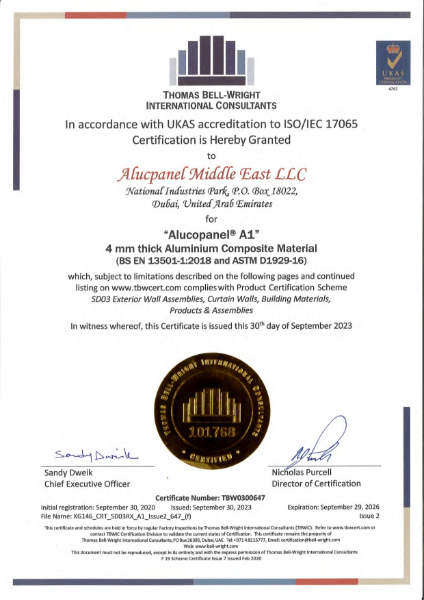

After successful results, Alucopanel® A1 received product certification no. TBW0300647 on the 30th September 2020 and external wall façade system certification no. TBW0300672 on the 17th December 2020.


Dubai Municipality Certification:

Technical Approval by Dubai Central Lab involve wholistic review of product compliance and manufacturing.

General information

Finish

PVdF

Other

Guidance for specification option:

HDPE.

Anodized

Woodgrain

Material

Aluminium

Shape

Rectangle

Square

Length

Bespoke

Guidance for specification option:

Up to 6000 mm.

Width

1000 mm

1250 mm

1500 mm

2000 mm

Height

Bespoke

Guidance for specification option:

Panel thickness

Warranty description

Ten year

15 year

20 year

25 year

Uniclass

Pr_25_71_14_05 Aluminium composite material (ACM) panelsPrimary

CAWS

H43/120 Metal insulating sandwich panel

Specification data - Aluminium composite material (ACM) panels

Panel construction

-

Aluminium skins

-

Alloy

3105-H16.

Thickness

0.50 mm.

Core

3 mm A1 core with 4 mm Alucopanel® A1.

Panel dimensions

-

Length

-

Manufacturer guidance

Bespoke: 6 m (maximum).

Width

1000 mm.

1250 mm.

1500 mm.

2000 mm.

Overall thickness

4.1 mm.

Finish as delivered

-

Outer skin

Metallic.

Solid.

Sparkling.

Wrinkle.

Inner skin

As outer skin.

Colour

APL S17 Pure Yellow – PVDF 2L.

Guidance for specification option:

Solid.

APL S18 Signal Red – HDPE 2L.

Guidance for specification option:

Solid.

APL S19 Sea Blue – PVDF 2L.

Guidance for specification option:

Solid.

APL S20 Dark Blue – PVDF 2L.

Guidance for specification option:

Solid.

APL S22 Rat Gray – PVDF 2L.

Guidance for specification option:

Solid.

APL S24 Natural Green – PVDF 2L.

Guidance for specification option:

Solid.

APL S25 Coconut White – PVDF 2L.

Guidance for specification option:

Solid.

APL S26 Apricot White – PVDF 2L.

Guidance for specification option:

Solid.

APL S27 Ivory White – PVDF 2L.

Guidance for specification option:

Solid.

APL S28 Pure White – PVDF 2L.

Guidance for specification option:

Solid.

APL S29 Signal White – HDPE 2L.

Guidance for specification option:

Solid.

APL S30 Coal Black – PVDF 2L.

Guidance for specification option:

Solid.

APL S37 Burgundy – PVDF 2L.

Guidance for specification option:

Solid.

APL S40 Azure Blue – PVDF 2L.

Guidance for specification option:

Solid.

APL S41 Pure Orange – HDPE 2L.

Guidance for specification option:

Solid.

APL S42 Purple Blue – PVDF 2L.

Guidance for specification option:

Solid.

APL S81 Coffee Brown – PVDF 2L.

Guidance for specification option:

Solid.

APL S1265 Enoc White 9010B – PVDF 2L.

Guidance for specification option:

Solid.

APL S3076 Ikea Blue – PVDF 4L.

Guidance for specification option:

Solid.

APL S5054 Enoc Green – HDPE 2L.

Guidance for specification option:

Solid.

APL S5239 Bone White – PVDF 2L.

Guidance for specification option:

Solid.

APL S5712 Shiny White – HDPE 2L.

Guidance for specification option:

Solid.

APL S5724 Clear White – PVDF 2L.

Guidance for specification option:

Solid.

APL S0339 Ikea Yellow – PVDF 3L.

Guidance for specification option:

Solid.

APL M01 Bright Silver – PVDF 2L.

Guidance for specification option:

Metallic.

APL M02 Champagne Gold – PVDF 2L.

Guidance for specification option:

Metallic.

APL M03 Metallic Brass – PVDF 2L.

Guidance for specification option:

Metallic.

APL M04 Matt Silver – PVDF 2L.

Guidance for specification option:

Metallic.

APL M06 Jade Metallic – PVDF 2L.

Guidance for specification option:

Metallic.

APL M07 Champagne Silver – PVDF 2L.

Guidance for specification option:

Metallic.

APL M08 Metallic Bronze – PVDF 2L.

Guidance for specification option:

Metallic.

APL M09 Metallic Gold – PVDF 2L.

Guidance for specification option:

Metallic.

APL M12 Desert Rose Metallic – PVDF 2L.

Guidance for specification option:

Metallic.

APL M13 Blue Metallic – PVDF 2L.

Guidance for specification option:

Metallic.

APL M21 Raw Grey – PVDF 2L.

Guidance for specification option:

Metallic.

APL M33 Smoke Silver – PVDF 2L.

Guidance for specification option:

Metallic.

APL M43 Metallic Black – PVDF 2L.

Guidance for specification option:

Metallic.

APL M2218 Copper Metallic – PVDF 2L.

Guidance for specification option:

Metallic.

APL M4367 Medium Bronze – PVDF 2L.

Guidance for specification option:

Metallic.

APL M4434 Bright Copper – PVDF 3L.

Guidance for specification option:

Metallic.

APL M0536 Metallic Grey – HDPE 3L.

Guidance for specification option:

Metallic.

APL M5576 Champagne Metallic – PVDF 2L.

Guidance for specification option:

Metallic.

APL M5604 Dark Bronze – PVDF 3L.

Guidance for specification option:

Metallic.

APL M6234 Dark Copper – PVDF 2L.

Guidance for specification option:

Metallic.

APL M7730 Bright Gold – PVDF 2L.

Guidance for specification option:

Metallic.

APL M70 Pearl White – HDPE 3L.

Guidance for specification option:

Sparkling.

APL M027 Dover White Sparkling – PVDF 3L.

Guidance for specification option:

Sparkling.

APL M245 Bronze Brown – PVDF 3L.

Guidance for specification option:

Sparkling.

APL M264/265 Lexus White – HDPE 3L.

Guidance for specification option:

Sparkling.

APL M749 Starry Night – HDPE 3L.

Guidance for specification option:

Sparkling.

APL MS123 Lamborghini Red – HDPE 3L.

Guidance for specification option:

Sparkling.

APL S2065 Concrete Light Grey – HDPE 2.

Guidance for specification option:

Wrinkle.

APL S2066 Natural Pyrite Silver – HDPE 2L.

Guidance for specification option:

Wrinkle.

APL S2068 Light Ivory – HDPE 2L.

Guidance for specification option:

Wrinkle.

APL S2083 Slate Grey – HDPE 2L.

Guidance for specification option:

Wrinkle.

APL S2204 Terracotta Orange Brown – HDPE 2L.

Guidance for specification option:

Wrinkle.

APL S2960 Wrinkle White – HDPE 2L.

Guidance for specification option:

Wrinkle.

Reaction to fire

-

Core

To EN 13501-1: A1 rated. NFPA 285: Pass.

TensileStrength

172.9 N/mm².

Elongation

9.23%.

ShearStrength

3.35 MPa.

Linear thermal expansion coefficient

≥ 2.4 mm/m/C°.

Thermal Conductivity:

0.129 W/m·K.

Coating thickness (minimum)

30 µm.

Abrasion resistance

56.0 L/mil.

Sustainability data

Country of material origin

United Arab Emirates

Country of product manufacture

United Arab Emirates

Recyclability

Fully recyclable

EPD

Third party certifications

BS EN 13501-1

BS EN 13501-1

Reaction to Fire Test for A1 ACM cladding material

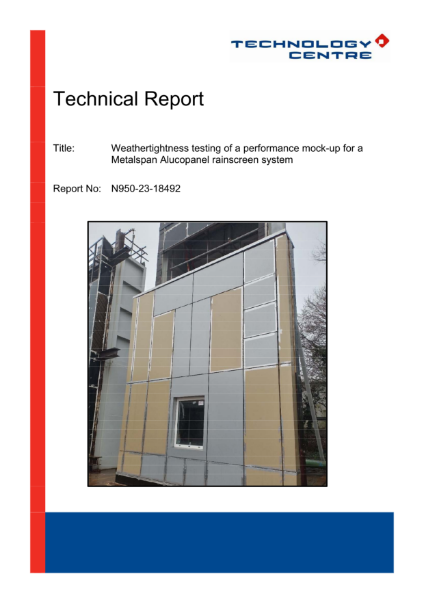

CWCT Certificate

CWCT Certificate

CWCT

EPD

EPD

Environmental Product Declaration

Literature

Exterior Wall System Test

Exterior Wall System Test

Metallic

Metallic

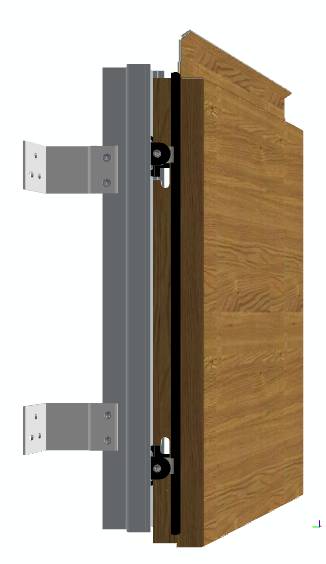

METALSPAN Wooden

METALSPAN Wooden

Solid

Solid

Sparkling Colors

Sparkling Colors

Wrinkle

Wrinkle

Euroclass A1 Non-Combustible - System Fire Test NFPA285  (USA) for Non Load-bearing ventilated Facades

Euroclass A1 Non-Combustible - System Fire Test NFPA285 (USA) for Non Load-bearing ventilated Facades

METALSPAN Technical Brochure

METALSPAN Technical Brochure

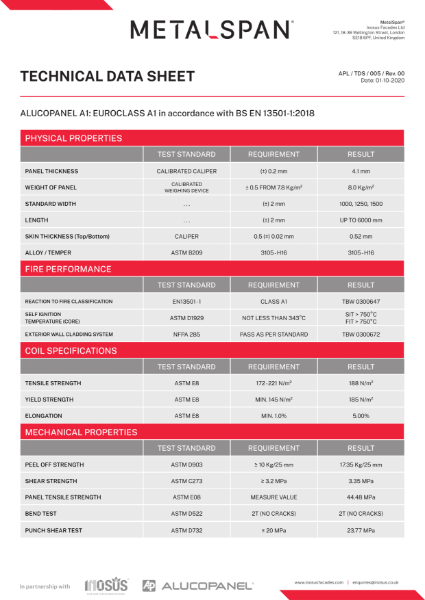

Data sheet

Data sheet
