Description

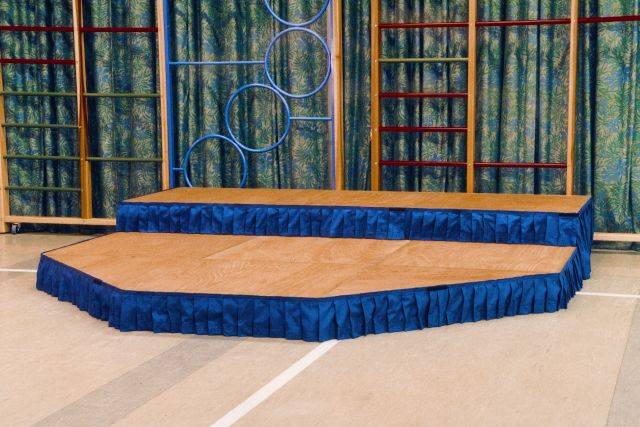

Designed for easy use in primary schools where heavy items such as pianos are not required on stage. It does retain the Alu Rapid features of compact storage and durability.

Lifetime warranty.

General information
Size

1000 x 1000 mm

Weight: 17 kg.

2000 x 1000 mm

Weight: 30 kg.

Material

Aluminium and timber

Uniclass 2015 Demountable podiums and staging (Pr_40_30_25_21)
Specification data
Product Reference

Alu Rapid Junior

Size

1000 x 1000 mm

Weight: 17 kg.

2000 x 1000 mm

Weight: 30 kg.

Floor surface

19 mm hardwood veneered blockboard, black stained

19 mm hardwood veneered blockboard, brown stained

19 mm hardwood veneered blockboard, clear lacquered

Carpet

Galvanized steel mesh

Hardwood

Karndean floor

Perspex

Vinyl

Waterproof anti-slip floor

Valance

Not required

Carpet

Curtain

Branding or logos also available, insert requirements.

Hardwood

Hardwood corner post

Laminate boarding

Branding or logos also available, insert requirements.

PVC curtain

Stained plywood

Frame height

80 mm

200 mm

400 mm

600 mm

800 mm

1000 mm

3000 mm

Accessories

Not required

Box section steps

Chair holding border

Fascias

Heavy duty handrail

Standard handrail

Standard infilled handrail

Step balustrade standard

Storage wheels

Studio curtain

System steps

Timber balustrade

Timber steps

Valance curtain

Standard product features

Material:

Aluminium and timber.

Leg size:

40 x 40 mm.

Storage:

Up to 20 high on top of each other on transport wheels i.e. 40m² of staging stored in 2 m² of floor area.

- Storage height:

80 mm.

Operation:

Aluminium legs are placed in the corner sockets and wing nuts tightened by hand. The leg is securely held in the corner by means of a sliding 'T' piece.

Design load:

250 kg/m² evenly distributed.

Product Options

Size:

Standard sizes of 1000 x 1000 mm or 2000 x 1000 mm available, however virtually any size available, consult manufacturer for details.

Frame height:

  • Standard sizes 200, 400, 600, 800 or 1000 mm.
  • Any height from 80–3000 mm available.

Accessories:

An extensive range of accessories are available, consult manufacturer for details and insert requirements.
