Description

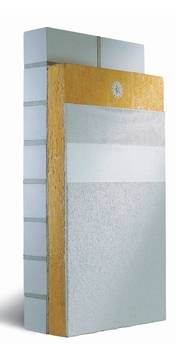

External wall insulation system incorporating mineral wool. It is a thin coat render system with high levels of flexibility, ideal where inconsistencies or irregularities in the substrate occur. This system is suitable for solid wall constructions, providing an easy to apply solution to effectively insulate the building.

Features/ Benefits:

  • Increased fire resistance.
  • Weather resistant.
  • Excellent weathering and durability.
  • Consistent finish.
  • Wide range of textures, colours and finishes.

General information
Specification data - Adhesive-fixed external wall insulation systems
Product Reference

Alsecco Ecomin 200

Sub primer

Sub Primer HT

Solvent-free synthetic-resin dispersion primer.

Sub Primer P

Synthetic-resin dispersion primer.

Insulation -
Type

Mineral Wool Dual Density

Mineral Wool High Density

Mineral Wool Lamella

Thickness

Insert requirement, available 20–200 mm.

Adhesive

Armatop MP

Bonding and reinforcing compound.

Thermastick FW

Adhesive for attaching external wall insulation boards to slab materials.

Mechanical fixings

Insert requirements, many options available dependent on individual application.

Reinforcement -
Type

Mesh 32

Detail mesh.

Panzer Mesh

To prepare highly impact-resistant reinforcing layers, for use with Mesh 32.

Basecoat

Armatop L

Mineral-based lightweight reinforcing mortar.

Armatop MP

Bonding and reinforcing compound.

Finish -
Primer

Top Primer P

Pigmented synthetic-resin bonded primer.

Top Primer SC

Pigmented filled primer.

Top Primer SI

Pigmented silicate bonded primer.

FinishType

Alsilite F

Silicate-based lightweight mineral plaster with a smooth finish.

Alsilite R

Silicate-based lightweight mineral plaster with a grooved finish.

Alsilite T

Silicate-based lightweight mineral plaster with a scraped finish.

Alsitect R

Decorative silicate plaster with a grooved finish.

Alsitect T

Decorative silicate plaster with a scraped finish.

Alsitop

Lightweight external wall render with a grooved finish.

Alsitop F

Lightweight external wall render with a smooth finish.

Alsitop T

Lightweight external wall render with a scraped finish.

Duratop A

Mineral-based plaster with a scraped finish.

Miratect R

Mineral-based decorative plaster with a grooved finish.

Miratect S

Mineral-based decorative plaster with a smooth finish.

Miratect T

Mineral-based decorative plaster with a scraped finish.

Orgatect F

Decorative synthetic-resin plaster with a smooth finish.

Orgatect R

Decorative synthetic-resin plaster with a grooved finish.

Orgatect T

Decorative synthetic-resin plaster with a scraped finish.

Silitect R

Decorative silicone-resin plaster with a grooved finish.

Silitect T

Decorative silicone-resin plaster with a scraped finish.

Silitect T Ice

Fast-setting silicone-resin decorative render with scraped finish.

Colour

Insert requirement, many options available, contact manufacturer for information.

Protective coating -
Paint

Not required

Alsicolor Carbon

Carbon-fibre reinforced silicone resin paint.

Alsicolor Finish

Acrylic-resin paint.

Alsicolor SC

Silicone-resin paint.

Colour

Insert requirement, many options available, contact manufacturer for information.

Accessories

None

Alsecco acrylic-based joint sealant

Alsecco aluminium profiles

Alsecco profile connectors and fixings

Alsecco PU foam

Alsecco PVC-U profiles

Alsecco sealing tape

Alsecco stainless steel profiles

Standard product features

Fire rating:

A2-s1, d0.

Thermal conductivity:

0.036–0.042 W/mK.

Product Options

Sub primer:

- Sub Primer HT:

  • Material: Acrylic-resin dispersion.
  • Colour: Opaque blue (transparent when dry).
  • Density: 1.00 g/cm³.
  • Drying time: 2–4 hours.

- Sub Primer P:

  • Material: Styrene acrylate dissolved in solvent.
  • Colour: Transparent.
  • Density: 0.82 g/cm³.

Insulation adhesive:

- Armatop MP:

  • Material: Cement-based, comprising limestone sand and additives.
  • Colour: Grey.
  • Density: 1.4 g/cm³.
  • Adhesive pull strength: ≥0.08 N/mm² (on polystyrene).
  • Capillary water absorption: w = <0.2 kg/(m²h^½).
  • Diffusion-equivalent air-layer thickness: sd = <0.1 m (at 2 mm).
  • Drying time: 1–3 days (approximate).

- Thermastick FW:

  • Material: Acrylate copolymer dispersion.
  • Colour: White.
  • Density: 1.65 g/cm³.
  • Drying time: 72 hours (approximate).

Reinforcement:

- Mesh 32:

  • Material: Multi-stranded alkali-resistant glass-fibres with a polymer coating.
  • Size: 4 x 4 mm.
  • Width: 1100 mm.
  • Weight: 160 g/m².
  • Colour: White.
  • Tensile strength: Longitudinal: 2000 N/50mm; Transverse: 2000 N/50mm.

- Panzer Mesh:

  • Size: 6 x 6 mm.
  • Width: 1000 mm.
  • Weight: 330 g/m².
  • Colour: White.
  • Tensile strength: Longitudinal: 3200 N/50mm; Transverse: 3500 N/50mm.

Armatop L:

  • Material: Mineral binders to DIN 1060 and DIN 1164.
  • Colour: Off white.
  • Density: 1.0 g/cm³.
  • Adhesive pull strength: ≥0.08 N/mm² (on polystyrene).
  • Capillary water absorption: w = <0.1 kg/(m²h^½).
  • Diffusion-equivalent air-layer thickness: sd = <2.0 m (at 5 mm).
  • Drying time: 1–3 days (approximate).

Finish primer:

- Top Primer P:

  • Material: Synthetic-resin dispersion.
  • Colour: Natural white.
  • Drying time: 2–6 hours (approximate).

- Top Primer SC:

  • Material: Acrylic-resin dispersion.
  • Colour: Natural white.
  • Drying time: 2–6 hours (approximate).
