Allface F1.10 aluminium support system

Verified by manufacturer 2 months ago

RCM - Roofing and Cladding Materials Ltd Third party certifications:
  • KIWA BDA

    KIWA BDA

    Certificate type

A visible fixing used for vertical fixing on solid walls.

Jump to:
+44 (0)800 6124662 Website

Application

Suitable for vertical fixings on solid walls.

Description

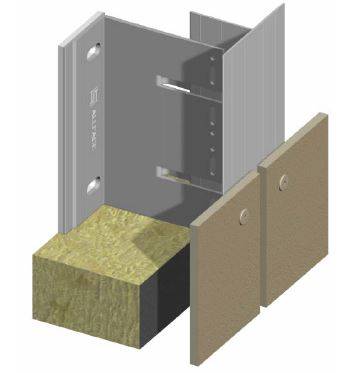

A wall bracket and visible fixing used for vertical fixing on solid walls.


Features and benefits:

  • Wind pressure is passed right to the building element – no tensile load on the dowel.
  • Each F1 can be used for a fixed point or a sliding point.
  • The F1+ is mainly used as an anchor point. It has high load bearing capacity due to its design with a height of 175 mm combined with two wall fixing points.
  • Dowel spacing of 125 mm for the F1+ makes it possible to fasten to a problematic subgrade.
  • Integrated clamp-slide provides 38 mm of adjusting for the L- or T-profiles. Made of aluminum EN-AW 6060 T66.

General information

Color

Grey

Material

Aluminium

Shape

Other

L-shaped.

Uniclass

Pr_20_85_20_04 Aluminium carrier railsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Aluminium carrier rails

Standards

EN-AW 6060 T66.

Colour

Grey.

Thermal break

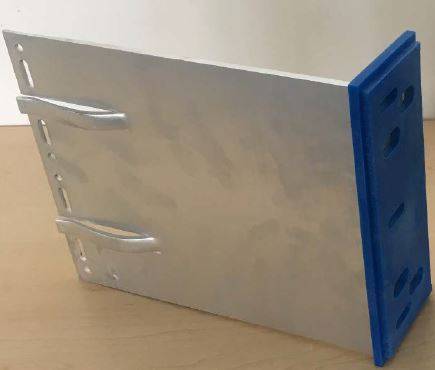

I.F1.CAM pre-assembled insulator suitable for bracket F1 dimensions: 71.2 x 97 x 5 mm material: PE.

I.F1.CNM single insulator suitable for bracket F1 dimensions: 71.2 x 97 x 5 mm material: PE.

I.F1.CAM AND I+F1.CAM stackable insulators to improve U-value and to compensate bumpy wall tolerances.

I.F1.CNM AND I+F1.CNM stackable insulators for self-installation.

I+F1.CAM pre-assembled insulator suitable for bracket F1+ dimensions: 71.2 x 182 x 5 mm material: PE.

I+F1.CAM pre-assembled insulator suitable for bracket F1+ dimensions: 71.2 x 182 x 5 mm material: PE. I+F1.CNM single insulator suitable for bracket F1+ dimensions: 71.2 x 182 x 5 mm material: PE.

Profiles

L.

T.

Third party certifications

KIWA BDA

KIWA BDA

BDA_AllFace_BAW-19-117-SA-A-UK
