All Urban - A1/ A4 Seat Collection - Outdoor Chairs and Benches

Verified by manufacturer 5 days ago

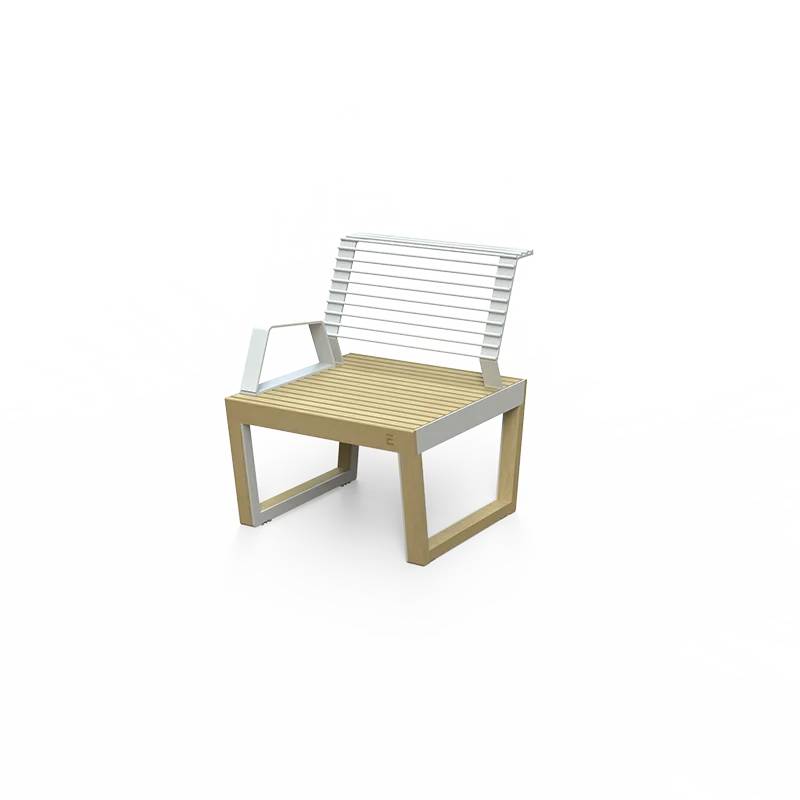

A1-151 - Armchair with Steel Backrest and Armrests

Create Partnerships Variant:

A collection of outdoor chairs and benches. The A4 range allows for curved shapes.

Jump to:
+44 (0) 114 282 3474 Website

Application

Suitable for outdoor applications.

Description

A collection of outdoor chairs and benches. The A4 range allows for curved shapes.

A1 Seat Collection: a collection of steel and wood outdoor chairs and benches that is characterised by a trapezoidal frame which reveals all seating elements when viewed from the side.

Features and benefits (A1):

  • Supporting steel frame sheathed with wooden beams.
  • The steel elements consists of a corrosion-protective zinc coating and a powder coating.
  • The collection also includes loungers, all complemented by bins and planters with octagonal cladding.
  • Displacement of the backrest from the edge to the centre.
  • Integration of electrical device with USB-A and USB-C connectors for charging mobile devices.
  • The base body can be equipped with a backrest or armrests.
  • Recognisable shape with numerous open angles.

A4 Seat Collection: a collection of seats featuring a steel structure with protective zinc coating and powder coating and solid wood boards.

Features and benefits (A4):

  • A sharply cut profile with an unmistakable look.
  • The lightness of the steel construction contrasts with the width of the wooden elements used.
  • The addition of the wooden slats to the front of the bench adds visual mass.
  • A solution for situations where the bench is to stand out and complete the space.
  • Available in an arched version.
  • The bench allows for a curved shape.
  • Solid wood can be natural or treated with teak oil.
  • The steel elements consists of a corrosion-protective zinc coating and a powder coating.

General information

Color

Cream

Beige

Yellow

Orange

Red

Show more

Finish

Treated

Powder-coated

Matt

Zinc plated

Natural

Material

Steel

Wood

Shape

Trapezoid

Length

600 mm

670 mm

973 mm

1265 mm

1270 mm

Show more

Width

696 mm

725 mm

763 mm

768 mm

840 mm

Show more

Height

765 mm

766 mm

788 mm

835 mm

840 mm

Uniclass

Pr_40_30_29_85 Street and site seatsPrimary
Pr_40_30_29_84 Street and site benches

CAWS

Q50/34 Seats

Q50/33 Benches

Q50/225 Seats

Q50/220 Benches

SKU Code

A1-151

Product range

All Urban

Specification data - Street and site seats

Classification data

Length

0.67 m.

Base

Anchored bases.

Material

Carbon steel.

Finish as delivered

Corrosion-protective zinc coating and powder-coated.

Colours

Guidance for specification option:

Colour in a fine matt texture.

Consult manufacturer for colour options and insert requirements.

Film thickness (minimum)

Coating applicator to determine.

Accessories

Armrests to each end.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

Manufacturer's standard.

Seat material

Solid wood.
Tropical wood.
European wood.

Finish

Natural.
Treated with teak oil.

Manufacturer guidance

Wood finish.

Height

835 mm.

Depth

725 mm.

Load capacity

200 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Steel
Wood

Recyclability

100% Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

Ten year

Literature

A1-151 - Data Sheet

A1-151 - Data Sheet

A1-251 - Data Sheet

A1-251 - Data Sheet

A1-301 - Data Sheet

A1-301 - Data Sheet

A1-4651 - Data Sheet

A1-4651 - Data Sheet

A4-1101 - Data Sheet

A4-1101 - Data Sheet

A4-1301 - Data Sheet

A4-1301 - Data Sheet

A4-1501 - Data Sheet

A4-1501 - Data Sheet

A4-1601 - Data Sheet

A4-1601 - Data Sheet

A4-2101 - Data Sheet

A4-2101 - Data Sheet

A4-2501 - Data Sheet

A4-2501 - Data Sheet

A4-2301 - Data Sheet

A4-2301 - Data Sheet

A4-2601 - Data Sheet

A4-2601 - Data Sheet
