Application

For use as a vertical absorber.

Description

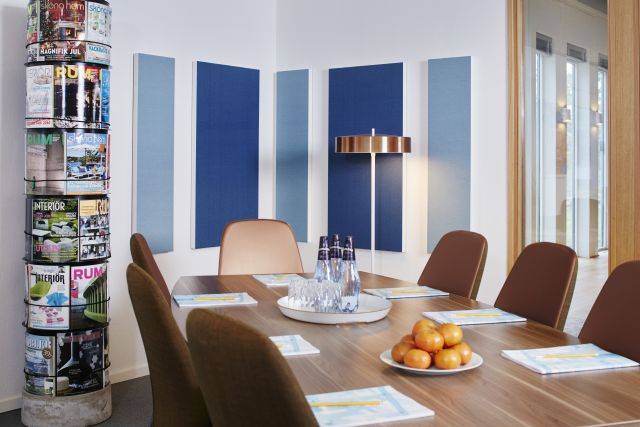

Installing Ecophon Akusto One on a wall increases sound absorption in a room. The system provides various design possibilities, working with different formats and colours to create a wide range of patterns.

There are three fixings for Akusto One: Connect™ One trim, Connect™ One hook fixing or Connect™ One fixing. The system is available in various sizes, with a weight of 2.0–4.5 kg/m².

Features and benefits:

  • The panel is manufactured from high-density glass wool.
  • The visible surface has a glass fibre, coloured fabric and is also available with a painted surface (Akutex™ FT).
  • The back of the panel is covered with glass tissue.
  • The edges are straight-cut and painted in white or grey.

Application:

For use as a vertical absorber.

General information
Finish

Three finishes available; painted, square edges

Features

Increases sound absorption in a room. The system provides various design possibilities, working with different formats and colours to create a wide range of patterns

Material

High-density glass wool

Shape

Dependent on variant specified

Size

Six sizes available

WarrantyDescription

Full warranty available upon request

Uniclass 2015
Acoustic panel lining systems (Ss_25_25_75_05)Primary
Specification data - Acoustic panel lining systems
Product Reference

Akusto Wall One

Battens

Galvanized steel or aluminium profiles

Acoustic insulation

In accordance with EN ISO 11654, Class A

Panelling -
Type

Individual panels

Surface material

Akutex FT™

Dirt-repellent coating, making the surface easier to clean.

Texona

Woven glass fibre with a smooth-textured surface.

Fasteners

Connect™ One Fixing, green

For circles only.

Connect™ One Fixing, light grey

For circles only.

Connect™ One Fixing, pink

For circles only.

Connect™One Fixing, red

For circles only.

Connect™ One Hook Fixing

Connect™ One Trim and Connect Absorber Anchor One

System accessories

Insert requirements.

Panel -
Panel size (l x w)

300 x 1200 mm

600 x 600 mm

600 x 1200 mm

600 mm diameter circle

800 mm diameter circle

1200 mm diameter circle

Thickness

40 mm

Colour/ Finish

Cloudy Day

Akutex FT™. Nearest NCS colour sample S 1500-N, 62% light reflectance.

Scallop Shells

Akutex FT™. Nearest NCS colour sample S 1515-Y80R.

Peach Rose

Akutex FT™. Nearest NCS colour sample S 1515-Y80R.

Goji Berry

Akutex FT™. Nearest NCS colour sample S 3030-Y80R.

Sage Garden

Akutex FT™. Nearest NCS colour sample S 3010-B30G.

Eucalyptus Leaf

Akutex FT™. Nearest NCS colour sample S 5010-B30G.

Summer Forest

Akutex FT™. Nearest NCS colour sample S 6030-G10Y.

Dark Diamond

Akutex FT™. Nearest NCS colour sample S 9000-N, 4% light reflectance.

Golden Field

Akutex FT™. Nearest NCS colour sample S 1040-G90Y, 61% light reflectance.

Highland Fog

Akutex FT™. Nearest NCS colour sample S 2005-G, 55% light reflectance.

Moonlight Sky

Akutex FT™. Nearest NCS colour sample S 7020-R90B, 7% light reflectance.

Morning Drizzle

Akutex FT™. Nearest NCS colour sample S 1002-B, 69% light reflectance.

Ocean Storm

Akutex FT™. Nearest NCS colour sample S 4020-R90B, 24% light reflectance.

Ruby Rock

Akutex FT™. Nearest NCS colour sample S 4050-R10B, 7% light reflectance.

Silent Steam

Akutex FT™. Nearest NCS colour sample S 2010-B, 45% light reflectance.

Silk Slate

Akutex FT™. Nearest NCS colour sample 7000-N, 13% light reflectance.

Silver Stone

Akutex FT™. Nearest NCS colour sample S 4502-Y, 29% light reflectance.

Sunset Heat

Akutex FT™. Nearest NCS colour sample S 2070-Y60R, 20% light reflectance.

Volcanic Ash

Akutex FT™. Nearest NCS colour sample 2002-Y, 56% light reflectance.

White Frost

Akutex FT™. Standard. White 500, Nearest NCS colour sample S 0500-N, 85% light reflectance (of which more than 99% is diffuse reflection). Retro reflection coefficient 63 mcd/(m2lx). Gloss <1.

Acai

Texona.

Cranberry

Texona.

Garlic

Texona.

Ginger

Texona.

Liquorice

Texona.

Menthol

Texona.

Mustard

Texona.

Oyster

Texona.

Pepper

Texona.

Poppy Seed

Texona.

Sea Salt

Texona.

Tangerine

Texona.

Thyme

Texona.

Edge colour

Grey

White

Weight

2–4.5 kg/m² (approximate, including Connect wall panel system)

Indoor climate

Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1

Moisture resistance

The tiles withstand a permanent ambient RH of up to 95% at 30°C without sagging, warping or delaminating (EN 13964)

Fire safety

Complies with BS EN 13501-1, Class A2-s1, d0

Cleaning

Daily dusting, vacuum cleaning and weekly wet-wiping (Super G and Akutex FT surfaces). Weekly dusting and vacuum cleaning (Texona surface) as required

Standard product features

Colour:

Wide range available.

Features:

Increases sound absorption in a room. The system provides various design possibilities, working with different formats and colours to create a wide range of patterns.

Finish:

Three finishes available; painted, square edges.

Material:

High-density glass wool.

Shape:

Dependent on variant specified.

Size:

Six sizes available.

Warranty description:

Full warranty available upon request.

Recycled content:

>57%.

Red Listed materials:

All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.

Country of origin:

Sweden, Finland or Poland.

Environmental information
Recycled content

>57%
