Aero Core Anti-Draught Ventilators
Verified by manufacturer 10 months ago
ACV7TE - 5" (127 mm) aero core with baffle, terracotta
ACV7TE - 5" (127 mm) aero core with baffle, terracotta
Combination ventilator sets for background venting and heat producing appliances.
Application
- To provide ventilation for heat producing appliances.
- To provide background room ventilation.
- Individual ventilation sets can supply up to maximum appliance rated input of 24.8 kW (84 600 Btu/h).
- Suitable for refurbishment, remedial work and new build.
Description

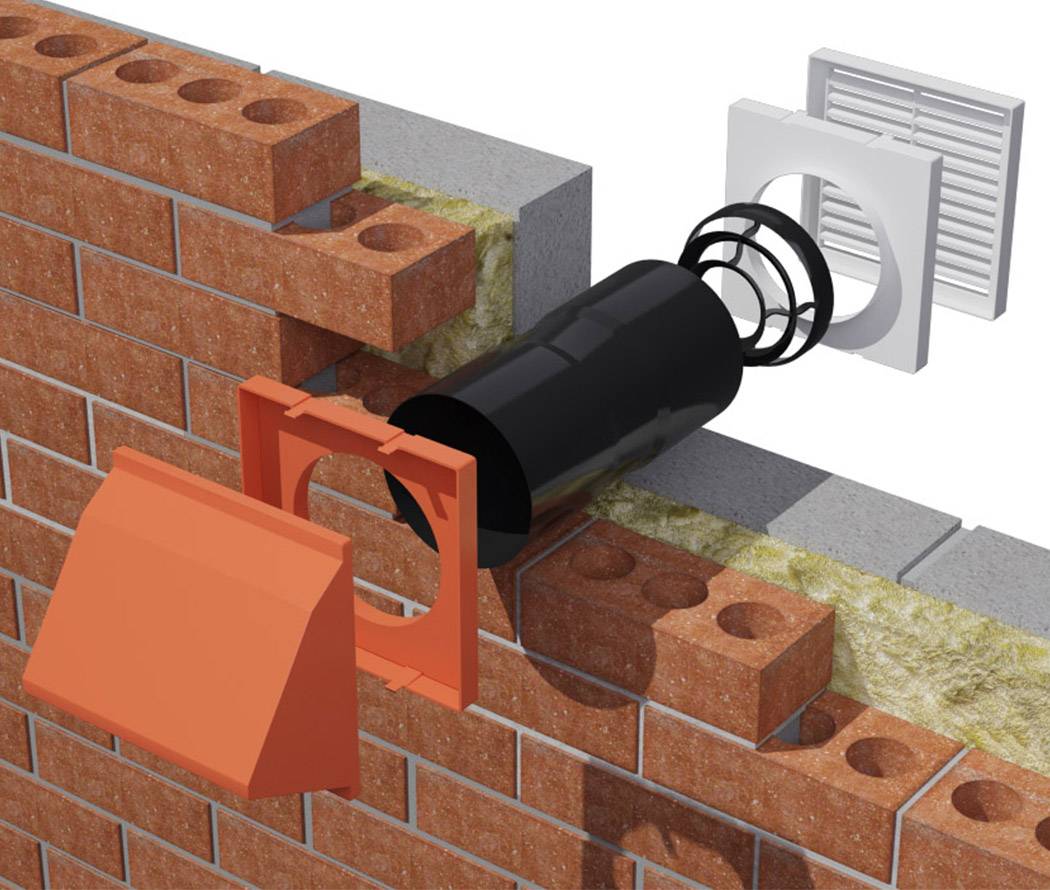

Combination ventilator sets for background venting and heat producing appliances.
Features and benefits:
- Aesthetically pleasing and a simple to install modular system.
- Excellent airflow properties.
- Independently tested.
- Offers reduction of draughts and light compared to basic through-wall ventilation.
- Cowl or grille version available with baffle.
- Internal finish with open louvre grille.
Quality:
- Equivalent area tested to BS 5440-2:2009.
- Compliant with BS 5871-3:2005 and BS 493:1995.
- Complies with Building Regulation Approved Documents F and J (2010 editions).
- Complies with ‘The Scottish Building Standards’ Technical handbooks.
- Manufactured to BS EN ISO 9001 and BS EN ISO 14001.
- Meets the requirements of British Gas.
- Satisfies NHBC Standards.
General information
Color | Brown Orange |
Length | 350 mm |
Width | 127 mm |
Height | 127 mm |
Uniclass | |
CAWS | F30/17 Ventilation ducts in external walling F30/171 Ventilation ducts in external walling |
SKU Code | ACV7BR, ACV7CBR, ACV7CTE, ACV7CWH, ACV7HRTE, ACV7TE |
Specification data - Ventilation ducts
Material | Plastics. |
Colour | Terracotta. |
Equivalent area | 8000 mm². Guidance for specification option: Size (diameter x length): 127 x 350 mm. Appliance rated input: 23 kW (78 500 Btu). |
Literature
Aero Core Anti-Draught Ventilators Datasheet
