AB: Angle Brackets

Verified by manufacturer 5 months ago

AB90

Simpson Strong-Tie Variant:

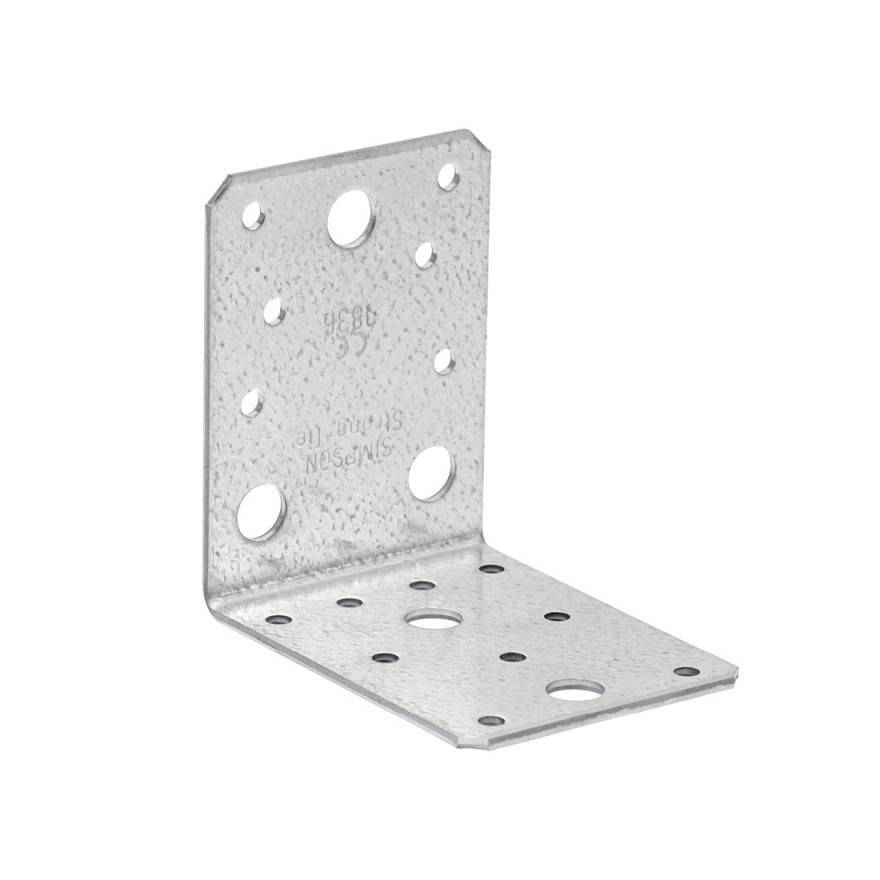

Steel angle brackets for wood assemblies.

Jump to:
01827 255 600 Website

Application

  • For indoor use.
  • Supporting members: solid wood, glued-laminated wood, concrete, steel, etc.
  • Supported members: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.
  • Fastening of small trusses.
  • Cladding plates, cladding uprights.
  • Rafter anchors, cantilevers, headers, etc.

Description

AB angle brackets are used for assemblies in supporting wood constructions. The connectors are used in wood-wood assemblies, wood-concrete assemblies, exchanges etc.


Features and benefits:

  • Galvanized steel S250GD + Z275 according to NF EN 10346.
  • Angle bracket for supporting constructions.
  • CE marked.

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Shape

Other

Length

65 mm

90 mm

Width

88 mm

103 mm

Height

88 mm

103 mm

Uniclass

Pr_20_29_03_31 Framing anchorsPrimary

CAWS

G20/45 Framing anchors

G20/580 Framing anchors

Specification data - Framing anchors

Material

Zinc coated carbon steel to BS EN 10346.

Guidance for specification option:

Galvanized steel S250GD + Z275 according to NF EN 10346.

Service class

2.

Fasteners

CNA annular ring-shank nails dia. 4.0 x 35 mm.

Guidance for specification option:

Wood.

CNA annular ring-shank nails dia. 4.0 x 50 mm.

Guidance for specification option:

Wood.

CSA screws dia. 5.0 x 35 mm.

Guidance for specification option:

Wood.

CSA screws dia. 5.0 x 40 mm.

Guidance for specification option:

Wood.

Bolts.

Guidance for specification option:

Wood or steel.

Show more

Dimensions

65 x 88 x 88 mm.

Literature

AB: Angle Brackets Technical Data Sheet

AB: Angle Brackets Technical Data Sheet
