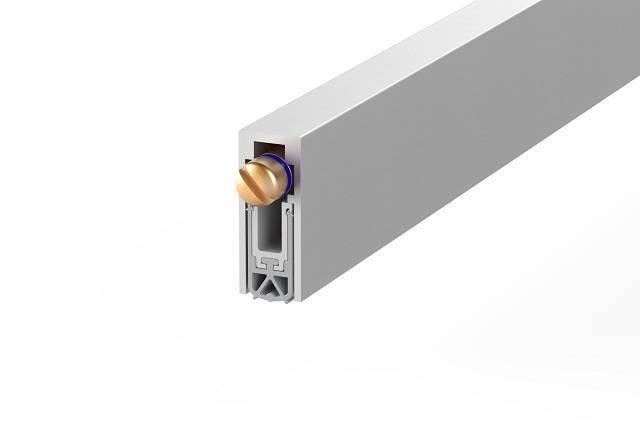

AAS8501 AURA® Drop Seal

Lorient Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

A self-levelling drop seal.

Jump to:
+44 (0)1626 834252 Website

Application

Suitable use for:

  • Single swing doors.
  • Right and left handed doors.

Description

A self-levelling drop seal featuring a unique wrap around gasket designed for optimum acoustic and smoke containment. A clever colour coded band assists with drop seal adjustment.


Features and benefits:

  • Tested in accordance with BS EN 1634-3 and BS 476–31.1.
  • Fixing holes pre-drilled, screws supplied. When aluminium carrier is fixed in place, gasket slide into carrier (with blades in/out) concealing fixings.

General information

Color

Silver

Finish

Anodized

Material

Aluminium

Silicone

Shape

Other

Length

Each length cuts back to next size down (335 mm cuts back to 255 mm).

335 mm

435 mm

535 mm

635 mm

735 mm

Show more

Width

14 mm

Height

35 mm

Uniclass

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood-panelled doors

L20/250 Wood-panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

P21/62 Weatherstrip to door head and jambs

P21/855 Weatherstrip to door head and jambs

P21/860 Door seals for

Specification data - Door and window weatherstrips and seals

Functions

Acoustic and smoke seals.

Size

Width x height x length.

14 x 35 x 335 mm.

14 x 35 x 435 mm.

14 x 35 x 535 mm.

14 x 35 x 635 mm.

14 x 35 x 735 mm.

14 x 35 x 835 mm.

14 x 35 x 935 mm.

14 x 35 x 1035 mm.

14 x 35 x 1135 mm.

Materials

-

Seals

Silicone.

Carriers

Anodized aluminium.

Colour

Silver.

Length

Each length cuts back to next size down (335 mm cuts back to 255 mm). Longer lengths available on request.

335 mm.

435 mm.

535 mm.

635 mm.

735 mm.

Show more

Acoustic performance

31 dB.

Weighted sound reduction index up to (Rw): 31 dB (AAS7501 and AAS8501 on a standard architectural door).

Literature

AURA Architectural Seals

AURA Architectural Seals

AURA architectural seals product range

AURA architectural seals product range

Case studies

University of Macau

University of Macau

Grand Lisboa Palace

Grand Lisboa Palace

Third party certifications

  • UL: Certificate: R27972 : Gasketing and Edge-sealing Materials for Fire Doors, Positive-pressure Tested
