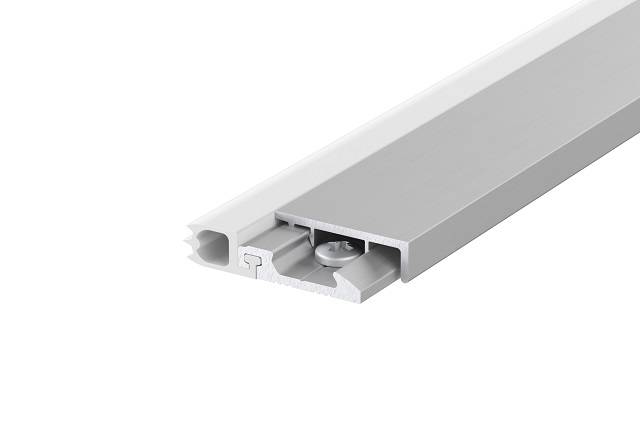

AAS7503 AURA® Perimeter Seal

Description

A stylish perimeter seal with square cover plate suitable for butt-jointing or mitring. Proven performance for acoustic and smoke containment.

The decorative cover plate completely conceals fixings and is available in a range of finishes.

Tested in accordance with BS EN 1634-3 and BS 476–31.1.

General information

Finish

Bronze anodized aluminium with black silicone gasket

Silver anodized aluminium with silver silicone gasket

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood panelled doors

L20/250 Wood panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

P21/62 Weatherstrip to door head and jambs

P21/855 Weatherstrip to door head and jambs

P21/860 Door seals for

Specification data - Door and window weatherstrips and seals

Product Reference

AAS7503 AURA® perimeter seal

6 x 30 mm.

Length

Single doorset pack consisting of 1 x 1000 mm and 1 x 2100 mm. Other lengths to special order, consult manufacturer for details.

Finish

Bronze anodized aluminium with black silicone gasket

Silver anodized aluminium with silver silicone gasket

Standard product features

Location:

Head and jambs of single swing doors.

Seal material:

Silicone.

Acoustic performance (BS EN ISO 10140-2):

Weighted sound reduction index up to (Rw): 31 dB (AAS7501 and AAS8501 on a standard architectural door).

Fixing:

  • Fixing holes pre-drilled and slotted for positional accuracy.
  • Wood screws supplied – please request self-tappers.

Product Options

Finish:

Decorative finishes available, consult manufacturer for details.

Third party certifications

  • Certificate: CF5179
  • UL: Certificate: R27972 : Gasketing and Edge-sealing Materials for Fire Doors, Positive-pressure Tested
