NBS Source

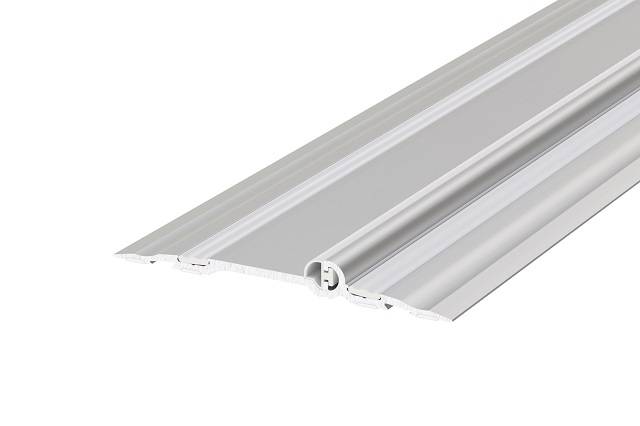

AAS4508 AURA® Threshold Plate

Application

Suitable for single swing doors.

Description

A stylish stepped threshold plate suitable for acoustics.


Featrues and benefits:

  • Acoustic containment is enhanced by the silicone gasket; and acoustic bedding pads reduce vibration and provide cushioning on uneven surfaces.
  • Fixing: Pre-drilled and countersunk. Fixing screws supplied. Tread strip supplied and push-fit into plate to conceal fixings.

General information

Color

Bronze

Silver

Finish

Decorative finish for threshold plate and different colour tread strips are available upon request. Consult manufacturer for details.


Anodized

Material

Aluminium

Size

7 x 125 x 1000 mm

7 x 125 x 2100 mm

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood-panelled doors

L20/250 Wood-panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/50 Wood door frames

L20/52 Wood door frames

L20/55 Doorsets

Specification data - Door and window weatherstrips and seals Enhanced data

Functions

Acoustic seals.

Size

7 x 125 mm.

Materials

-

Seals

Aluminium with two flexible tread strips.

Carriers

Anodized aluminium.

Colour

Bronze.

Silver.

Length

Single doorset pack consisting of 1 x 1000 mm and 1 x 2100 mm. Other lengths to special order, consult manufacturer for details.

Acoustic performance

To BS EN ISO 10142-2, 33 dB.

Weighted sound reduction index up to (Rw): 33 dB (AAS4508, LAS1212 and LP1504DS on a standard architectural door).

Third party certifications

  • UL: Certificate: R27972 : Gasketing and Edge-sealing Materials for Fire Doors, Positive-pressure Tested
