A Series Cycle Compound

A Series Cycle Compound

Marshalls plc

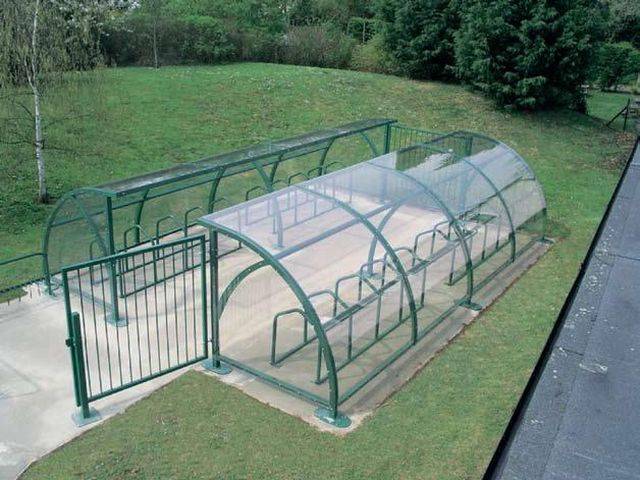

Modular cycle compound consisting of A Series cycle shelters with integral end panels and security gates, manufactured from structural grade carbon steel with curved roof.

Jump to:
+44 (0)330 0574472 www.marshalls.co.uk
Description

Marshalls A Series Cycle Compound consists of Marshall's A Series Cycle Shelters with the addition of end panels and security gates. The system is modular and can be specified in a number of different configurations. The main framework is constructed from structural grade carbon steel in a choice of finishes. Cladding options are Polyethylene Terephthalate (PET) or Plastisol, available in eight colourways.

Features:

  • Safety and security with all round visibility.
  • Can be fitted with cycle racks from the Marshall's range.
  • Hasp and staple provided.
  • Option of walkway cover to fully enclose the compound.

Marshall's Urban Structures can also provide bespoke cycle compounds to individual project requirements.

General information

Features

Safety and security with all round visibility

Can be fitted with cycle racks from the Marshall's range

Hasp and staple provided

Option of walkway cover to fully enclose the compound

Marshall's Urban Structures can also provide bespoke cycle compounds to individual project requirements

Uniclass 2015

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

B91/340 Cycle shelter

Specification data - Semi-closed shelters

Product Reference

A Series Cycle Compound

Type

SAT/COMP10

SAT/COMP20

SAT/COMP40

SAT/COMP60

SAT/COMP80

SAT/COMP100

SAT/COMP120

SAT/COMP140

SAT/COMP160

SAT/COMP180

Frame finish

-

Type

Galvanized

Galvanized and powder coated

Zinc rich primer and powder coated

Colour

Not required

BS 00 A 05

Light grey.

BS 04 E 53

Poppy red.

BS 14 C 39

Brown.

BS 14 C 39

Brown.

BS 18 B 25

Dark grey.

BS 18 E 53

Blue.

RAL 9005

Black.

RAL 9016

White.

Cladding

PET, Clear

PET, Opal

PET, Smoked grey

Plastisol, colour BS 00E55

White.

Plastisol, colour BS 04E53

Poppy red.

Plastisol, colour BS 08B29

Vandyke brown.

Plastisol, colour BS 10A05

Goosewing grey.

Plastisol, colour BS 12B21

Moorland green.

Plastisol, colour BS 18B25

Merlin grey.

Plastisol, colour BS 18E53

Solent blue.

Plastisol, colour RAL 6002

Heritage green.

Fixing

Base plate

Surface mounted

Standard product features

Height:

2100 mm.

Frame:

Structural grade carbon steel.

Product Options

Type:

  • SAT/COMP10 - 4000 mm long x 2300 mm wide: capacity 10 cycles.
  • SAT/COMP20 - 4000 mm long x 6000 mm wide: capacity 20 cycles.
  • SAT/COMP40 - 8000 mm long x 6000 mm wide: capacity 40 cycles.
  • SAT/COMP60 - 12000 mm long x 6000 mm wide: capacity 60 cycles.
  • SAT/COMP80 - 16000 mm long x 6000 mm wide: capacity 80 cycles.
  • SAT/COMP100 - 20000 mm long x 6000 mm wide: capacity 100 cycles.
  • SAT/COMP120 - 24000 mm long x 6000 mm wide: capacity 120 cycles.
  • SAT/COMP140 - 28000 mm long x 6000 mm wide: capacity 140 cycles.
  • SAT/COMP160 - 32000 mm long x 6000 mm wide: capacity 160 cycles.
  • SAT/COMP200 - 36000 mm long x 6000 mm wide: capacity 200 cycles.
