92 Range PICV
Verified by manufacturer 1 month ago
92VL ½”
92VL ½”
ISO 9001 Quality Management
Certificate type

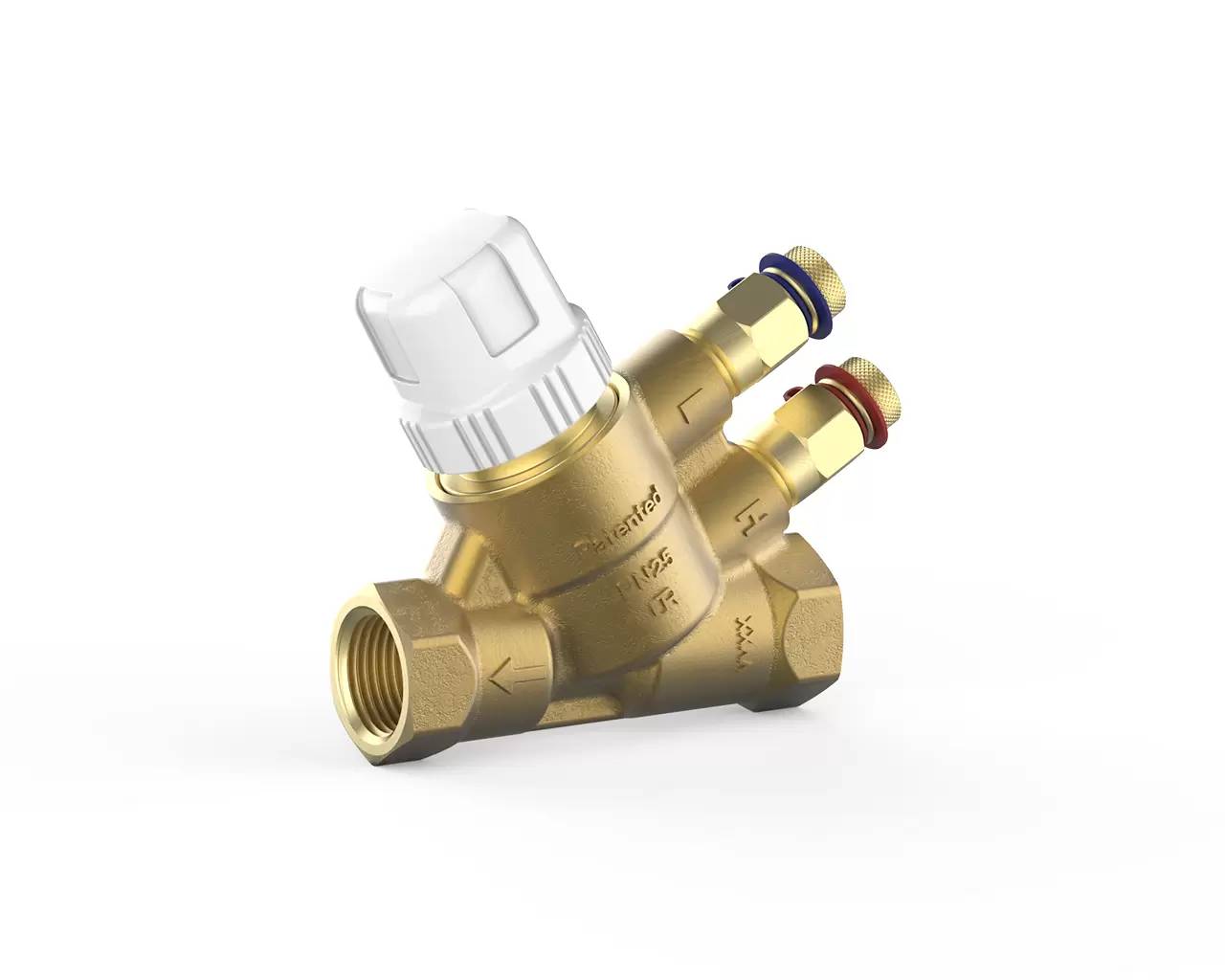

Dynasty pressure independent balancing and control valve with linear characteristic.
Application
Designed to provide flow limitation and temperature control of heating and chilled water systems to terminal units. The Dynasty valve provides good control of water to water heat exchangers and is ideal for use in Heat Interface Units were water quality is difficult to maintain, due to the difficulty in accessing every unit. The Dynasty valve can also be fitted
in valve assemblies to be connected to Fan Coil Units.
Description
The Dynasty range of PICV has been designed to give all the advantages of the existing PICV valve range with the added benefit of operating in heavily contaminated water. The valve has a Linear characteristic and it has also been designed to allow the internals to be removed, clean and replaced without effecting the performance of the valve.
Features and benefits:
- Compact size.
- Linear characteristic.
- Dirt free cartridge.
- Thermal actuators and electro mechanical actuators available.
- Easy maintenance.
- Minimum pressure required for start-up extremely low.
- Internal presetting.
- Accessible.
General information
Color | Yellow |
Finish | Brass |
Material | Polymer EPDM Brass Stainless steel Silicon |
Shape | Other |
Length | 80.5 mm 93.5 mm 98 mm 108 mm 119 mm |
Height | 83 mm 84.5 mm 88 mm 99 mm 107.5 mm |
Warranty description | Five year |
Uniclass | |
CAWS | S90/650 Flow-reducing/ servicing valves S90/650 Flow reducing/ servicing valves |
Specification data - Pressure-independent control valves
Pressure rating | 2500 kPa / 25 bar (maximum). |
Temperature range | -10–120°C. |
Material | Regulating valve: Hight performance polymer, stainless steel; Pre-setting knob: ABS and PC; Cartridge with diaphragm: Hight performance polymer,3 WMQ silicon, stainless steel, HNBR; Body: Corrosion resistant brass CW602N and O-rings: EPDM-x. |
Connections | Rp ½" F EN 10226-1. |
Actuator | A54202.Guidance for specification option: 230 V. 4 mm stroke. A54204.Guidance for specification option: 230 V. 4 mm stroke. A54402.Guidance for specification option: 24 V. 4 mm stroke. A54404Guidance for specification option: 24 V. 4 mm stroke. A55102.Guidance for specification option: 120 V. 5 mm stroke. A56102.Guidance for specification option: 120 V. 6.5 mm stroke. A56202.Guidance for specification option: 230 V. 6.5 mm stroke. A56402.Guidance for specification option: 24 V. 6.5 mm stroke. A544P3.Guidance for specification option: 0-10 V. 4 mm stroke. A564P3.Guidance for specification option: 0-10 V. 6.5 mm stroke. VA7481.VA7483.Guidance for specification option: 230 V. 6.3 mm stroke. VA7484.Guidance for specification option: 0-10 V. 6.3 mm stroke. VM060.Guidance for specification option: 0-10 V. 6.5 mm stroke. VM000.Guidance for specification option: 0-10 V. 6.5 mm stroke. RVAZ2. |
Flow rate (maximum) | 150 L/h, 0.042 L/s. |
CloseOffRating | 600 kPa, 6 bar. Guidance for specification option: Closed by electromechanical actuator. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Italy |
Country of product manufacture | Italy |
Material | Polymer EPDM Brass Stainless steel Silicon |
Manufacturing plant location | |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 2 kg CO₂ eq/unit Self declared |
Recyclability | Return to Manufacture or Recycle Locally |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
Expected Life | 15 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
ISO 9001 Quality Management
BSI 9001:2015
Literature
Pettinaroli PICV 92 Dynasty Range Sales Brochure
Definitive Guide to PICV
Pettinaroli PICV 92 Series Vortex Terminal Unit Valve Set Solution
Pettinaroli Sustainability Report
Pettinaroli Group Profile
Pettinaroli Data sheet for 92 Series PICV DN15 to DN50 (14,000 L/h max)
Case studies
The Distiller's Dublin
