83° Stair nosing / stair edging for resilient flooring (2 To 3.5 mm floorcoverings) - QR-SR1
QRu-SF1
QRu-SF1

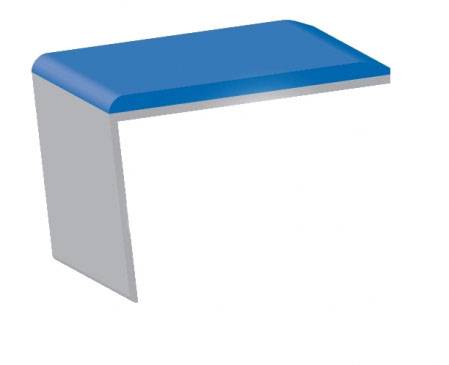

A slenderline gauge all over tread rake back stair nosing.
Application
- Suitable for use on stairs with vinyl or laminate floorcoverings.
- Suitable for installation in all categories of public and commercial buildings.
Description
Range of PVC-U stair nosings.
Free site surveys are available; contact the manufacturer for details.
Features and benefits:
- Manufactured in Britain.
- Available in straight or raked back profiles.
- Riser and tread can be in the same colour, a principal guideline from the Building Regulations and BS 8300:2:2018 which state that there should be a clear contrast on the nose of steps on stairways in areas of public access.
- All over tread provides a slip resistant surface from the nose to the back edge, providing extra safety when ascending or descending stairs.
- No dirt traps, easy to clean.
- Third party certification: ISO 9001. ISO 14001.
- Independently tested by Grip Potential Ltd.
- All products are available in a variety of stock lengths and packing; see manufacturer's literature for details.
Related products (to be specified separately):
- Stair Edging Side Trims.
- Landing and Stairway Tactiles.
General information

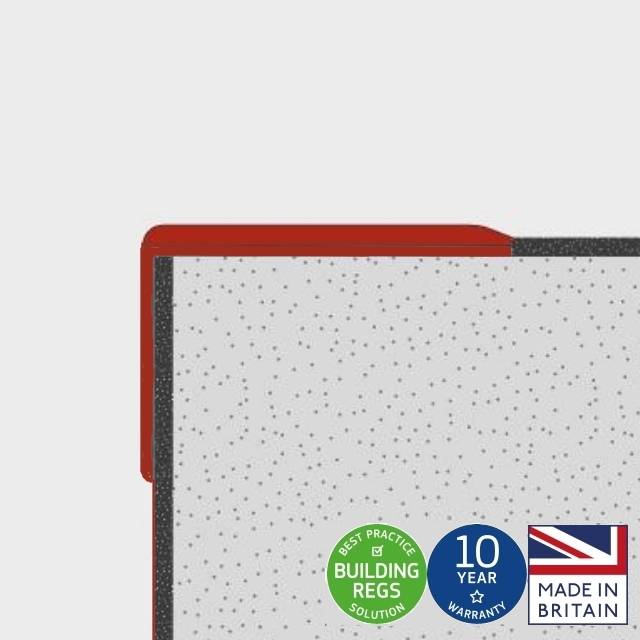

Shape83° L shaped profile. | Other |
Color | Black Blue Grey Red Brown |
FinishAs per manufacturer and includes etched. | - |
Material | Aluminium PVC-U |
WarrantyDescription | Ten year On project application. |
Size | 35 x 55 x 2 mm |
Uniclass | |
CAWS | L30/30 Proprietary stairs L30/310 Proprietary stairs L30/590 Applied stair nosings M50/75 Stair nosings and trims M50/750 Stair nosings and trims M51/550 Stair nosings and trims |
Product range |
Specification data - Rigid stair nosings Enhanced data
Profile | Flat front. |
Base section | - |
Material | Aluminium.PVC-U. |
Finish | Etched. |
Size | - |
Rise x going | 39 x 55 mm. |
Gauge | 2 mm. |
Light reflectance value (LRV)/ Colour | 6 Black. 6 Claret. 10 Rustic. 10 Peat. 11 Dark Blue. |
Fixing | Mechanical (screw) and adhesive fix, secret fix, without pips. Mechanical (screw) and adhesive fix, with pips. Q-Fix (adhesive only). Ten-year project warranty available, consult manufacturer for details. |
Third-party certification | Groundworks Green Business Certificate. |
Slip resistance value | To BS 7976-2, 60 dry, 36 wet. All tread options have a minimum PTV of 36+ in a wet test and 60+ in a dry test; this is considered ‘Low Slip Potential’. |
Environmental information
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | IFC2X3 | 4 | 1.3 |
 Revit | Revit 2016 | 5 | 2.0 |
 AECOsim | - | 1.0 | 1.0 |
 ARCHICAD | - | 1.0 | 1.0 |
 Vectorworks | - | 1.0 | 1.0 |
Literature
Flooring Accessories & Access Solutions Specification Guide 2020
Stair Nosings (Stair Edgings) and Flooring Trims Colours (with LRV)
Q-Range PVC Stair Nosings - Stair Edging (0mm to 8mm Floorcovering) Product Data Sheet
