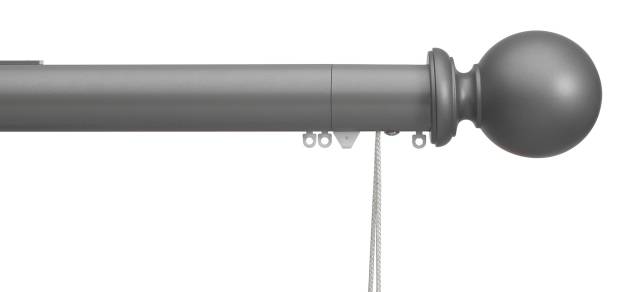

Cord operated curtain pole system for domestic and contract applications.
Metropole cord operated curtain pole system is designed for medium to heavy curtains.
Features:
Features | Nine different finishes 2C glider Matching endsets and brackets Can be bent for bay windows etc Easy fitting to wall or ceiling with adjustable brackets |
Uniclass 2015 | |
CAWS | N10/230 Curtain supports |
Product Reference | 6160M Metropole Cord Operated Curtain Pole System |
Colour | WhiteMatt whiteEcruSlate greyAntique bronzeSilverAnodic greyTaupeBlack |
Dimensions | As drawing ___As schedule ___ |
Optional accessories | Not requiredFinial - Ball end Ref 0717Finial - Spear Ref 0718Finial - Fused ball Ref 0327Finial - Fused barrel Ref 0315Finial - Glass ball Ref 0333Finial - Strata Ref 0697Finial - Groove cylinder Ref 0630Finial - Stud endcap Ref 0714Finial - Crystal cube Ref 0898Finial - Crystal cylinder Ref 0899Wave curtain tape Ref 6349Wave top hemming tape Ref 6363Wave extension arm Ref 6364Wave hanger Ref 6365Wave carrier draw rod Ref 6366Wave lead weight Ref 10075Wave fabric weight Ref 10076Wave roller glider Ref 6099 |
Fixings | Inserts Ref 6141Screws Ref 0798Single ceiling support Ref 6138P3 mm depth. Single ceiling support Ref 6138P29 mm depth. Single ceiling support Ref 6138P36 mm depth. Top fixing with bracket Ref 033530 mm clearance from ceiling. Wall fixing with adjustable Smart Fix bracket Ref 1120980-100 mm projection to centre of pole. Wall fixing with max adjustable bracket Ref 033480-100 mm projection to centre of pole. Wall fix with Pillar bracket Ref 067490 mm projection to centre of pole. Wall fixing Smart Fix brackets Ref 1120633-51 mm projection to centre of pole. Wall fixing Smart Fix brackets Ref 1120753-71 mm projection to centre of pole. Wall fixing Smart Fix brackets Ref 1120873-91 mm projection to centre of pole. Wall fixing Square Smart Fix brackets Ref 1120633-51 mm projection to centre of pole. Wall fixing Square Smart Fix brackets Ref 1120753-71 mm projection to centre of pole. Wall fixing Square Smart Fix brackets Ref 1120873-91 mm projection to centre of pole. |
Standard product features | Channel and size (h x w): 0701: 47 x 50 mm. |
Product Options | System dimensions and weights: Consult manufacturer's technical information and charts. |
