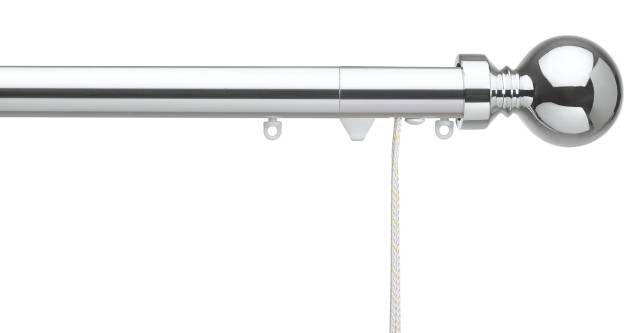

6120M Metropole Curtain Pole System

Application

Designed for medium to heavy curtains in domestic and contract applications.

Description

Acord operated curtain pole.


Features:

  • Pole can be angle bent to 450 mm radius (minimum).
  • 2C glider.
  • Brackets are to be positioned at maximum 1000 mm centres.
  • Can be wall or ceiling fixed.
  • Supplied as standard with endcaps.
  • A range of decorative finials are available.
  • Compatible with Silent Gliss Wave Curtain Heading system.

General information

Material

Aluminium

Uniclass 2015

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Specification data - Window curtain supports Enhanced data

Support

Curtain poles.

Overall length

Maximum pole length.

6000 mm.

(4000 mm to chrome version).

Material

Aluminium.

Finish

Extruded aluminium profile with channels top and bottom.

Colour

White.

Matt white.

Ecru.

Taupe.

Sand.

Ochre.

Antique bronze.

Bronze.

Anodic grey.

Chrome effect.

Slate grey.

Gunmetal.

Charcoal.

Black.

Integral accessories

Finials attach to end of poles.

(See optional accessories). Brackets are colour matched to pole.

Execution

Installing curtain supports.

Product Reference

Metropole 6120 Curtain Pole System

Dimensions

As drawing.

As schedule.

Fixing

Inserts (Ref 6141).

Screws (Ref 0798).

Single ceiling support (Ref 6138P).

3 mm depth.

Single ceiling support (Ref 6138P2).

9 mm depth.

Single ceiling support (Ref 6138P3).

6 mm depth.

Show more

Standard accessories

Cord (Ref 3091).

Gliders (Ref 11300).

Supplied as Ref 11301: Strip of 20.

Overlap arm (Ref 6063).

Pulley set complete with pilot runners (Ref 6119).

Twist eye endstop (Ref 6065).

Show more

Other accessories

Not required.

Finial - Fused barrel (Ref 0311).

Finial - Fused ball (Ref 0324).

Finial - Glass ball (Ref 0331).

Finial - Ball end (Ref 0556).

Show more

Diameter

30 mm.

Depth

Overall depth.

27 mm.

Fixing:

Fix wall brackets at maximum 1000 mm centres, with end brackets 70 mm from ends of pole.

Fix top of curtain pole to brackets with inserts and screws.
