Description

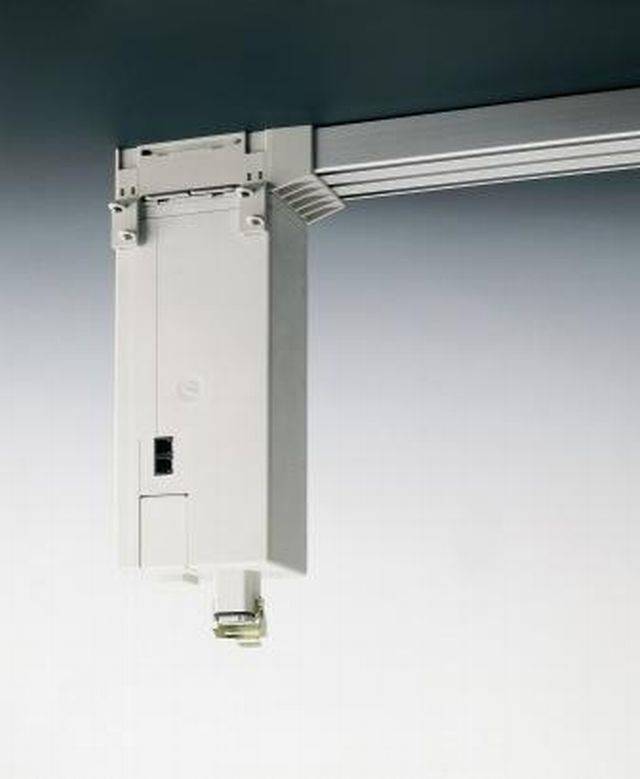

5300 Electric Curtain Track System is a wall or ceiling mounted, three channel track for medium to heavy weight curtains, designed for commercial and professional use.

Components:

  • Track Ref 5301.
  • Motor type AA Ref 5360.
  • Infra-Red Remote Control System Ref 5760.

Features:

  • Can be bent to 500 mm radius (minimum).
  • For curtains up to 74 kg in weight.
  • Stacking: Multiple and asymmetric applications.
  • Unlimited overlapping of the curtains is possible without the need for an overlap arm.
  • Motor can be hidden by curtain or can be positioned above track profile in suspended ceilings.
  • Curtain travel speed: 300 mm/ second.

Switch control:

All electric controlled systems can be controlled by a white plastic wall mounted switch. When using fixed switches only, where more than the switch is needed to operate systems individually, the low voltage control facility on the motor itself should be used to provide easier, safer and more economic installations.

Infra-red control:

15 systems can be addressed with one transmitter and sensor (one receiver module is required for each system). Each system can be addressed individually or simultaneously. Motor can be equipped with infra-red operating facility after installation, and can be combined with fixed wall switch operation. Low cost, low voltage cable linkage from motor to motor saves wiring costs and is invaluable for linking into audio visual systems.

Components:

  • Transmitter set Ref 5793: Comprising: Hand-held transmitter Ref 5787, Infra-red eye sensor Ref 5789, Receiver Ref 5788, Connecting flat cable Ref 5779 and Modular plug, Ref 5778.
  • Wall mounted switch: Optional additional control.

Features:

  • Maximum cable length: 100 metres (for more than 20 metres, one amplifier 5774 per motor is required).
  • Micro-processor controlled electronics: Motors can be wired in parallel.
  • Motors are available in UK (239V/ 50 Hz) and export (115V/ 60 Hz) versions.

General information
Features

Can be bent to 500 mm radius (minimum)

For curtains up to 74 kg in weight

Stacking: Multiple and asymmetric applications

Unlimited overlapping of the curtains is possible without the need for an overlap arm

Motor can be hidden by curtain or can be positioned above track profile in suspended ceilings

Curtain travel speed: 300 mm/ second

Material

Aluminium

Uniclass 2015
Window curtain supports (Pr_40_30_20_96)Primary
Specification data - Window curtain supports
Product Reference

5300 Electric Curtain Track System

Dimensions

As drawing ___

As schedule ___

Colour/ Finish

Silver anodized

White powder coated

Fixing brackets

Ceiling/ bracket clamp Ref 5320

141 mm projection to centre of track.

Wall fixing extension brackets Ref 3239

Operating system

Infra-red control

Wall switch control

Accessories -
Standard

Not required

Adjustable pilot runner Ref 5321

Connecting bridge Ref 5319

Drive belt Ref 5302

End set Ref 5304

Belt guide.

End set Ref 5310

Belt return.

Endstop Ref 5312

Fixing screws Ref 348C

Mask Ref 5110

Master carrier set Ref 5317

Motor support Ref 5318

Motor connection plug Ref 5685

Non-latching wall mounted white plastic switch Ref 0565A

With back-box; recessed pattress.

Overlap arm Ref 5670

Single stack.

Roller gliders with eye Ref 6098

Ten per metre.

Spring stop Ref 6086

Other

Not required

Cable for motor Ref 5779

Nylon curtain hooks Ref 3576

Plug for motor Ref 5778

Roller gliders with curtain hooks Ref 6094

Standard product features

Track:

  • Profile: 55 mm wide x 28 mm deep.
  • Maximum overall track length: 25 metres.

Material:

Aluminium.

Fixing:

  • Track fixings are required at 500–600 mm centres, depending on the curtain configuration.
  • Fix nylon ceiling clamps Ref 3826 to extension brackets with M4 x 8 mm screws.

Product Options

Accessories:

Non-latching switch is available in one, two, three, four, five and six gang options; consult manufacturer for details.
