Application

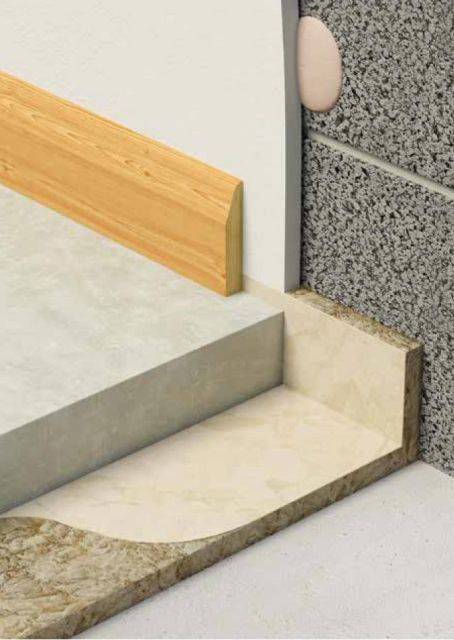

  • A resilient layer under timber raft floating floors.
  • A resilient layer under cement sand screed floating floors.

Description

The product consists of a resilient 36 kg/m³ density glass fibre roll faced on one side with bitumenized kraft paper - the paper facing has a 75 mm flange on one long side to overlap the adjoining roll. Complies with the resilient layer guidance given in 2003 edition of Approved Document E of the Building Regulations (E&W).

Applications:

  • A resilient layer under timber raft floating floors.
  • A resilient layer under cement sand screed floating floors.

Benefits:

  • Easy to fit, cut and join.
  • Meets Building Regulations.
  • Helps reduce impact sound.
  • 75 mm flange for overlapping.

General information
Specification data - Mineral wool insulation
Product Reference

514 Paper Faced Sound Deadening Roll

Standard product features

Dimensions:

25 x 1200 mm.

Kraft paper facing:

90 g/m² bitumen kraft.

Glass fibre nominal density:

36 kg/m³.

Fire rating:

Non-combustible to BS EN 476-4.
