4.3.4 - Roof: Flat or Tapered Insulation (Cold Adhesive) with Membranes and Timber Decking

Third party certifications:

QA Certificate
Certificate type
BSI Kitemark
Certificate type

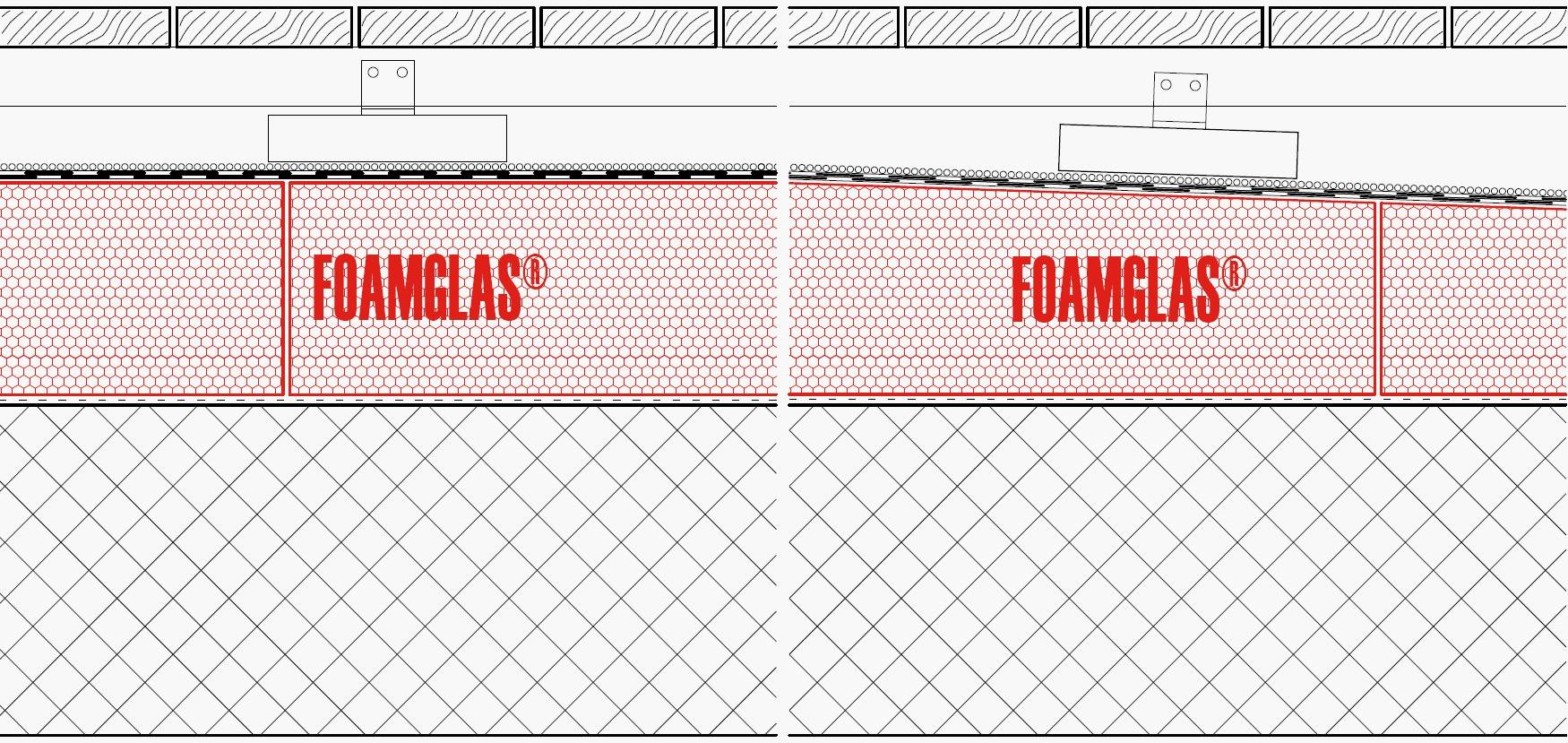

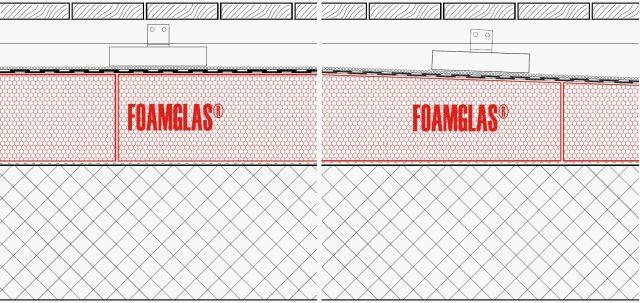

FOAMGLAS® Compact Roof Systems: Compact Flat Roof with boardwalk on reinforced concrete deck

Jump to:

Description

Properties:

Waterproof.

High compressive strength without deflection or movement.

Non-combustible.

Impervious to water and water vapour.

Sealed cellular structure.

Dimensionally stable.

Acid resistant.

Easily cut to shape.

Resistant to vermin.

Recycled content scrap glass: Minimum 60%.

Ozone Depletion Potential (ODP): <1%.

Global Warming Potential (GWP): Zero.

GreenSpec rating, see 'Cellular Glass' or 'Foamed Glass'.

Green Guide rating, see 'Cellular Glass'.

Advantages:

Quality: Systems with high quality materials; management by systematic site inspections and professional consulting.

Cost efficiency: The high durability preserves maximum value and ensures minimal maintenance costs.

Sustainability: Optimum insulation performance and protection against moisture for future generations. Scrap can be reclaimed and re-cycled to make new Foamglas.

Insulation performance: Insulation performance is permanent; ageing does not take place. Use above and below ground, unaffected by moisture, humidity and compressive loads. Proven to retain its thermal and vapour control characteristics for ˃ 50 years.

No thermal bridging: Fully bonded insulation systems, zero fixings prevent thermal bridging, eliminating the risk of fixings corrosion.

Non-toxic: Foamglas cellular glass contains no toxic substances, does not contaminate water or the ground, in cases of fire, does not develop fumes or toxic gases.

Sealed structure and non-hydroscopic: Each cell has a glass wall, giving the unique structural strength, vapour tight and non-hydroscopic properties.

A separate vapour barrier is not required: With its purpose manufactured adhesives, Foamglas is suitable for extreme humidity environments and gives control of the vapour drive in any direction. Foamglas is an insulation and vapour barrier in one single material.

High compressive strength: Capability to withstand high compressive loads without deflection or movement.

Dimensional stability: Very low rates of thermal movement, mechanical fixings are not required to prevent delamination from the parent structure.

Reduced weight, on the structure, screed to fall not required.

Bespoke tapered insulation design service available.

General information

Uniclass 2015	Pr_25_71_52_13 Cellular glass insulation boardsPrimary
CAWS	J41/10 Built-up reinforced bitumen membrane warm deck roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering

Specification data - Cellular glass insulation boards

Product Reference	4.3.4 Roof: Flat or Tapered Insulation (Cold Adhesive) with Membranes and Timber Decking
Primer	PC®EM
Adhesive	PC® 500
Insulation	-
Type	Foamglas® Ready Block (T4+) Foamglas® Slab (T4+)
Thickness	Tapered See 'Options' below. 40 mm 50 mm 60 mm 70 mm 80 mm 90 mm 100 mm 110 mm 120 mm 130 mm 140 mm 150 mm 160 mm 170 mm 180 mm
Top layer	Two layers of bituminous waterproofing membranes, top layer UV-resistant, as section J41, clauses 400 or 405
Surface protection	Substructure with wooden grating, as section Q55, clause 120

Standard product features

Characteristics:

Thermal performance is permanent and never changes.

Manufactured from recycled glass (minimum 60%) and natural raw materials which are available in abundant supply - sand.

The insulation is totally inorganic, contains no ozone depleting propellants (CFCs, HCFCs etc), flame resistant additives or binders; VOC or other volatile substances.

For substrate quality and suitability, see Technical Guide TG1.

- Foamglas® Ready Block (T4+):

Density (EN 1602, ± 10%): 115 kg/m³.

Length (EN 822, ± 5 mm): 600 mm.

Width (EN 822, ± 2 mm): 450 mm.

Thermal conductivity (EN ISO 10456): ≤ 0.041 W/m·K.

Reaction to fire (EN 13501-1): Core material Euroclass A1.

Compressive strength (EN 826 annexe A): ≥ 600 kPa.

Flexural modulus of elasticity (EN12089) 700 MN/m².

Bending strength (EN 12089): ≥ 450 kPa.

Tensile strength (EN 1607): ≥ 100 kPa.

Thermal expansion coefficient (EN13471): 9 x 10-6 K.

Impervious to water vapour (EN ISO 10456): µ=∞ infinity.

Green Guide rating A.

CEN Keymark: 001-BK-516-001-0030-T00A.

CPR DOP: 120211015.

- Foamglas® Slab (T4+):

Density (EN 1602, ± 10%): 115 kg/m³.

Length (EN 822, ± 5 mm): 600 mm

Width (EN 822, ± 2 mm): 450 mm.

Thermal conductivity (EN ISO 10456): ≤ 0.041 W/m·K.

Reaction to fire (EN 13501-1): Euroclass A1.

Compressive strength (EN 826 annexe A): ≥ 600 kPa.

Flexural modulus of elasticity (EN12089) 700 MN/m²

Bending strength (EN 12089): ≥ 450 kPa.

Tensile strength (EN 1607): ≥ 100 kPa.

Thermal expansion coefficient (EN13471): 9 x 10-6 K.

Impervious to water vapour (EN ISO 10456): µ=∞ infinity.

Recycled content: < 60% Scrap Glass.

Ozone Depletion Potential (ODP): <1%.

Global Warming Potential (GWP): Zero.

Green Guide Rating A.

GreenSpec listing see 'Cellular Glass' or 'Foamed Glass'.

Manufactured to Environmental Management System ISO14001.

CEN Keymark: 001-BK-516-001-0032-T00A.

CPR DOP: 100010015.

Product Options

Insulation:

- Thickness:

Foamglas insulation, factory produced with a tapered thickness, is available in a wide range of gradients from 0.55% (1:180) to 6.7% (1:15). Contact manufacturer for further information as a bespoke tapered CAD design service is available.

Use standard flat slabs for upstands and flat gutters. For insulation thicknesses of ˃180 mm, use double layers of minimum 90 mm per layer.

Base Layer: Foamglas® Slab (T4+).

Top Layer: Foamglas® Ready Block (T4+) or Foamglas® Ready Block (T4+) Tapered.

A bespoke tapered CAD design service is available.

Digital objects

Platform	Compatible	Version	Certified to
IFC	IFC2X3	3	1.3
Revit	Revit 2016	4	2.0

Download now from NBS National BIM Library

Literature

4.3.4 Roof- Flat or Tapered Foamglas Insulation (Cold Applied) with Timber Decking

TG1 Technical Guide - Preparation of substrates

Third party certifications

CEN Keymark Certificate of Conformity: Foamglas Insulation - NBN EN 13167 and NBN EN 13172: 2008.
Foamglas Insulation: File BM730-585 certificate 0603. : Manufactured to Environmental Management System ISO14001
Alliance for Sustainable Building Products: Foamglas Insulation Nature Plus certificate number 0406-1101-101-1. : Nature Plus recognised and approved.
