FOAMGLAS® Compact Roof Systems: Ready-Roof without service access or protective layer on reinforced concrete deck.
J41/10 Built-up reinforced bitumen membrane warm deck roof covering
J41/110 Built-up reinforced bitumen membrane warm deck roof covering

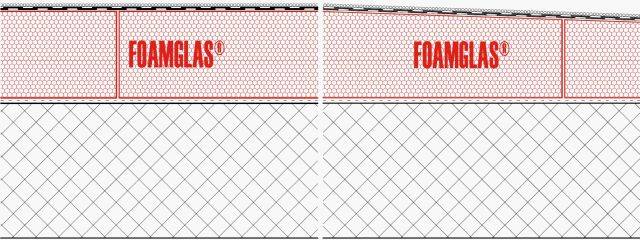

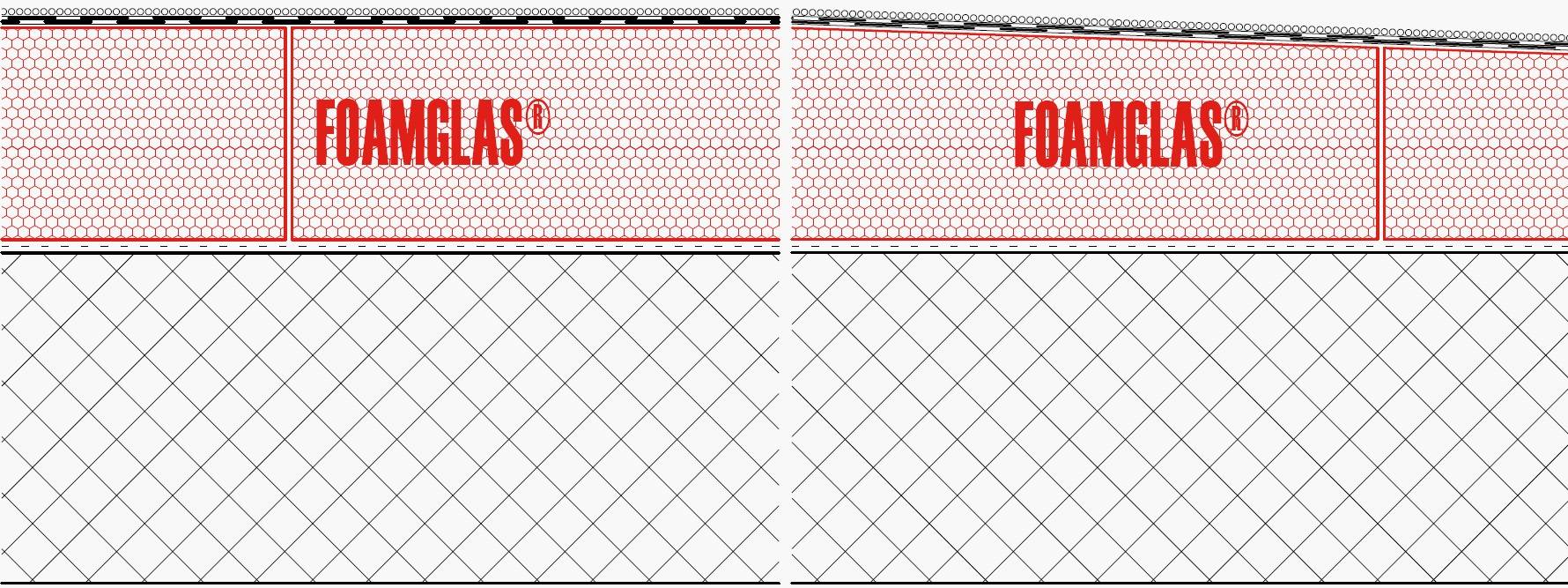

4.1.2 Roof - Flat or Tapered Insulation (Cold Adhesive) With Membranes
Foamglas® Ready Block (T4+)
Foamglas® Slab (T4+)
See 'Options' below.
Two layers of bituminous waterproofing membranes, top layer UV-resistant, as section J41, clauses 400 or 405
Standard product features
- Foamglas® Ready Block (T4+):
- Foamglas® Slab (T4+):
Foamglas insulation, factory produced with a tapered thickness, is available in a wide range of gradients from 0.55% (1:180) to 6.7% (1:15). Contact manufacturer for further information as a bespoke tapered CAD design service is available.
Where required for thickness >180 mm, use double layers of minimum 90 mm per layer. Where required for thickness >160 mm, use double layers of minimum 80 mm per layer.
