4.0 - Raised Access Floor System
Verified by manufacturer 2 days ago

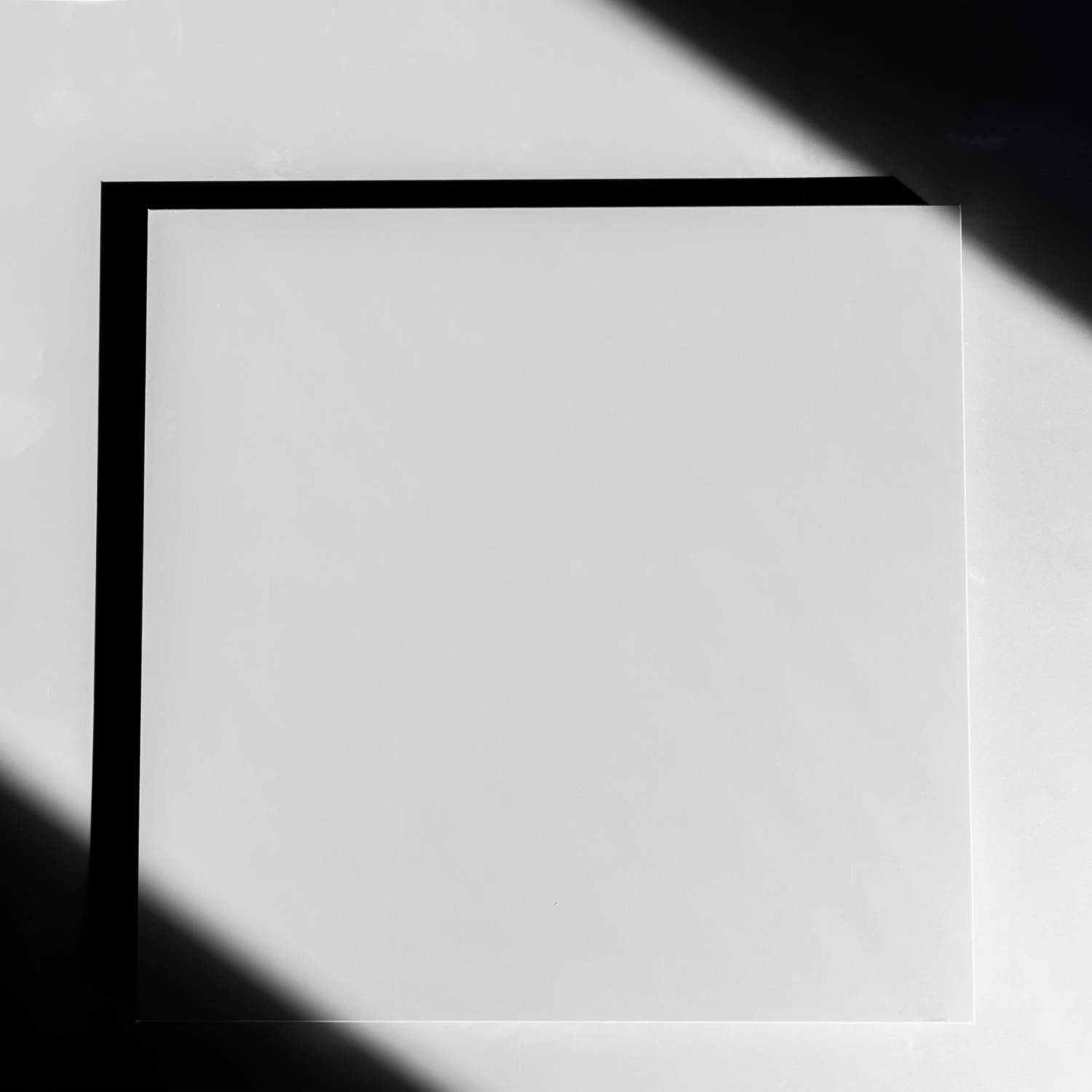

A customisable raised access flooring finish featuring a durable pigmented resin surface, designed to combine design freedom, technical performance, and sustainability.
Application

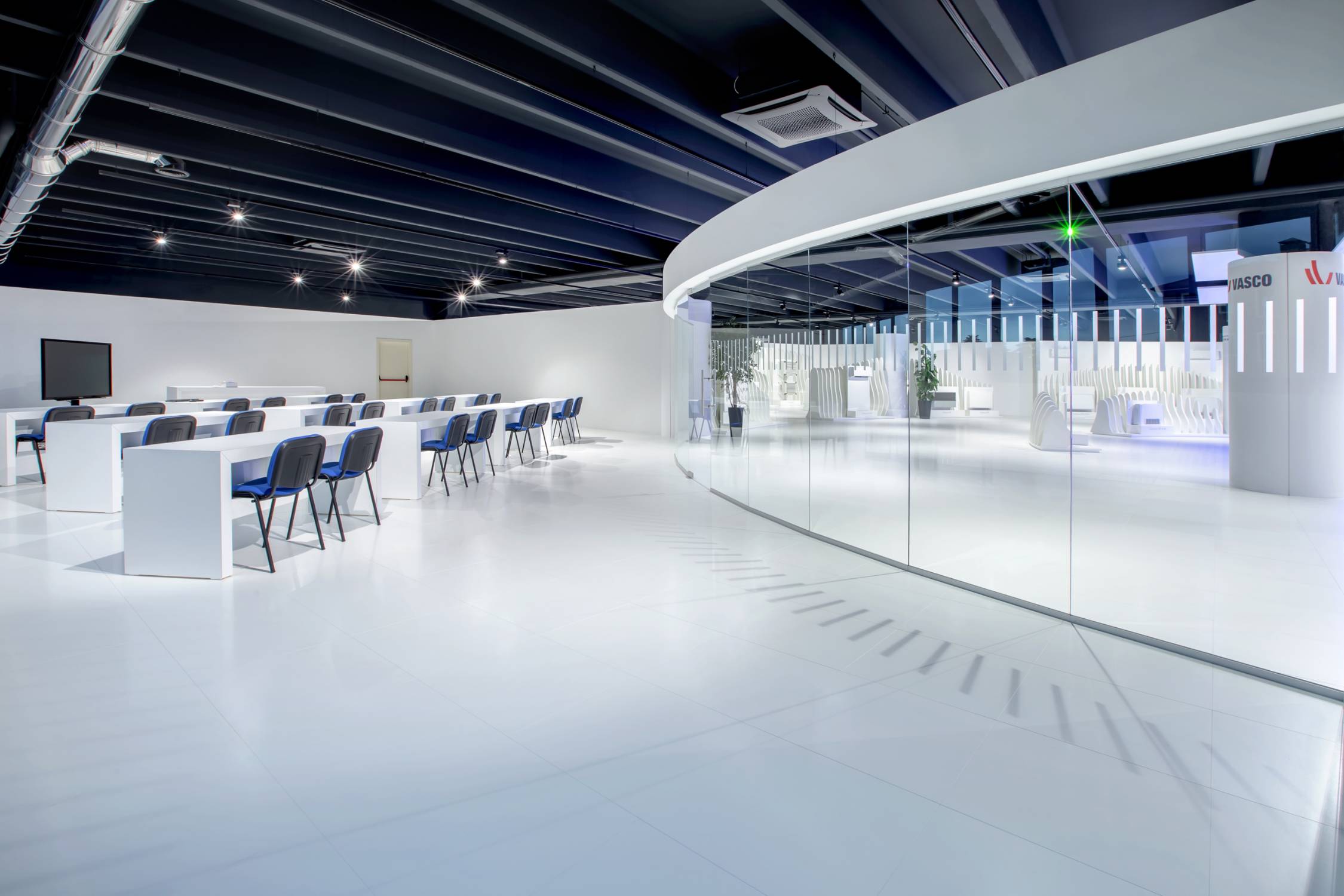

Suitable for commercial, office and institutional buildings.
Description
4.0 is a fully customisable raised access flooring system finishing designed to offer flexibility in aesthetics and performance. It features a pigmented resin top surface that, once cured, forms a durable film with resistance to scratches and impacts. Allows for extensive customisation in colour, finish, and visual effects, making it suitable for projects that require both functional raised flooring and tailored design solutions. Colour options are available in Plain for a homogeneous appearance or Concrete with visible calcium sulfate, selectable from the Nesite collection or the RAL colour scale.
Features and benefits:
- Wide range of colours and finishes to suit different design requirements.
- Opacity options include glossy, semi-gloss, and opaque.
- Choice of standard or embossed surface finishing for tactile and visual variation.
- Possibility to integrate graphic elements through digital printing for advanced customisation.
- Pigmented resin surface creates an anti-scratch and shock-resistant protective film.
- Formaldehyde-free panel compliant with EN 717-1 standards.
- Low volatile content varnish certified Indoor Air Comfort GOLD.
- 100% recyclable components designed for reuse at the end of the product life cycle.
- Contributes to LEED certification requirements.
General information
Color | Other Manufacturer guidanceChoose between the colours of the Nesite collection or directly from the RAL scale. |
Finish | Semi-gloss Gloss Embossed Other Guidance for specification option: Opaque |
Material | Resin Chipboard Calcium sulphate Steel |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Proprietary raised access floor |
Specification data - Raised access floor systems
Classification data | |
Subfloor preparation | Manufacturer guidanceInsert requirements or omit. |
Support structure type | Access floor pedestals - MPS. Guidance for specification option: A solution for locals where floor height is reduced and/ or load requirements are light/ medium. Available heights from 35 mm to 600 mm. Access floor pedestals and stringers - MPL. Guidance for specification option: The structure with open cross-sectional stringers allows maximum stability of the floor even without gluing the columns to the supporting slab support. Access floor pedestals and stringers - MPM. Guidance for specification option: The substructure with medium resistance and open section stringers is suitable for rooms with medium/ high load requirements and traffic. Heights from 35 to 1000 mm. Access floor pedestals and stringers - MPH. Guidance for specification option: The substructure with closed rectangular stringers allows to reach high loads. Suitable for technical rooms and high traffic areas. Access floor pedestals and stringers - BPC. Guidance for specification option: A solution for maximum performance, which ensures rigidity and electrical continuity due to the rectangular section closed stringers 50 x 25 mm. Access floor pedestals and stringers - TR. Guidance for specification option: Specifically designed for technical areas such as data centres and is characterised by the pedestals' high load performance and positioning flexibility. |
Pedestal fixings | Not required. Epoxy resin-based adhesives. Polyurethane (PUR) adhesives. |
Raised access floor surface | Raised access floor panels, chipboard core, with resin finish. Guidance for specification option: Core produced with FSC® chipboard in class E1, with very low formaldehyde emissions and high density 730 kg/m³. It represents a solution with good performance, suitable for projects that do not require high loads or have limited budgets. Raised access floor panels, calcium sulphate core, with resin finish. Guidance for specification option: Core composed of a monolithic layer of calcium sulphate, anhydrite-reinforced with recycled cellulose fibers, reaction to fire in class A1. Calcium sulfate panels offer high-performance characteristics and are EPD certified making them also suitable for projects with high sustainability standards. Raised access floor panels, sintered material core, with resin finish. Guidance for specification option: Core made of inert and inorganic material, with very high density (2200 kg/m³). Resistant to temperature changes, non-absorbent and frost-resistant. Suitable for high humidity environments or outdoor spaces, in the version without edge trim. Manufacturer guidanceThe bottom covering of the raised floor panels can be of various types:
Insert requirements. |
Samples required | Manufacturer guidanceInsert requirements or omit. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Colour/ Finish | Plain. Guidance for specification option: Homogeneous effect. Concrete. Guidance for specification option: With calcium sulphate in transparency. Manufacturer guidanceThe colour range is available in Plain and Concrete, and it is possible to choose between the colours of the Nesite collection or directly from the RAL scale. Opacity options include glossy, semi-gloss and opaque, and finishing options include standard or embossed. Graphic elements can also be inserted through a particular printing process, for further customisation of the floor. Consult manufacturer and insert requirements. |
Sustainability data
Material | Resin Chipboard Calcium sulphate Steel |
Literature
Nesite Catalogue
