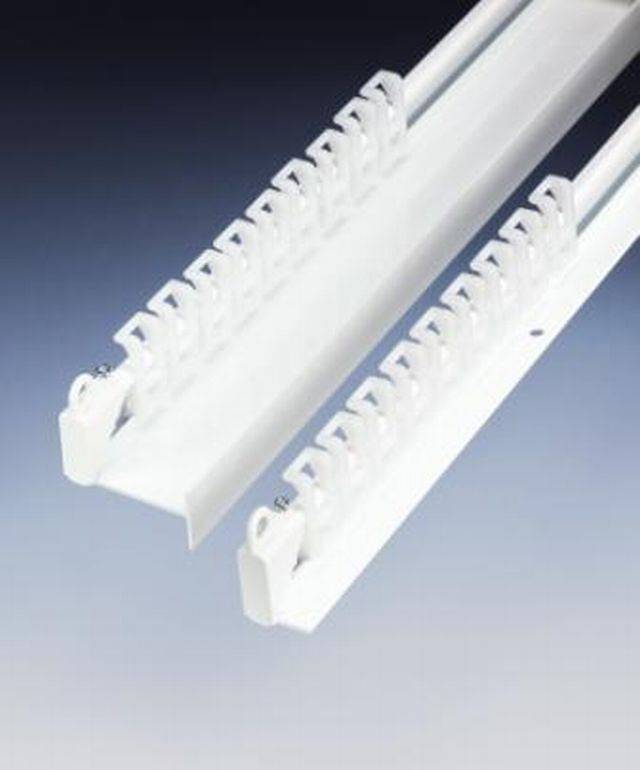

1225 Hand Operated Curtain Track

Application

Designed for contract applications such as schools, hotels, hospitals, etc.

Description

Ceiling mounted track with extended vertical flange, for light to medium weight curtains. Special gliders run on rim of channel reducing friction with curtain heading and can be easily removed or replaced without taking track down.


Features:

  • Pre-drilled to allow fixings to be at 300 mm centres.
  • Track cannot be bent.
  • Gliders are normally fitted 14 per metre.

General information

Uniclass 2015

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Specification data - Window curtain supports Enhanced data

Support

Curtain tracks.

Opening dimensions

Track channel.

15.4 x 19.6 mm.

(Wall flange 18 mm deep).

Material

Aluminium.

Finish

Powder coated aluminium.

Colour

White.

Execution

Installing curtain supports.

Product Reference

1225 Hand Operated Curtain Track

Standard accessories

Endcover.

 Ref 3986.

Gliders in strip form.

(20 No.) Ref 3933.

Other accessories

Not required.

Pair of magnetic gliders.

Ref 3947.

Snap-in end stop/ intermediate stop.

Ref 3942.

Fixing

Fix track to soffit at 300 mm centres. Special gliders should be fitted at ten per metre to run on back of rims of track channel so as to keep curtain heading upright. Fit with end covers to each end of track.

Literature

Hand Operated Curtain Track Systems by Silent Gliss

Hand Operated Curtain Track Systems by Silent Gliss
