1221 Hand Operated Curtain Track

Application

Designed for contract applications such as schools, hotels, hospitals, etc.

Description

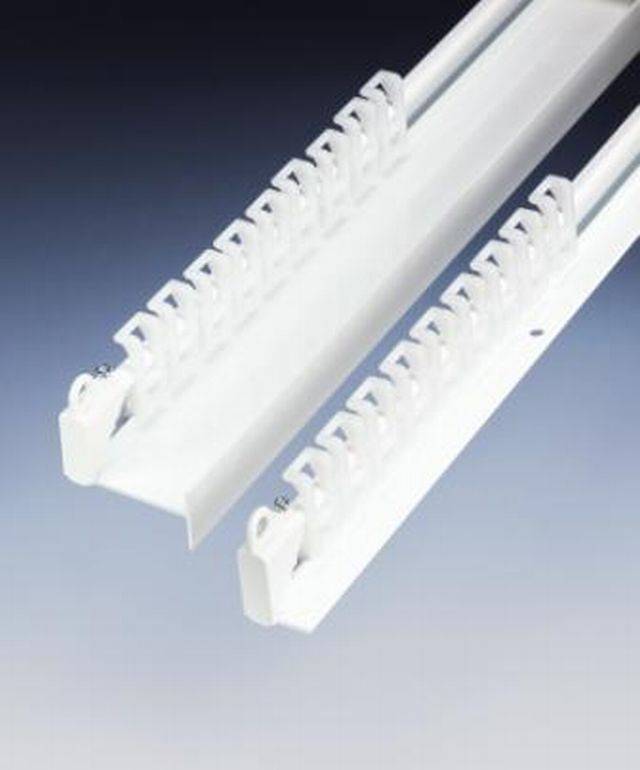

Wall mounted track with extended horizontal flange for light to medium weight curtains. Special gliders run on rim of channel reducing friction with curtain heading and can be easily removed or replaced without taking track down.


Features and benefits:

Gliders are normally fitted 14 per metre.

General information

Color

White

Finish

Powder-coated

Material

Aluminium

Length

5000 mm

6000 mm

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Product range

Curtain Tracks / Hand Operated Curtain Tracks

Specification data - Window curtain supports

Support

Curtain tracks.

Opening dimensions

Track channel width x depth.

35 x 19.6 mm.

(Wall flange 18 mm deep).

Overall length

Standard length. Tracks can be joined using connectors.

5 m.

6 m.

Material

Aluminium.

Finish

Powder coated.

Colour

White.

Standard.

Execution

Installing curtain supports.

Fixing

Ceiling fix brackets (Ref 3176).

Double ceiling brackets (Ref 3113).

63 mm centres.

Double ceiling brackets (Ref 3115).

86 mm centres.

Wall fix/ universal brackets (Ref 3175).

Type

Standard accessories.

End cover.

Ref 3986.

Gliders in strip form.

(20 No.) Ref 3933.

End cover colour

White.

Other accessories

Not required.

Aluminium draw rod.

Ref 4092S.

Endstop/ intermediate stop.

Ref 3942.

Pair of magnetic gliders.

Ref 3947.

Plastic draw rod.

Ref 4092.

Fixing method

Track fixing brackets to be at approximately 600 mm centres. Special gliders should be fitted at 10 per metre to run on rim of track channel so as to keep curtain heading upright. Fit with end covers to each end of track.

Literature

Hand Operated Curtain Tracks Technical Catalogue by Silent Gliss

Hand Operated Curtain Tracks Technical Catalogue by Silent Gliss
