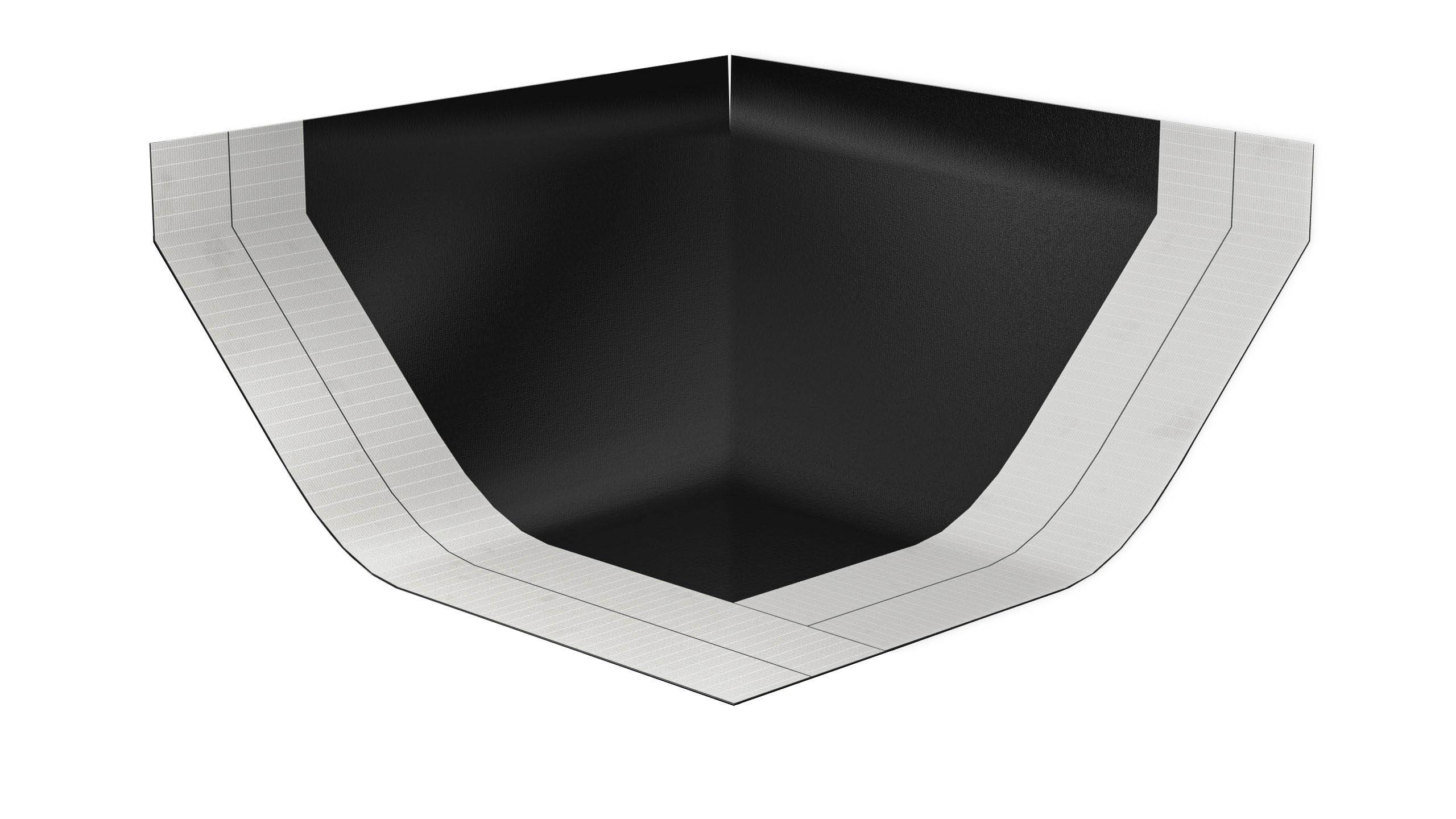

0243FR Internal Corner (Standard Size)
0243FR Internal Corner (Standard Size)
Glass fibre cavity tray/ damp proof course (DPC) corner.
Application
Suitable for use in DPC and cavity tray applications.
Description
OBEX CORTEX 0243FR RapidTray Internal Pre-Formed Corners are factory-made from the 0240FR RapidTray DPC Membrane. Designed for cavity widths from 50–1000 mm in 50 mm increments, each unit features a 50 mm vertical fixing flange, a 150 mm vertical rise across the cavity, and 150 mm extension past the apex of the corner.
The corners are surface-fixed to the inner leaf using pre-applied double-sided tape on the rear of the fixing flange, with a 100 mm overlap flange also pre-taped to ensure fast and efficient installation. The 0241FR RapidTray System with SS Termination runs over the 0242FR corner as per the installation guidelines.
An ’XL’ version is also provided with a 600 mm flange extension past the apex of the corner (available up to a maximum cavity width of 1300 mm).
Features and benefits:
- Pre-applied double-sided tapes for rapid installation – simply remove release liner and fix in place.
- Designed and manufactured to accommodate 50 mm cavity width variance.
- Included in BBA water flow testing.
- No paste/ mastic required.
General information
Color | Black White |
Finish | Coated |
Material | Glass Fibre Polymer Stainless steel |
Shape | Rectangle |
Length | 50 mm 600 mm |
Width | 50 mm 10 mm 150 mm 200 mm 250 mm |
Height | 0.4 mm |
Uniclass | |
CAWS | F30/46 Damp-proof courses – plastics F30/320 Damp-proof courses – plastics F30/56 Preformed cavity trays F30/370 Preformed cavity trays |
SKU Code | 0243FR |
Specification data - Preformed cavity trays
Classification data | |
Material | Woven glass fibre with polymer coatings and filmic liners. |
To fit cavity width | 50–100 mm. 100–150 mm. 150–200 mm. 200–250 mm. 250–300 mm. 300–350 mm. 350–400 mm. 400–450 mm. 450–500 mm. 500–550 mm. 550–600 mm. 600–650 mm. 650–700 mm. 700–750 mm. 750–800 mm. 800–850 mm. 850–900 mm. 900–950 mm. 950–1000 mm. |
Height | 0.4 mm. |
Form | Internal preformed corner. |
Reaction to fire | To EN 13501-1, A2-s1,d0. |
Watertightness | To EN 1928, 2 kPa (pass). |
Joint strength | To EN 12317-2, 611 N/50mm. Guidance for specification option:
|
Resistance to impact | To EN 12691, 1000 mm (pass). |
Low temperature resistance | To EN 495-5, -20°C to +20°C (pass). |
Tear resistance | To EN 12310-1, 156 N. |
Water vapour transmission | To EN 1931, 27 009 μ. |
Sd value | To EN 1931, 10.8 m. |
Resistance to static loading - 20kg load | To EN 14909 Annex B, 20 kg (pass). |
Flange size | 50 mm. Guidance for specification option: Vertical fixing flange.
|
Sustainability data
Material | Glass Fibre Polymer Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
OBEX CORTEX 0242FR and 0243FR RapidTray Preformed Corners - SDS
OBEX CORTEX 0243FR RapidTray Internal Pre-Formed Corners - TDS
