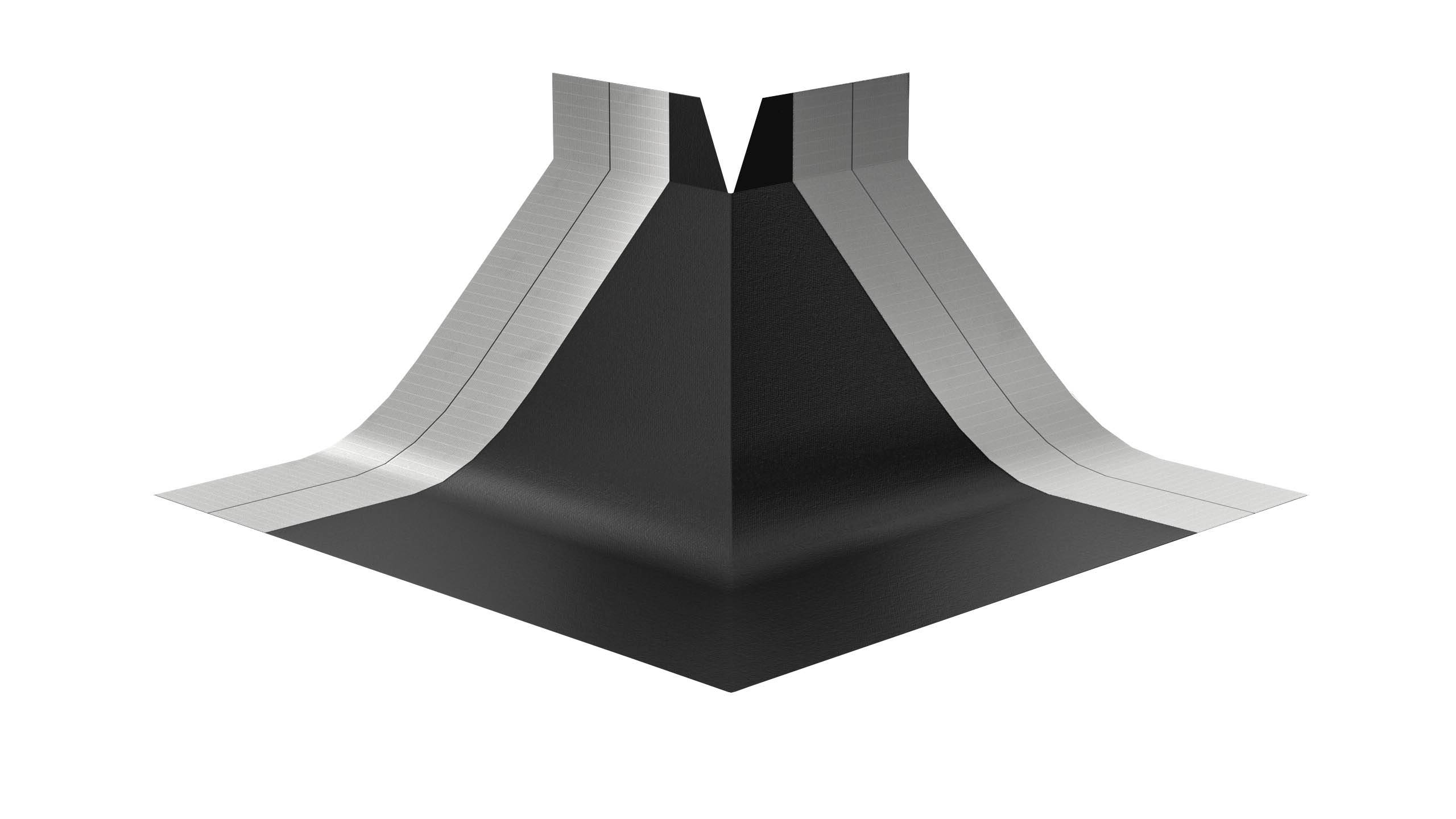

0242FR RapidTray External Preformed Corner - Cavity Tray

OBEX CORTEX 0242FR RapidTray External Pre-Formed Corners are factory-made from the 0240FR RapidTray DPC Membrane. Designed for cavity widths from 50–1000 mm in 50 mm increments, each unit features a 50 mm vertical fixing flange, a 150 mm vertical rise across the cavity, and 150 mm extension past the apex of the corner. The corners are surface-fixed to the inner leaf using pre-applied double-sided tape on the rear of the fixing flange, with a 100 mm overlap flange also pre-taped to ensure fast and efficient installation.

The 0241FR RapidTray System with SS Termination runs over the 0242FR corner as per the installation guidelines. An ’XL’ version is also provided with a 600 mm flange extension past the apex of the corner (available up to a maximum cavity width of 575 mm). Custom corner sizes and configurations are available

Features and benefits:

• Pre-applied double-sided tapes for rapid installation – simply remove release liner and fix in place.
• Designed and manufactured to accommodate 50 mm cavity width variance.
• Included in BBA water flow testing.
• No paste/ mastic required.
