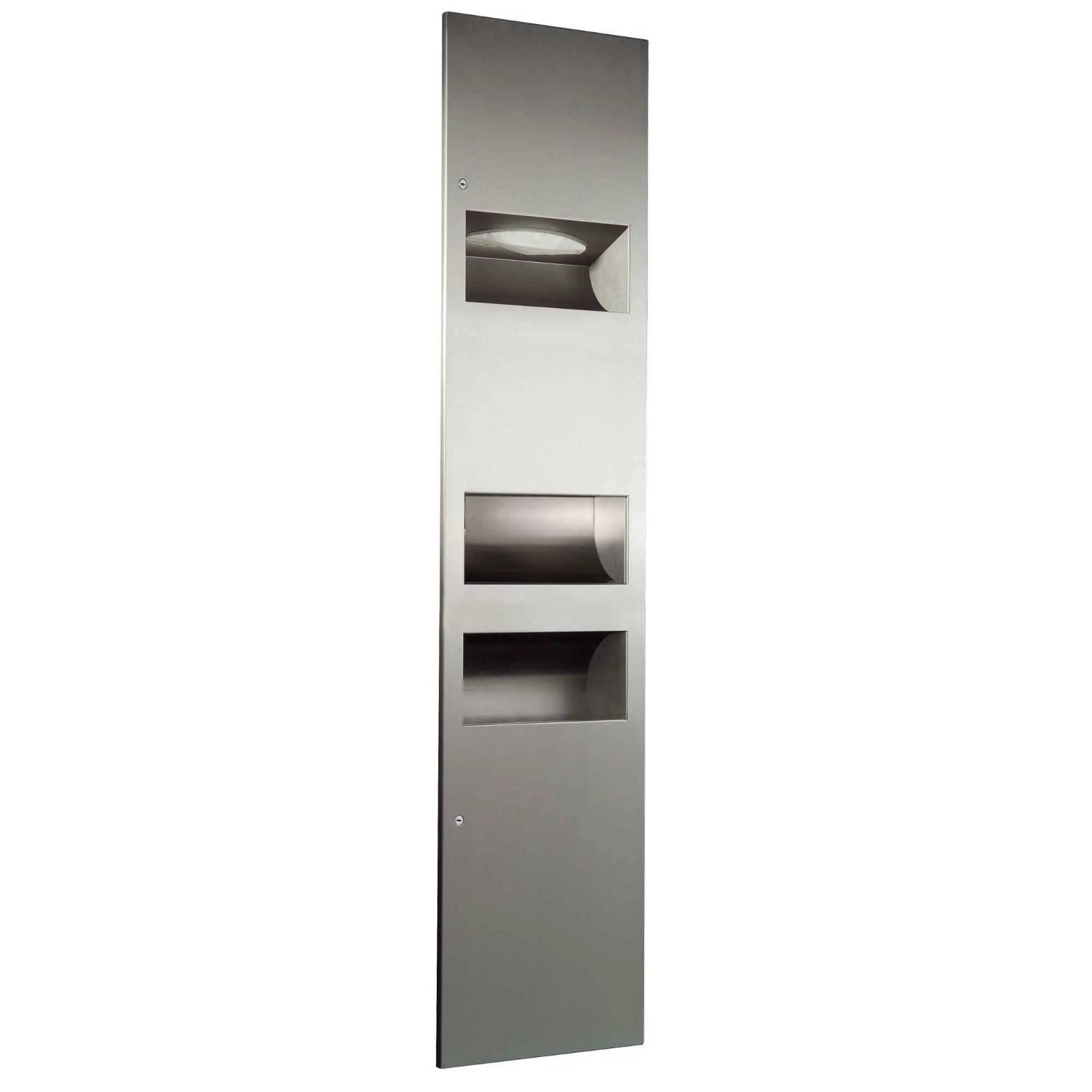

02.4031 Dolphin Recessed Combination Unit with High Speed Hand Dryer, Bin and Paper Towel Dispenser
Verified by manufacturer 2 months ago
02.4031
02.4031
Dryer, bin and paper towel dispenser combination unit, designed for wall recess fitting.
Application
Suitable for commercial washroom applications.
Description
Three-in-one recessed combination unit with high-speed hand dryer, bin and paper towel dispenser.
Features and benefits:
- Hand Dryer, Paper Towel, and Waste Bin Combination Unit
- Special Finishes: PPC in all RAL colours, Brushed Satin, Coloured Glass, and Coloured solid surface
- Paper Towel Capacity: 200 C fold or 300 Interleave paper towels
- Bin Capacity: 10 litres
- 3 in 1 Recessed satin stainless steel combination paper towel
- Stainless steel waste paper bin and back box
- Touch free operation for ultimate hygiene
- Manufactured from cast 304 grade stainless steel
- Lockable
General information
Color | Silver Black White Blue Other Manufacturer guidanceFront panel color option, consult manufacturer for details. |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 16 mm |
Width | 375 mm |
Height | 1579 mm |
Warranty description | One year |
Uniclass | |
CAWS | N13/442 Paper towel dispensers N13/474 Waste bins N13/472 Hand dryers |
Product range |
Specification data - Hand dryers
Form | Recessed, right-hand hinged door. |
Timer | 60 s auto shut off. |
Body | |
Material | Stainless steel. |
Finish | Satin. |
Colour | Natural. |
Ingress protection (minimum) | IP23. |
Dimensions | 1579 x 375 mm. |
Operating voltage | 240 V a.c. 50 or 60 Hz, 1 kW. |
HeatOutput | Manufacturer guidance
|
Ambient temperature | 25°C (77°F). |
Air speed | 102–157 mph (150–230 ft/s). |
Outflow volume | 42–60 CFM (71–102 m³/h). |
Motor type | 0.67HP, 16–29 krpm brush type, with dual ball bearings. |
Thermal protection | Manufacturer guidance
|
Heating element | 325–500 W. Manufacturer guidanceAdjustable range. |
Drying time | Less than 15 s. |
Standby batteries | Less than 0.5 W. |
CircuitType | Infrared automatic, self-adjusting. |
Duration | 1 s delayed turn off after last sensor reading. |
Opening/ configuration | 1562 x 360 x 112 mm. Guidance for specification option: Height x width x depth, recommended wall opening. |
Sound | 68.9–74.3 dBA (at 2 m). Guidance for specification option: Adjustable sound level. |
Sensor | 152 mm (+/-20 mm). Manufacturer guidanceSensor range. |
Front panel | Satin. |
Capacity | 10 L. Manufacturer guidancePaper bin or black box. |
Dispenser | 200 'C' fold at 225–250 x 90–100 mm. 300 interleave at 215–250 x 80–100 mm. Manufacturer guidancePaper towel. |
Standard | To BS EN 10088-1. |
Projection | 16 mm. |
