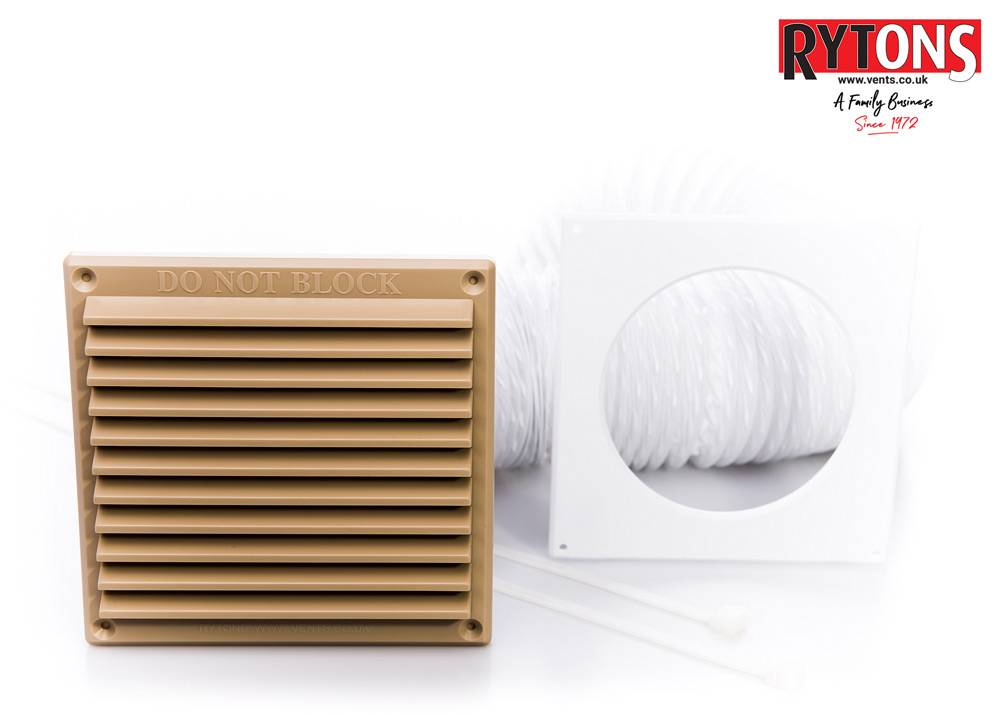

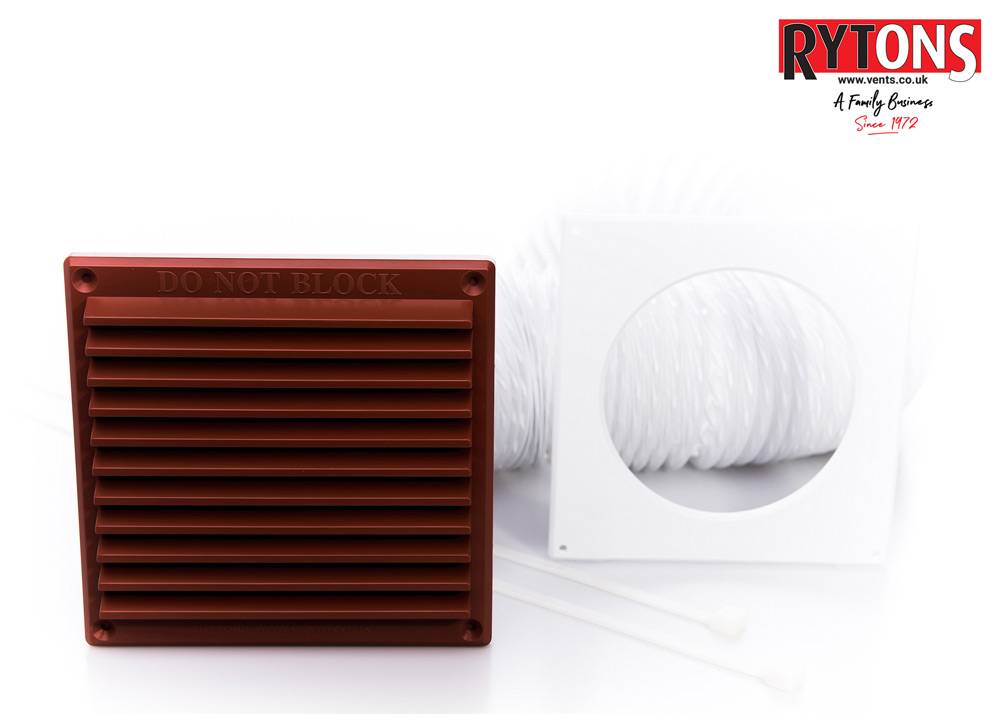

VKIT - Rytons Venting Kit with 6x6 Louvre Grille Range
Application

  • For tumble dryer extraction.
  • Suitable for working temperatures ranging from -5 to +60°C.

Description

Multi-purpose venting kit.


Features and benefits:

  • External grille embossed with 'DO NOT BLOCK'.
  • External grille UV stabilized to slow down the effects of sunlight.


Components:

  • Rytons 6x6 Louvre Grille (LV103).
  • Rytons 6x6 Louvre Backplate with Spigot.
  • Rytons PVC RytHose.
  • Rytons Internal Plate.
  • Two Zip Ties.

General information

Color

Black

Brown

Cream

Orange

White

Material

Polystyrene

Size

166 x 160 mm

Louvre Grille:  (l x h).

100 x 3000 mm

VKIT Ducting: (d x l).

125 x 3000 mm

VKIT5 Ducting: (d x l).

Uniclass 2015

Pr_30_59_96_92 Ventilation ductsPrimary

CAWS

F30/17 Ventilation ducts in external walling

F30/171 Ventilation ducts in external walling

U90/34 Through wall ventilator ducts

Specification data - Ventilation ducts Enhanced data

Material

High impact polystyrene.

Product Reference

VKITBL

Rytons 100mm Venting Kit with 6×6 Louvre Grille (3m L Ducting) Black Louvre Grille.

VKITBS

Rytons 100mm Venting Kit with 6×6 Louvre Grille (3m L Ducting) Buff/ Sand Louvre Grille.

VKITDB

Rytons 100 mm Venting Kit with 6×6 Louvre Grille (3m L Ducting) Brown Louvre Grille.

VKITTC

Rytons 100 mm Venting Kit with 6×6 Louvre Grille (3m L Ducting) Terracotta Louvre Grille.

VKITWH

Rytons 100 mm Venting Kit with 6×6 Louvre Grille (3m L Ducting) White Louvre Grille.

Show more

Colour

Black.

VKITBL, VKIT5BL

Buff/ Sand.

VKITBS, VKIT5BS

Brown.

VKITDB, VKIT5DB

Terracotta.

VKITTC, VKIT5TC

White.

VKITWH, VKIT5WH

Literature
