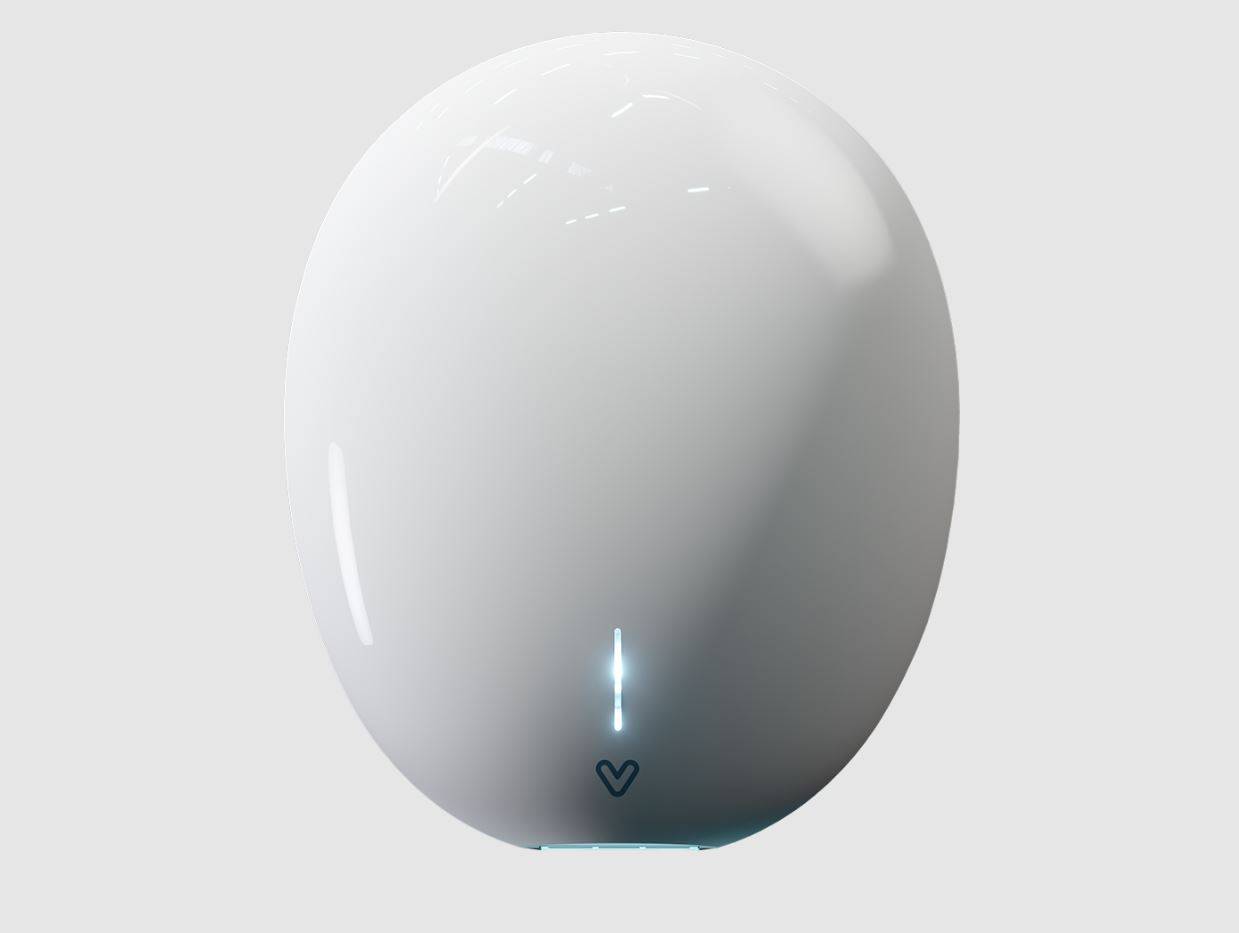

Pebble (Plug & Play, Low Carbon) Automatic hands-under Hand Dryer - Hand Dryer

Verified by manufacturer 1 month ago

VAPB001 - White & UV Coating

Velair Group Ltd Variant:
Third party certifications:
  • TUV - Safety and Quality Report

    Certificate type

  • TUV - Safety and Quality Reportvv

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • Quiet Mark Certification

    Quiet Mark Certification

    Certificate type

  • Alcumus SafeSupplier

    Alcumus SafeSupplier

    Certificate type

  • Sustainability Certification - Planet Mark

    Sustainability Certification - Planet Mark

    Certificate type

Low carbon Plug & Play hand dryer with a digital brushless motor.

Jump to:
BIM object icon
+44 (0) 1425 616103 Website

Application

Suitable for low, medium and high usage.

Description

A high quality, low carbon hand dryer equipped with an intelligent H13 HEPA media filter that notifies the user when it needs replacing, helping to maintain hygienic protocol. Its digital brushless motor negates the need for maintenance, making it suitable for high footfall environments, whilst its secure Plug & Play® functionality allows for easy installation, replacement, and servicing- without the need for skilled labour.

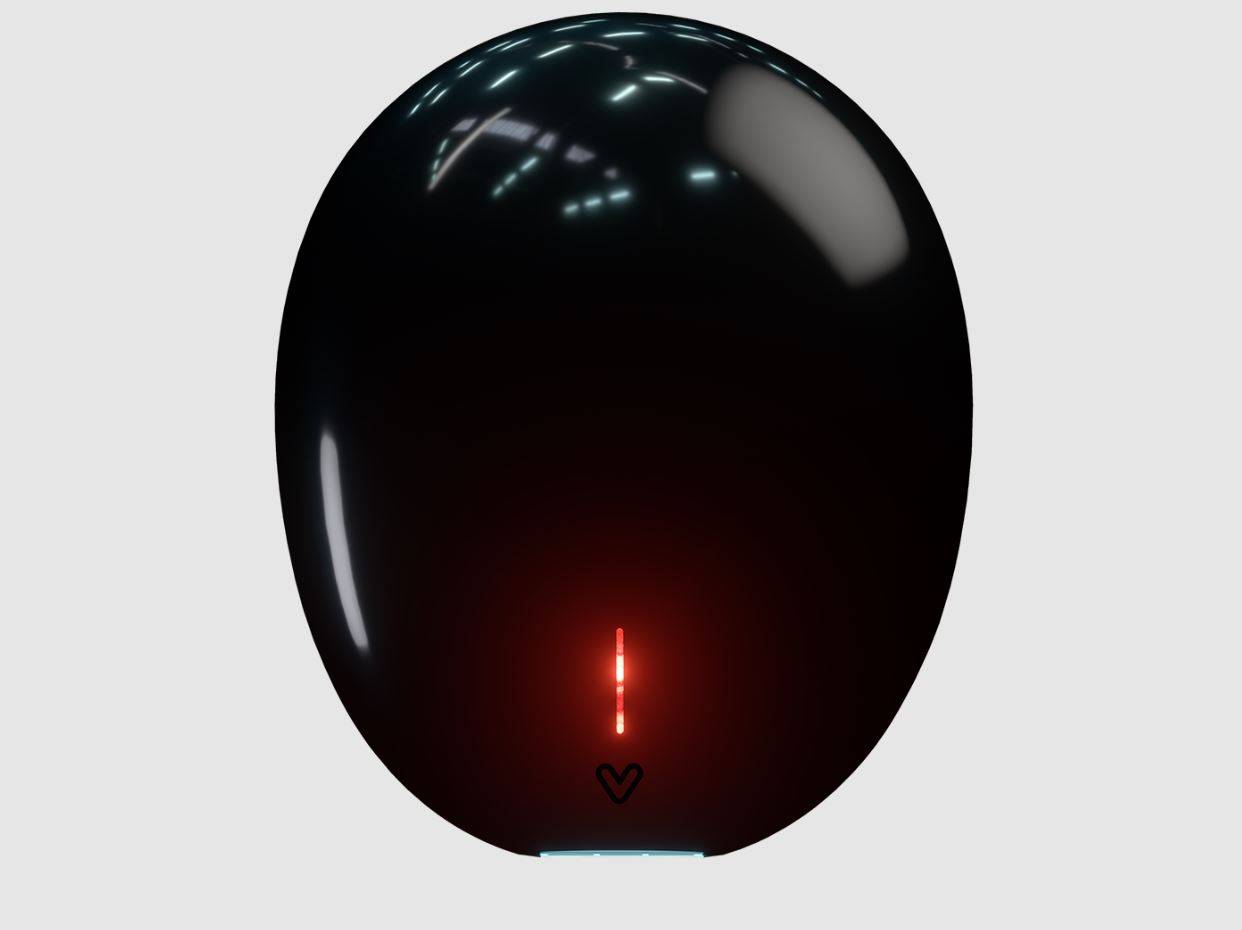

Available in White, Satin or Black. Can be branded with your company logo.


Features and benefits:

  • Plug & Play.
  • TerraSafe cable safety protocol.
  • H13 HEPA media iFilter.
  • Low carbon engine.
  • Digital brushless motor.
  • Quiet Mark accredited.
  • IONPURE antimicrobial dryer cover.
  • IK rating: IK08.
  • Quiet mode.
  • High gloss UV anti-scratch coating.
  • 12 second drying time.
  • 18 kg carbon emissions per year.
  • 5 year 24 hour replacement warranty.
  • Isolation Class 1.
  • CE,RoHs (TUV certified), UKCA marked in accordance with EEC documents.

General information

Color

White

Silver

Black

Finish

Anti-microbial

Other

Guidance for specification option:

UV coating.

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Other

Length

145 mm

Width

270 mm

Height

322 mm

Warranty description

Five year

Guidance for specification option:

24 hour replacement manufacturers warranty

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Specification data - Hand dryers

Form

High-velocity air.

Operation

Automatic.

Timer

Fixed.

Electrical supply

-

Power rating

0.72 kW (standard); 0.13 kW (quiet mode).

Rated operational voltage (Ue)

220—240 V.

Frequency

50 Hz.

Body

-

Material

ABS plastics.

Guidance for specification option:

Fireproof 94VO.

Finish

Antibacterial coating.

Guidance for specification option:

IONPURE antimicrobial.

Colour

White.

Ingress protection (minimum)

IPX3.

Dimensions

145 x 270 x 322 mm.

Manufacturer guidance

D x W x L.

Noise level at 1 m (maximum)

72 dB.

Guidance for specification option:

Quiet Mode at 1 meter - 67 dB.

Features

Hands only.

Weight

2.6 kg.

Guidance for specification option:

Packed weight 3.6 kg.

Drying time

≥12 Seconds.

Guidance for specification option:

Motor Cut-off Time 50 Seconds.

Motor

Digital Brushless DC Motor (BLDC).

Speed

30,000 RPM (standard); 21000 RPM (quiet mode).

Manufacturer guidance

Motor speed.

Air speed

96 m/s (standard); 65 m/s (quiet mode).

Volume

84 m³/h (standard); 57 m³/h (quiet mode).

Manufacturer guidance

Air volume.

Operating temperature range

120°C.

Manufacturer guidance

Thermal protection auto resetting.

Power

400 Watts.

Manufacturer guidance

Heater element power.

Filter

H13 filter media + Antimicrobial filter.

Guidance for specification option:

Filter replacement alert system and indication lights.

Media Filter Alert:

  • Indicator Blue LED when working mode.
  • Red LED flashes after 60,000 uses for Filter replacement alert.

Impact protection (minimum)

IK08.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

18 kg CO₂ eq/kg

Manufacturer guidance

18 kg carbon emissions per year.

Recyclability

Recycled by manufacturer under WEEE Directive

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

93.15 %
