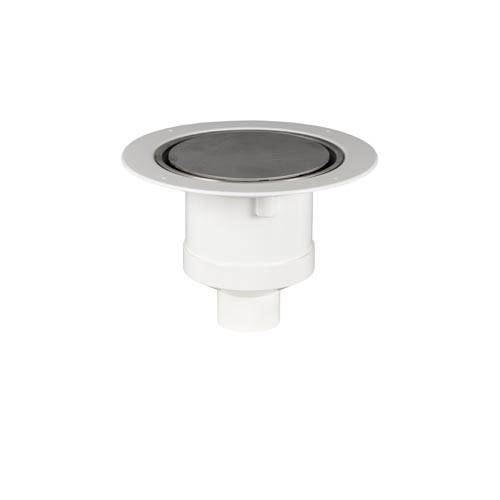

Wade (GV6 Series) ABS Shower Outlet
Verified by manufacturer 1 month ago
UKAS
Certificate type
Shower Outlet For Use in Wet Bathrooms and Shower Areas Decked With Flexible Sheet Flooring
Application
Suitable for use in wet bathrooms and shower areas decked with flexible sheet flooring such as vinyl, of a thickness up to 3.5 mm.
Description
Shower outlet for use in wet bathrooms and shower areas decked with flexible sheet flooring such as vinyl, of a thickness up to 3.5 mm.
Features and benefits:
- Vertical outlet.
- Barefoot safe.
- Adaptor from 110 mm to 50 mm.
General information
Color | White |
Material | Stainless steel Steel Bronze Guidance for specification option: Nickel Bronze. |
Shape | Circle |
Length | 50 mm 100 mm |
Width | 50 mm 100 mm |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
SKU Code | GV6007, GV6103, GV6107, GV6247, GV6503, GV6517, GV6803, GV6817, GV6823 |
Product range |
Specification data - Floor gullies
Classification data | |
Standard | To BS EN 1253. |
Body | |
Configuration | Bell-trapped. |
Material | ABS. |
Cover or grating | |
Cover or grating type | |
Material | |
Outlet | Vertical. |
Load class (minimum) | |
Integral accessories | |
Diameter | 50 mm. 110 mm. |
Suitable floor finishes | Vinyl. |
Colour: | White. |
Accessories |
Sustainability data
Contains Red List materials | No |
Material | Stainless steel Steel Bronze Guidance for specification option: Nickel Bronze. |
Recyclability | 100% |
Product certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Floor Gullies and Access Covers
