BioArmis

Designed to offer a hygienic finish to more traditional impact resistant systems, BioArmis® not only offers a solution to the results of impact and abrasion, it is clinically proven to actively reduce bacteria on its surface.

Available in wide range of bespoke colours, it is the ideal solution to maintenance, hygiene and design issues. Manufactured at 2 mm thick, it has the ability to be welded together to offer a hygienic, seamless finish.

Alternatively, it is available in a range of profiles to suit the project requirements. Heavy footfall and wheeled equipment cause severe damage to walls and doors on a regular basis. The textured finish on the surface of the BioArmis® system is designed to hide bumps and scratches and the increased impact resistance helps to reduce the chances of dents and holes being created.

The spread of bacteria is a major concern in every environment. With BioCote® technology, BioArmis® will protect walls and doors against bacterial growth, as well as bumps, dents and scratches.

The product has attained the required BS 476-6 and BS 476-7 fire certification; it is therefore ideal for use in circulation or exit routes.

Silver Ion Technology:

On a product treated with BioCote®, the level of microbes which may affect the aesthetics and performance of BioClad® is reduced by up to 99.9% in two hours, with an 80% reduction in the first 15 minutes compared to an unprotected surface where they can proliferate at dramatic rates. The additives used in BioCote® technology are registered with the following bodies:

  • Environmental Protection Agency (EPA)
  • Food and Drug Administration (FDA)
  • Biocidal Products Regulation (BPR)

Approvals:

  • Tested in accordance with ISO 22196. Proven effective against E.Coli and MRSA
  • BioCote® Technology under laboratory conditions has been proven effective in inactivating the influenza virus (H1N1)
  • BioCote® is the only antimicrobial technology certified by HACCP International



BioClad Antimicrobial Hygienic Wall Cladding

BioClad® antimicrobial polyvinyl chloride (PVC) panel containing Biocote silver ion antimicrobial additive throughout the product thickness to inhibit the growth of bacteria and mould. BioClad® Antimicrobial PVC provides a lifetime guarantee from a single source manufacturer and incorporates a unique installer warranty.

Antimicrobial Performance:

BioClad® impregnated with BioCote silver ion technology. Once incorporated, the antimicrobial additive provides continuous built-in antimicrobial protection for the lifetime of the product. The level of microbes which may affect the aesthetics and performance of BioClad is reduced up to 99.9% in two hours, with an 80% reduction in the first 15 minutes compared to an unprotected surface where they can proliferate at dramatic rates.

  • BioClad is independently tested in accordance with ISO 22196.
  • BioClad is proven to be effective against E.Coli & MRSA.
  • BioClad operates a unique identification system with anti-fraud laser detection technology.

Suitable substrates:

  • Good quality fair faced brick or blockwork.
  • Sand and cement rendering 1:3 with a steel trowel finish.
  • 12.5 mm thick plasterboard.
  • Ceramic tiles which are securely bonded to substrate.
  • 9 mm (minimum) W.P.B resin bonded to substrate.
  • Pink lightweight plasters are generally not suitable.
  • Some surfaces may need PVA sealer subject to site survey.

Typical applications:

Healthcare, food manufacturing areas, commercial kitchens, pharmaceutical areas, laboratories, showers, WCs and wet hygienic areas.

Installer selection:

BioClad recommends all products are fitted by approved installers; consult manufacturer for details.

BioClad The Vivid Colour Range Hygienic Wall Cladding

High density, high-quality polyvinyl chloride (PVC) system offering high impact resistance. An alternative to tiles, grout free, easy to clean with a gloss finish. Meets all EU regulations so ideal for food preparation areas and commercial kitchens.

Suitable substrates:

  • Good quality fair faced brick or blockwork.
  • Sand and cement rendering 1:3 with a steel trowel finish.
  • 12.5 mm thick plasterboard.
  • Ceramic tiles which are securely bonded to substrate.
  • 9 mm (minimum) W.P.B resin bonded to substrate.
  • Pink lightweight plasters are generally not suitable.
  • Some surfaces may need PVA sealer subject to site survey.

Typical applications:

Healthcare, food manufacturing areas, commercial kitchens, pharmaceutical areas, laboratories, showers, WCs and wet hygienic areas.

Installer selection:

BioClad recommends all products are fitted by approved installers; consult manufacturer for details.

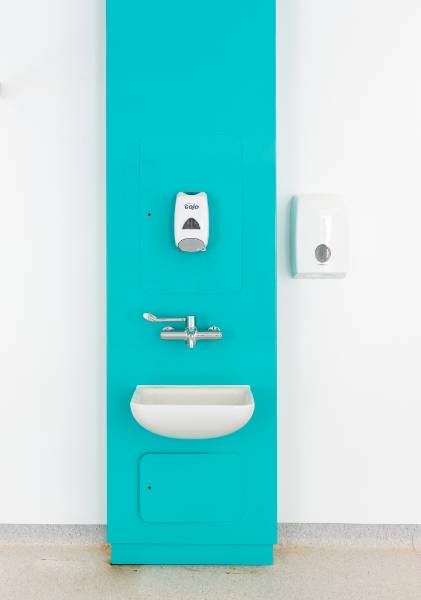

BioPod®

Designed to encapsulate the pipework, BioPod® is an aesthetically pleasing, hygienic finish to a common trade problem. Pre-fabricated with no joints, it comes complete with access panels, basin and tap, and is wrapped in BioClad® antimicrobial wall cladding. The product is designed to offer a joint free, fully accessible, ultra-hygienic unit, that is easy to install, but even easier to maintain.

It is delivered pre-plumbed, reducing the installation period. The simple install procedure allows the reduction of the amount of trades required, saving time and money. Wrapped in BioClad® antimicrobial PVC, it offers an unrivalled protection against bacterial growth. The plinth detail allows a neat, hygienic sealed joint to the vinyl floor. Compatible with UK HTM Regulations.

It comes in a standard size and specification, however, it can be built to a bespoke specification. It is not even limited to a wash station; showers, sluice units or WC basins are also available in a wide selection of colours. In addition, the product can be built to conform to anti-ligature specifications.

Benefits:

  • Joint free shell - easy to clean with no additional areas for bacteria or germs to colonize.
  • Wrapped in BioClad® PVC - proven to reduce bacteria by up to 99.9% within two hours; ideal for areas where hygiene is of paramount importance. Available in a range of bespoke colours.

BioPod® IPS Wall Panelling

An aesthetically pleasing IPS wall panelling, which has been wrapped in BioClad® polyvinyl chloride (PVC) antimicrobial wall cladding.

Features and benefits:

  • Pre-fabricated with no horizontal joints.
  • Comes complete with built-in, hinged and lockable access panels.
  • Designed to provide a streamlined, fully accessible and easy to maintain unit.
  • Ultra-hygienic, offering high protection against bacterial growth.
  • Supplied with a medium density fibreboard (MDF) site frame that consists of skirting, horizontal and vertical rails which slot and screw together, speeding up the installation process.
  • Delivered pre-plumbed with HBN 10 compliant sanitaryware.
  • BioClad® PVC antimicrobial wall cladding offers protection against bacterial growth - and is proven to reduce bacteria by up to 99.99% within two hours.
  • Internal and external corners and returns are pre-formed to eliminate any need for mastic joints.
  • Fully framed with a 2.5 mm panel overlap which is easy to clean, with no additional areas for bacteria or germs to colonize.
  • Available in a variety of colours.
  • Includes two lockable access panels, on projected hinges, pre-cut where applicable.
  • Manufactured to suit ceiling heights of up to 3000 mm.

Applications:

Suited for use in bespoke specification to suit WC's, wash basins, showers and sluice units in commercial applications.

H Trim - Cover strip

High impact PVC co-extrusion fixed to walls with sheets pushed into each section.

J Trim - Edge trim

High impact PVC co-extrusion fixed to walls with sheets pushed into the end, which can be used at the top, bottom and when starting/ finishing cladding.
