Summary

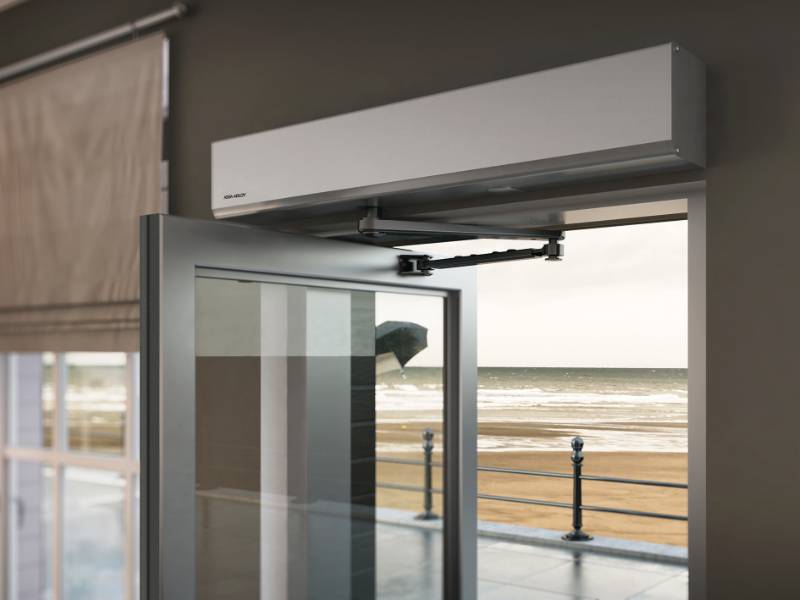

A fully suspended automated balance swinging door system, for narrow entrances and/or exposed locations.
A fully suspended automated balance swinging door system, for narrow entrances and/or exposed locations.
Application
Available for entrances to a range of building types.
Available for entrances to a range of building types.
Description
A fully suspended automated balance swinging door system, for narrow entrances and/or exposed locations. It is completely suspended and pivoted within the frame, does not require guide grooves in the floor; the system is equipped with finger guards fitted between the door leaf and jamb to reduce the risk of accidents. Tailor made to suit differing requirements and is delivered with door frame and glazed doors leaves.
Features and benefits:
- Completely suspended and pivoted within the frame.
- Multiple accessories available.
- Various sizes.
A fully suspended automated balance swinging door system, for narrow entrances and/or exposed locations. It is completely suspended and pivoted within the frame, does not require guide grooves in the floor; the system is equipped with finger guards fitted between the door leaf and jamb to reduce the risk of accidents. Tailor made to suit differing requirements and is delivered with door frame and glazed doors leaves.
Features and benefits:
- Completely suspended and pivoted within the frame.
- Multiple accessories available.
- Various sizes.
Digital objects
Color
Silver
Silver
Finish
Anodized
Anodized
Material
Aluminium
Aluminium
Length
714 mm
714 mm
Width
130 mm
130 mm
Height
110 mm
110 mm
SKU Code
SW200
SW200
Specification
Classification data
Configuration
Right hand single., Left hand single.
Right hand double., Left hand double.
Doorset size
-
-
Frame
-
-
Material
Aluminium.
Aluminium.
Perimeter seals or inserts
Finger guards to the pivot stiles.
Finger guards to the pivot stiles.
Finish
-
-
Coating
Anodized.
Anodized.
Colour
Silver.
Silver.
Door leaf
-
-
Thickness
48 mm.
48 mm.
Panel details
8 mm laminated glass, 22 mm glass double glazed unit.
8 mm laminated glass, 22 mm glass double glazed unit.
Material
Anodized aluminium.
Anodized aluminium.
Glazing
-
-
Type
8 mm laminated glass, 22 mm glass double glazed unit.
8 mm laminated glass, 22 mm glass double glazed unit.
Finish
-
-
Coating
Anodized.
Anodized.
External colour
Silver.
Silver.
Internal colour
As External.
As External.
Accessories
None., Activation unit., Door opener and arm system., Door position indicator., Electro-magnetic lock., Espagnolette lock., Mechanical hook bolt lock on the door leaf., Midrail., Programme selectors., Safety barriers.
None., Activation unit., Door opener and arm system., Door position indicator., Electro-magnetic lock., Espagnolette lock., Mechanical hook bolt lock on the door leaf., Midrail., Programme selectors., Safety barriers.
Additional properties
Perimeter seals or inserts
Finger guards to the pivot stiles.
Finger guards to the pivot stiles.
Outer dimensions
45 x 114 mm.
45 x 114 mm.
Frame width
852—1190 mm.
1482—2240 mm.
Height
2090—2740 mm.
2090—2740 mm.
Controller
Surface mounted., Concealed.
Surface mounted., Concealed.
Power supply
100—240 VAC +10/-15%, 50/60 Hz.
100—240 VAC +10/-15%, 50/60 Hz.
Power consumption
300 W.
300 W.
Voltage
24 V DC, max. 700 mA.
24 V DC, max. 700 mA.
Ambient temperature
-20 °C to +45 °C.
-20 °C to +45 °C.
