Summary
Two-part drain for applications where the drain needs to be sealed at VCL level
-
-
Application
- Outlets for use where a sealed interface is required at VCL level as well as roof level
- Suitable for use in new build or refurbishment applications
-
-
Description

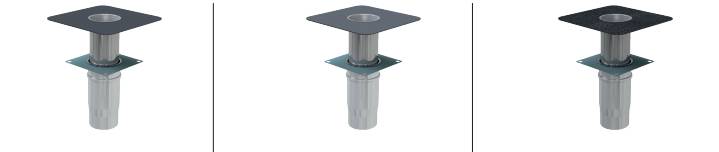

DuoDrain outlets for roof drainage systems.
Features and benefits:
- Both outlet sections have durable stainless steel spigot
- Membrane is easily attached to the upper outlet with either heat or solvent welding. Easy installation
- Lower outlet available in plain flange or SBS
- Compatible with most types of VCL
- A variety of leaf guards are available for the upper outlet
- Manufactured in accordance with ISO 9001, ISO 14001 and ISO 45001 Quality and Management Systems
- Primed plain flange on lower outlet (PF range)
- Bituminous SBS flange on lower outlet (SBS range)
-
-
Color
Grey, Black
-
-
Material
Stainless steel
-
-
Width
75 mm, 110 mm, 125 mm, 160 mm
-
-
SKU Code
FO-DUO-
-
-
Specification
Classification data
Material
Stainless steel.
-
-
Integral accessories
Not required., Leaf guard.
-
-
Additional properties
Pipe sizes
135—143 mm.
-
-
Size
350 x 350 mm.
-
-
Type
Light grey PVC.
-
-
Spigot diameter (external)
125 mm.
-
-
Spigot length
Upper outlet 400 mm, lower outlet 280 mm.
-
-
Flange
Bituminous SBS flange.
-
-
