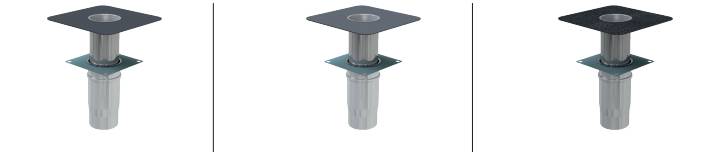

FarBo® DuoDrain Outlets

Verified by manufacturer 24 days ago

FO-DUO-PF-75/PVC DK GY

Fixfast Ltd Variant:

Two-part drain for applications where the drain needs to be sealed at VCL level

Jump to:
+44 (0)1732 882387 Website

Application

  • Outlets for use where a sealed interface is required at VCL level as well as roof level
  • Suitable for use in new build or refurbishment applications

Description

DuoDrain outlets for roof drainage systems.


Features and benefits:

  • Both outlet sections have durable stainless steel spigot
  • Membrane is easily attached to the upper outlet with either heat or solvent welding. Easy installation
  • Lower outlet available in plain flange or SBS
  • Compatible with most types of VCL
  • A variety of leaf guards are available for the upper outlet
  • Manufactured in accordance with ISO 9001, ISO 14001 and ISO 45001 Quality and Management Systems
  • Primed plain flange on lower outlet (PF range)
  • Bituminous SBS flange on lower outlet (SBS range)

General information

Color

Grey

Guidance for specification option:

Light grey PVC or dark grey PVC.

Black

Guidance for specification option:

Bituminous.

Material

Stainless steel

Width

75 mm

110 mm

125 mm

160 mm

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

CAWS

R10/365 Proprietary rainwater outlets

R10/26 Proprietary rainwater outlets

Product range

Roof Drainage Systems

Specification data - Gravity rainwater outlets

Material

Stainless steel.

Integral accessories

Not required.

Leaf guard.

Guidance for specification option:

A variety of leaf guards are available for the upper outlet, consult manufacturer for options.

Pipe sizes

82—95 mm.

Manufacturer guidance

To suit pipe size:

Size

350 x 350 mm.

Manufacturer guidance

Membraner size.

Type

Dark grey PVC.

Manufacturer guidance

Membrane type.

Spigot diameter (external)

75 mm.

Manufacturer guidance

Spigot Overall Diameter.

Spigot length

Upper outlet 400 mm, lower outlet 280 mm.

Manufacturer guidance

Spigot Length.

Flange

Primed plain flange.

Guidance for specification option:

On lower outlet.
