Summary

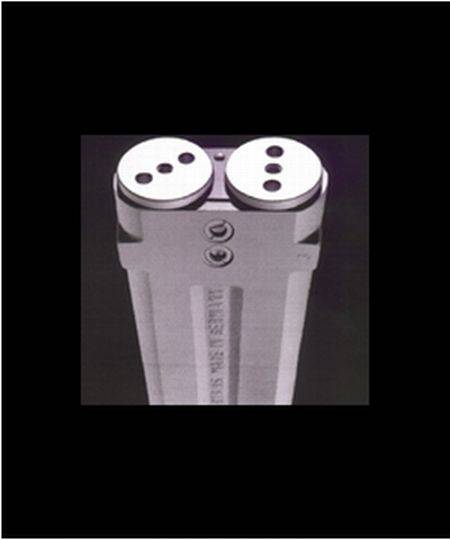

Concealed, transom mounted door closer.
Concealed, transom mounted door closer.
SKU Code
-
-
GTIN/EAN
-
-
Additional properties
Pivot point
70 mm., 65 mm., Not applicable.
70 mm., 65 mm., Not applicable.
Spindle insert extension
5 mm., 10 mm., Standard.
5 mm., 10 mm., Standard.
Hold-open angle
90°., 105°., No hold-open.
90°., 105°., No hold-open.
Accessories
None., 8520 G Fixing bracket., 8560 G Floor pivot bearing.
None., 8510 Side arm and channel., 8521 Weld-on extension., 8530 Closer arm with arm channel., 8531 Closer arm with angle bracket., 8534 Closer arm with arm channel., 8535 Closer arm with angle bracket., 8550/1 Floor pivot set., 8552/3 Floor pivot set., 8554/6 Threshold pivot set., 8555/7 Threshold pivot set.
Dimensions
323 x 90 x 38 mm.
323 x 90 x 38 mm.
Power size
EN 3., EN 4., EN 5.
EN 3., EN 4., EN 5.
