RTS 85 Door Closer
Verified by manufacturer 7 months ago
RTS 85 G - For tempered glass doors
RTS 85 G - For tempered glass doors

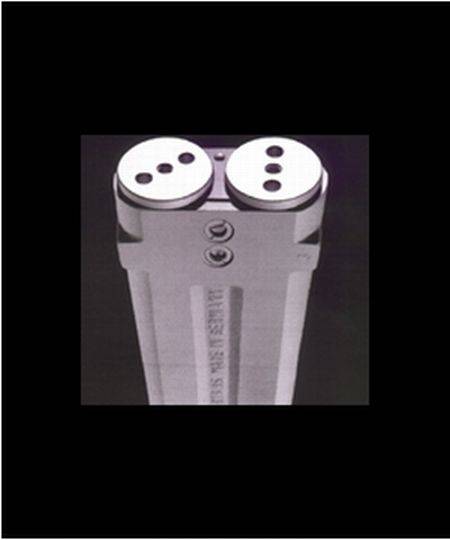

Concealed, transom mounted door closer.
Application
Suitable for glass, metal or wood internal doors (single or double action).
Description
Concealed, transom-mounted closer for installations where door control must be provided without compromising the aesthetic appearance of the door, e.g. in shopfitting.
Features and benefits:
- Smooth, fully controlled closing, with adjustable speed.
- Adjustable final closing.
- Door opening angle maximum 130° (door stops must be used with heavy doors that can be opened further).
- Progressive, mechanical backcheck option available.
- Installation and setting adjustment possible before fixing the doorset on site.
- No floor preparation necessary.
- Positive 'zero' position for double action doors – easy to adjust.
General information
Finish | Manufacturer guidanceConsult manufacturer for range and options. |
Uniclass | |
CAWS | P21/12 Controlled door closers P21/410 Controlled door closers |
Product range |
Specification data - Controlled door closers
Materials and finishes | |
Colour | Manufacturer guidanceConsult manufacturer for range and options. |
Pivot point | 70 mm. Guidance for specification option: For single and double action doors. 65 mm. Guidance for specification option: For tempered glass doors. Not applicable. |
Spindle insert extension | 5 mm. 10 mm. Standard. |
Hold-open angle | 90°. 105°. No hold-open. |
Accessories | None. 8520 G Fixing bracket. Guidance for specification option: For tempered glass doors: For fixing DORMA RTS in transom. 8560 G Floor pivot bearing. Guidance for specification option: For tempered glass doors: For doors up to 110 kg. Manufacturer guidanceConsult manufacturer for details. |
Dimensions | 323 x 90 x 38 mm. |
Power size | EN 3. EN 4. EN 5. |
