Summary

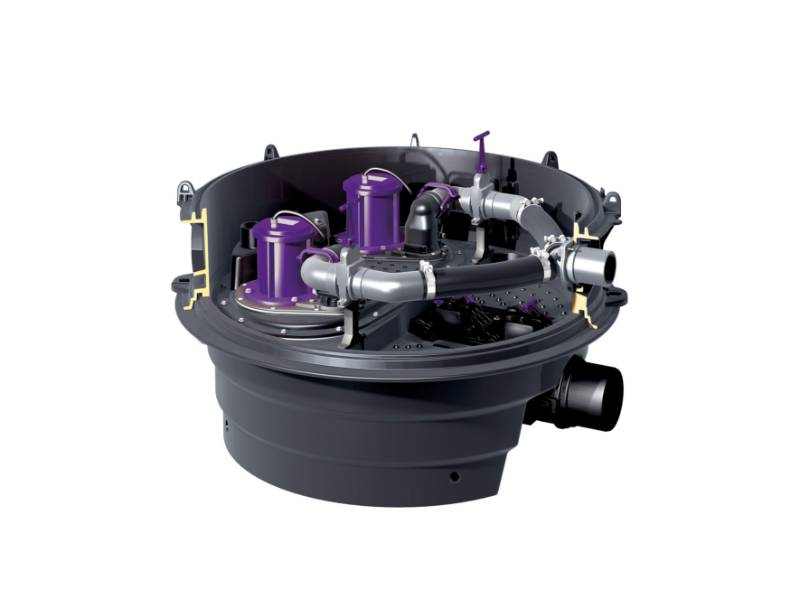

Base section for Ecolift XL hybrid lifting station where fre-standing set-up or installation in ground is required. With motor-driven flaps for wastewater with or without sewage.
-
-
Application
Hybrid lifting station, for dry, on-the-floor installation in frost-free rooms, outdoor underground installation or installation in a concrete floor in combination with an engineering
system chamber.
Note: The pressure pipe must be connected to a welded
polyethylene (PE) pipe; see manufacturer's literature for product-specific details.
-
-
Description
Base section for Ecolift XL hybrid lifting station where fre-standing set-up or installation in ground is required.
Where minimum installation height applies, see the KESSEL Ecolift XL Backwater Pumping Station 4 L/s to 20 L/s - Complete Unit (Minimum Installation Height) product.
Features and benefits:
- With motor-driven flaps for wastewater with or without sewage.
- All models are Duo (two pump), and can be specified with one or both flaps motor-driven (both allows the system to be used with sewage).
- Base unit houses pumps specified, and the unit is completed with one of a range of engineering system chambers (specified separately).
- Inlet/ outlet: 160 mm diameter.
- Includes Comfort Plus control unit.
- 230 V or 400 V (230 V version ready to plug in).
- Handles groundwater depths up to 3000 mm.
-
-
Color
Black
-
-
Material
Polyethylene (PE)
-
-
Specification
Classification data
Standard
To BS EN 13564-1.
-
-
Classification
Manufacturer's standard.
-
-
Form
Two pumps with one motor-driven backwater flap for wastewater without sewage.
-
-
Material
Polyethylene (PE).
-
-
Connections
Inlet/ outlet diameter: 160 mm.
-
-
Integral accessories
None., Extension section, 500 mm., Extension section, 250 mm., Set of connecting wedges for extension sections., Profiled gasket for extension sections., Cable attachment set., Cable piping gasket set., Cable extension for flap motor, 10 m., Cable extension for probe(s), 10 m., Cable extension for pump SPF 1400-S1, 10 m., TeleControl telemetric system., TeleControl telemetric system with antenna booster., TeleControl telemetric system with antenna booster and extension cable., Warning beacon., Air compressor., Air compressor with pressure hose extension., Kiosk for control unit, heating, warning beacon., Kiosk for heating and pressure pipe., Kiosk for control unit, modem, heating, warning beacon., Kiosk for control unit, modem, heating, warning beacon and pressure pipe.
-
-
Additional properties
Upper part
KESSEL System Chamber 1000Ø - 600Ø Opening,, KESSEL System Chamber 1000Ø - 800Ø Opening (waterproof concrete),, KESSEL System Chamber 1000Ø - 800Ø Opening,
-
-
Voltage
240 V.
-
-
