Summary
Preplumbed installation frame for ONE washbasin and wall-mounted tap.
-
-
Application
  • For drywall construction.
  • For installation in room-height pre-wall installations.
  • For installation in room-height installation walls.
  • For installation in room-height Geberit Duofix system walls.
  • Suitable for less-abled installation.
  • For Geberit ONE washbasins.
  • For Geberit ONE vanity basins.
  • For concealed taps.
  • For floor constructions 0–20 cm.
-
-
Description

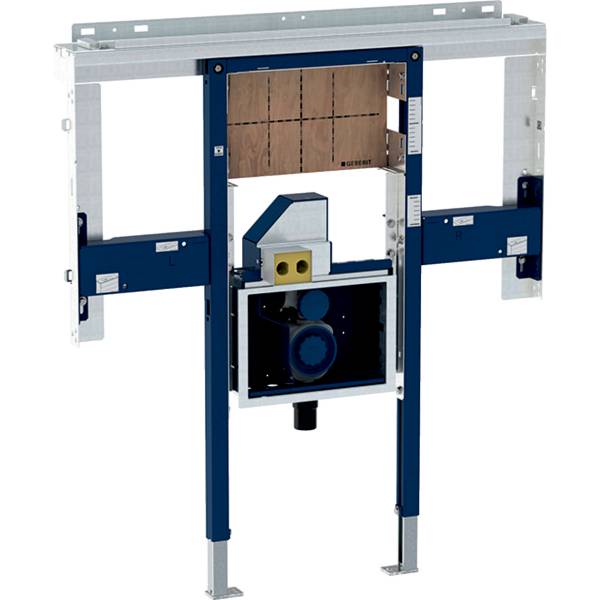

Duofix Frame for ONE washbasin and wall-mounted tap, room-height, with concealed turn trap, with concealed clou, is a self-supporting powder coated frame, with galvanized adjustable feet, non-slip leg supports and rotatable footplates. The mounting plate is made of waterproof bonded veneered wood and is adjustable in height and depth.


Features and benefits:

  • Frame with ø 9 mm drilling holes for fastening in wood frame construction.
  • Feet adjustable 0–20 cm.
  • Footplate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails.
  • Concealed turn trap with service opening.
  • In-wall cabinet with straight connector made of PE, ø 50 / 56 mm.
  • Outlet mounting box in concealed housing.


System components:

  • Crossbar for mirror cabinet
  • 2 side fastenings
  • 2 consoles
  • 2 threaded rods M10
  • Female socket for mains connection
  • Fastening material
-
-
Finish
Powder-coated
-
-
Size
800 x 140 x 1250 mm, 950 x 140 x 1250 mm, 1100 x 140 x 1250 mm, 1250 x 140 x 1250 mm
-
-
SKU Code
111.083.00.1, 111.084.00.1, 111.081.00.1, 111.082.00.1
-
-

Specification

Form
Support frames.
-
-
Size
800 x 140 x 1250 mm.
-
-
Accessories
115.420.11.1 Ready-to-fit set for Geberit ONE washbasin, floating design, white alpine., 115.420.DW.1 Ready-to-fit set for Geberit ONE washbasin, floating design, jet black RAL 9005., 115.424.00.1 Ready-to-fit set for Geberit ONE vanity basin., 111.848.00.1 Geberit Duofix set of foot extensions for floor construction 20–40 cm.
-
-

Additional properties

Width
750 mm.
-
-
