Duofix Frame for ONE washbasin and wall-mounted tap, room-height, with concealed turn trap, with concealed Clou
Compare variants

Duofix Frame for ONE washbasin and wall-mounted tap, room-height, with concealed turn trap, with concealed Clou

Verified by manufacturer 8 months ago

111.081.00.1, Duofix Frame for ONE washbasin and wall-mounted tap, room-height, with concealed turn trap, with concealed Clou: B=80cm, Washbasin width=75cm, H=125cm, T=14cm

Geberit Sales Ltd Variant:

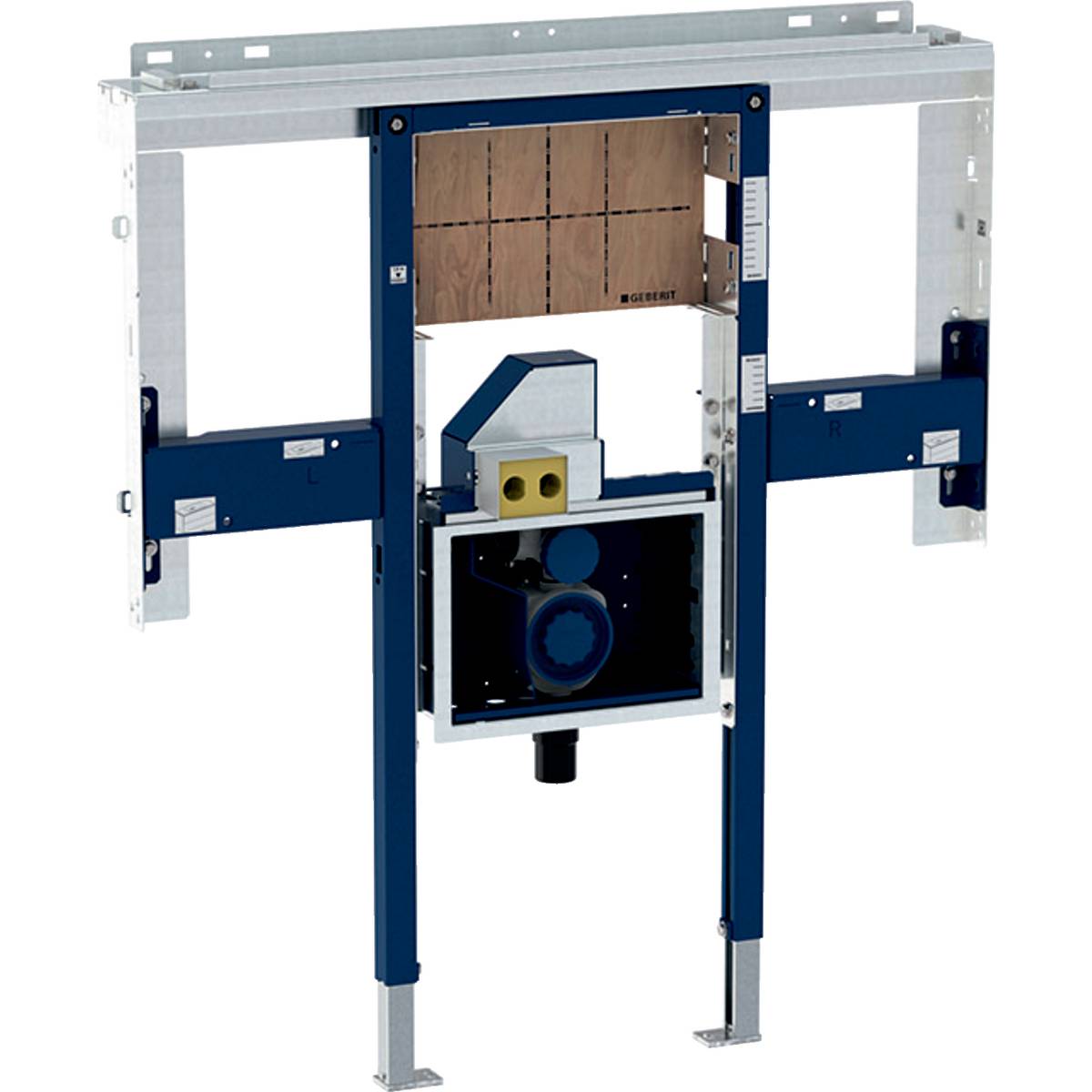

Preplumbed installation frame for ONE washbasin and wall-mounted tap.

Jump to:
+44 (0)1926 516800 www.geberit.co.uk

Application

  • For drywall construction.
  • For installation in room-height pre-wall installations.
  • For installation in room-height installation walls.
  • For installation in room-height Geberit Duofix system walls.
  • Suitable for less-abled installation.
  • For Geberit ONE washbasins.
  • For Geberit ONE vanity basins.
  • For concealed taps.
  • For floor constructions 0–20 cm.

Description

Duofix Frame for ONE washbasin and wall-mounted tap, room-height, with concealed turn trap, with concealed clou, is a self-supporting powder coated frame, with galvanized adjustable feet, non-slip leg supports and rotatable footplates. The mounting plate is made of waterproof bonded veneered wood and is adjustable in height and depth.


Features and benefits:

  • Frame with ø 9 mm drilling holes for fastening in wood frame construction.
  • Feet adjustable 0–20 cm.
  • Footplate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails.
  • Concealed turn trap with service opening.
  • In-wall cabinet with straight connector made of PE, ø 50 / 56 mm.
  • Outlet mounting box in concealed housing.


System components:

  • Crossbar for mirror cabinet
  • 2 side fastenings
  • 2 consoles
  • 2 threaded rods M10
  • Female socket for mains connection
  • Fastening material

General information

Finish

Powder-coated

Size

800 x 140 x 1250 mm

950 x 140 x 1250 mm

1100 x 140 x 1250 mm

1250 x 140 x 1250 mm

Uniclass

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/66 Pre-plumbed frame system

N13/500 Pre-plumbed frame system

Specification data - Pre-plumbed installation frames

Form

Support frames.

Size

800 x 140 x 1250 mm.

Accessories

115.420.11.1 Ready-to-fit set for Geberit ONE washbasin, floating design, white alpine.

115.420.DW.1 Ready-to-fit set for Geberit ONE washbasin, floating design, jet black RAL 9005.

115.424.00.1 Ready-to-fit set for Geberit ONE vanity basin.

111.848.00.1 Geberit Duofix set of foot extensions for floor construction 20–40 cm.

Width

Washbasin width.

750 mm.
