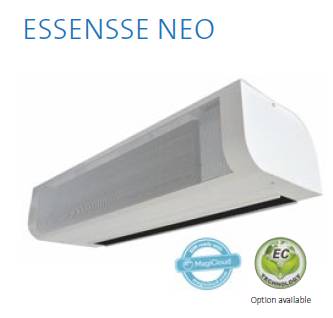

Essensse Neo Air Curtain Heater
Essensse Neo Air Curtain Heater
Essensse Neo Air Curtain Heater

Last verified by manufacturer over a year ago

JS Air Curtains

Last verified by manufacturer over a year ago

JS Air Curtains

Last verified by manufacturer over a year ago

JS Air Curtains
Summary
A horizontal air curtain.
-
-
Application

Suitable for a range of environments from small shops and restaurants to office buildings and banks.

-
-
Description

A high performance and visually attractive air curtain with adjustable air outlets.


Features and benefits:

  • Air is blown out steadily at high pressure through the unique "straw system" outlet with greater air flow to provide the best possible seal across a doorway.
  • The inlet grille acts as an air filter removing dust and airborne contaminants.
  • The grille can be periodically wiped or vacuumed, ensuring easy maintenance.
  • The AirGENIO comfort controller is supplied as standard, which offers automatic control with manual override to adjust the air curtain's performance efficiently to any application.
  • Option to upgrade to the advanced AirGENIO superior controller, which offers modulating heat output for both electric and water heaters using a suitable valve.
  • Tested to ISO 27327-1.
-
-
Shape
Rectangle
-
-
Color
White
-
-
Size
1190 x 377 x 252 mm, 1600 x 377 x 252 mm, 2100 x 377 x 252 mm, 2510 x 377 x 252 mm
-
-

Specification

Classification data
Third party certification
CE Marked.
-
-
Heating method
Electric.
-
-
Output
0.17 kW.
-
-
Air volume
1500 m³/h.
-
-
Mounting height
2.8 m.
-
-
Casing finish
Manufacturers standard.
-
-
Accessories
Not required., AirGENIO superior controller.
-
-

Additional properties

Voltage
400 V.
-
-
Frequency
50Hz.
-
-
Weight
25.5 kg.
-
-
Noise
53.8 dB.
-
-
Dimensions
1190 x 377 x 252 mm.
-
-
NominalHeatingCapacity
6.3 kW.
-
-
Fan
AC fan., EC fan.
-
-
