Extruded semi-rigid PVC sheet offering combined benefits of uPVC fire rated material with high-resolution digitally printed images and a UV cured clear hard coating.
Extruded semi-rigid PVC sheet offering combined benefits of uPVC fire rated material with high-resolution digitally printed images and a UV cured clear hard coating.
Other
Other
Gloss, Matt
Gloss, Matt
PVC
PVC
Rectangle
Rectangle
2440 mm, 2800 mm, 3050 mm
2440 mm, 2800 mm, 3050 mm
1220 mm
1220 mm
2.5 mm
2.5 mm
20 year
20 year
Specification
Solid PVC sheet.
Solid PVC sheet.
2.5 mm.
2.5 mm.
2440 x 1220 mm., 2800 x 1220 mm., 3050 x 1220 mm.
2440 x 1220 mm., 2800 x 1220 mm., 3050 x 1220 mm.
Matt.
Gloss.
Smooth concrete., Porous concrete., Natural oak., Ash oak., Split faced slate., Red brick.

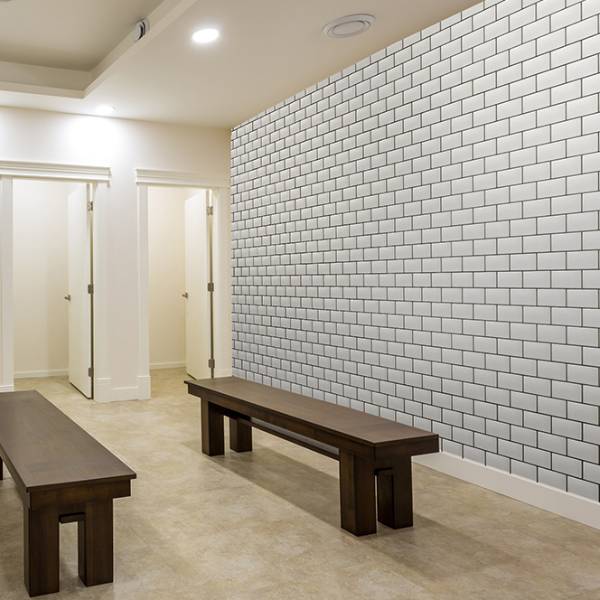

White metro tile., Black marble tile., White marble., Grey marble.
To BS 476-Part 6, V-0.
To BS 476-Part 7, Class 1.
To BS 476-Part 6, V-0.
To BS 476-Part 7, Class 1.
Additional properties
To DIN ISO 1183, 1.45 g/cm³.
To DIN ISO 1183, 1.45 g/cm³.
To EN ISO 62, 0.20%.
To EN ISO 62, 0.20%.
0–60℃.
0–60℃.
To DIN EN ISO 527-1, >45 MPa.
To DIN EN ISO 527, >20 (at break).
To DIN EN ISO 527, >20 (at break).
To DIN EN ISO 527-1, >45 MPa.
To DIN EN ISO 527, >20 (at break).
To DIN EN ISO 527, >20 (at break).
To EN ISO 527, >45%.
To EN ISO 527, >45%.
To DIN EN ISO 868, 68.
To DIN EN ISO 868, 68.
To ISO 527-1,2, >2500 MPa.
To ISO 527-1,2, >2500 MPa.
To DIN EN ISO 306, 70°C.
To DIN EN ISO 306, 70°C.
To DIN 53752, 0.7 m/(m.K).
To DIN 53752, 0.7 m/(m.K).
To DIN 52612, 0.2 W/mK.
To DIN 52612, 0.2 W/mK.
To DIN 53482, 10^13 Ω.
To DIN 53482, 10^13 Ω.
To MSZ EN 60243-1, 18 kV/mm.
To MSZ EN 60243-1, 18 kV/mm.
Sustainability data
No
No
Hungary
Hungary
United Kingdom
United Kingdom
PVC
PVC
68 Scudamore Rd, Leicester LE3 1UA, UK
68 Scudamore Rd, Leicester LE3 1UA, UK
100%
100%
100 %
100 %
20 year
20 year
