Summary

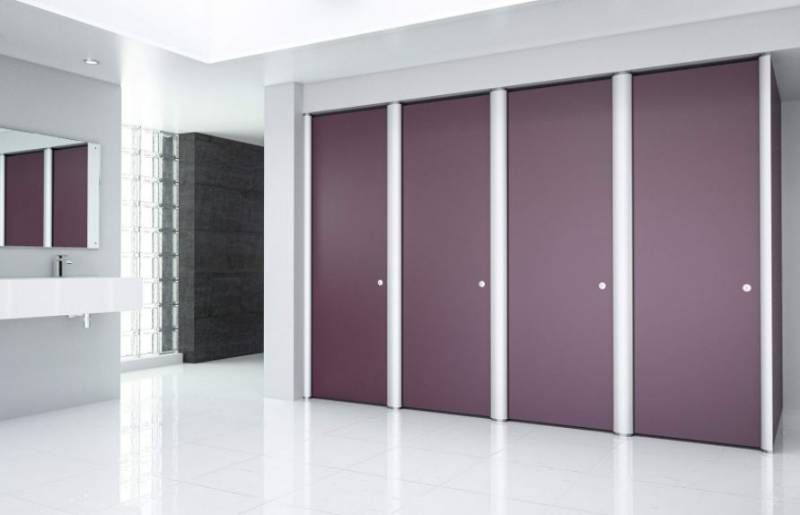

A stylish and strong metal-framed cubicle with curved aluminium floor-mounted pilasters.
A stylish and strong metal-framed cubicle with curved aluminium floor-mounted pilasters.
A stylish and strong metal-framed cubicle with curved aluminium floor-mounted pilasters.
Application
Modern, stylish washroom environments.
MFC/Veneer: Recommended for dry areas.
HPL: medium-to-heavy use in dry areas and provides a versatile solution for all sectors.
SGL: Heavy use with unrivalled strength and durability, specifically for wet areas.
Modern, stylish washroom environments.
MFC/Veneer: Recommended for dry areas.
HPL: medium-to-heavy use in dry areas and provides a versatile solution for all sectors.
SGL: Heavy use with unrivalled strength and durability, specifically for wet areas.
Modern, stylish washroom environments.
MFC/Veneer: Recommended for dry areas.
HPL: medium-to-heavy use in dry areas and provides a versatile solution for all sectors.
SGL: Heavy use with unrivalled strength and durability, specifically for wet areas.
Description
A stylish powder coated cubicle with smooth, curved aluminium pilasters.
Features and benefits:
- Stylish and durable, the frame features smooth, curved aluminium pilasters mounted into moulded shoes and a continuous headrail.
- Available with low floor clearance to doors.
- Panels are manufactured to specific site dimensions.
- Light Grey lock body and faceplate, also available in stainless steel.
Components:
- High Pressure Laminate (HPL) and Melamine Faced Chipboard (MFC), supplied square edged with matching 1 mm PVC lipping.
- Solid grade laminate panels (SGL), supplied with polished black radiused edges.
- Frame comprising headrail, pilaster shoe, hinges and channel.
A stylish powder coated cubicle with smooth, curved aluminium pilasters.
Features and benefits:
- Stylish and durable, the frame features smooth, curved aluminium pilasters mounted into moulded shoes and a continuous headrail.
- Available with low floor clearance to doors.
- Panels are manufactured to specific site dimensions.
- Light Grey lock body and faceplate, also available in stainless steel.
Components:
- High Pressure Laminate (HPL) and Melamine Faced Chipboard (MFC), supplied square edged with matching 1 mm PVC lipping.
- Solid grade laminate panels (SGL), supplied with polished black radiused edges.
- Frame comprising headrail, pilaster shoe, hinges and channel.
A stylish powder coated cubicle with smooth, curved aluminium pilasters.
Features and benefits:
- Stylish and durable, the frame features smooth, curved aluminium pilasters mounted into moulded shoes and a continuous headrail.
- Available with low floor clearance to doors.
- Panels are manufactured to specific site dimensions.
- Light Grey lock body and faceplate, also available in stainless steel.
Components:
- High Pressure Laminate (HPL) and Melamine Faced Chipboard (MFC), supplied square edged with matching 1 mm PVC lipping.
- Solid grade laminate panels (SGL), supplied with polished black radiused edges.
- Frame comprising headrail, pilaster shoe, hinges and channel.
Digital objects
Color
Other
Other
Other
Finish
Powder-coated, Laminated
Powder-coated, Laminated
Powder-coated, Laminated
Material
Aluminium, MFC, Laminate, Wood
Aluminium, MFC, Laminate, Wood
Aluminium, MFC, Laminate, Wood
Shape
Rectangle
Rectangle
Rectangle
Length
Bespoke
Bespoke
Bespoke
Width
Bespoke
Bespoke
Bespoke
Height
2020 mm, Bespoke
2020 mm, Bespoke
2020 mm, Bespoke
Specification
Panels
HPL facings, 630 kg/m³ grade chipboard backing, square edged.
MFC, 630 kg/m³ grade chipboard backing, square edged.
SGL panel, 1400 kg/m³, polished black, radius edges.
Panel supports
Smooth curved aluminium frame with pilasters, floor-mounted.
Smooth curved aluminium frame with pilasters, floor-mounted.
Smooth curved aluminium frame with pilasters, floor-mounted.
Doors
HPL facings, 630 kg/m³ grade chipboard backing, square edged.
MFC, 630 kg/m³ grade chipboard backing, square edged.
SGL panel, 1400 kg/m³, polished black, radius edges.
Lippings
1 mm PVC lipping.
1 mm PVC lipping.
Not applicable.
Hardware
Headrail, pilaster shoe, hinges and channel.
Headrail, pilaster shoe, hinges and channel.
Headrail, pilaster shoe, hinges and channel.
System accessories
Not required., Wood veneer doors., Soap dispensers., Paper towel dispensers., Toilet roll holders., Hand dryers., Coat hooks., Door handles.
Not required., Wood veneer doors., Soap dispensers., Paper towel dispensers., Toilet roll holders., Hand dryers., Coat hooks., Door handles.
Not required., Wood veneer doors., Soap dispensers., Paper towel dispensers., Toilet roll holders., Hand dryers., Coat hooks., Door handles.
Additional properties
Height (Refer to manufacturer's guidance)
Standard: 1940 mm / Maximum: 2810 mm., Standard: 2020 mm / Maximum: 2890 mm., As drawing/ schedule/ bespoke/ floor to ceiling.
Standard: 2020 mm, Maximum: 2600 mm., As drawing/ schedule/ bespoke/ floor to ceiling.
Standard: 1940 mm / Maximum: 2810 mm., Standard: 2020 mm / Maximum: 2890 mm., As drawing/ schedule/ bespoke/ floor to ceiling.
Overall thickness
19 mm (nominal).
19 mm (nominal).
13 mm (nominal).
Colours:
Laminate colours.
Laminate colours.
Laminate colours.
Pilasters & Headrail
Powder-coated aluminium.
Powder-coated aluminium.
Powder-coated aluminium.
Faceplate
Stainless Steel., Light Grey.
Stainless Steel., Light Grey.
Stainless Steel., Light Grey.
Hinges & Channel
Powder-coated aluminium.
Powder-coated aluminium.
Powder-coated aluminium.
Pilaster Foot
20 mm Powder-Coated Aluminium., 100 mm Powder-Coated Aluminium.
20 mm Powder-Coated Aluminium., 100 mm Powder-Coated Aluminium.
20 mm Powder-Coated Aluminium., 100 mm Powder-Coated Aluminium.
Clearance
Ceiling: 20 mm., Ceiling: Minimum 150 mm.
Ceiling: 20 mm., Ceiling: Minimum 150 mm.
Ceiling: 20 mm., Ceiling: Minimum 150 mm.
