Developed as an expansion of the original Crittall Corporate^® W20 range, Corporate^® MW40 is designed to replicate the W20 while allowing thicker and larger pane sizes to be specified. Corporate MW40 allows the same comprehensive range of opening configurations as Corporate^® W20 and now incorporates double weatherstripping.

Strong, slim framing allows for the creation of large expanses of glass that maximize the benefit of natural daylight.

Features and benefits:

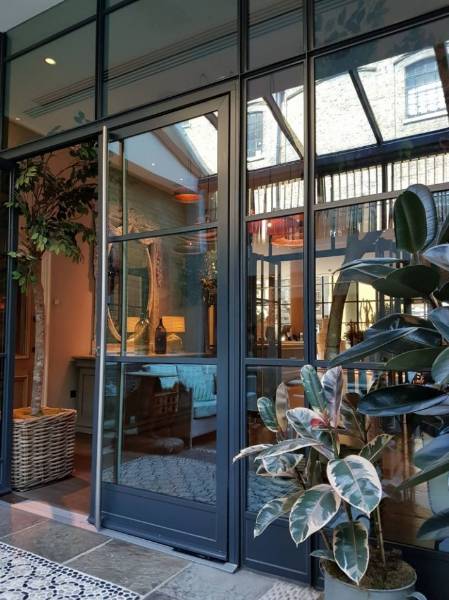

• Doors are also available in the Corporate MW40 range, providing designers with a total system solution.
• Corporate MW40 door frames match the slim sightlines of the windows.

Dimensions:

All maximum sizes are given for guidance purposes only. They assume the use of standard hardware specified for each type. Maximum sizes may not be achievable when heavy glass is used. Consult manufacturer for advice.

Fixed light:

• Maximum width – 3050 mm.
• Maximum height – 3050 mm.
• Maximum perimeter – 9760 mm.

Top Hung:

• Maximum width – 1830 mm.
• Maximum height – 1830 mm.
• Maximum perimeter – 6400 mm.

Projected Top Hung:

• Maximum width – 1700 mm.
• Maximum height – 1500 mm.
• Maximum perimeter – 5400 mm.

Folder opening in or out:

• Maximum width – 1525 mm.
• Maximum height – 2440 mm.
• Maximum perimeter – 7620 mm.

Side Hung opening in or out:

• Maximum width – 915 mm.
• Maximum height – 2440 mm.
• Maximum perimeter – 6400 mm.

Projected Side Hung:

• Maximum width – 800 mm.
• Maximum height – 1700 mm.
• Maximum perimeter – 5000 mm.

Bottom Hung:

• Maximum width – 1800 mm.
• Maximum height – 1200 mm.
• Maximum perimeter – 6000 mm.

Vertical Pivot:

• Maximum width – 1300 mm.
• Maximum height – 2440 mm.
• Maximum perimeter – 6400 mm.

Horizontal Pivot:

• Maximum width – 1830 mm.
• Maximum height – 1830 mm.
• Maximum perimeter – 6400 mm.

Single Door opening in or out:

• Maximum width – 915 mm.
• Maximum height – 2440 mm.
• Maximum perimeter – 6400 mm.

Double Doors opening in or out:

• Maximum width – 1830 mm.
• Maximum height – 2440 mm.
• Maximum perimeter – 8230 mm.
