SmartStack GRP Brick Effect Chimney
SmartStack GRP Brick Effect Chimney

Last verified by manufacturer over a year ago

Stormking Plastics Ltd

GRP render

Last verified by manufacturer over a year ago

Stormking Plastics Ltd

Reproduction facing brick

Summary

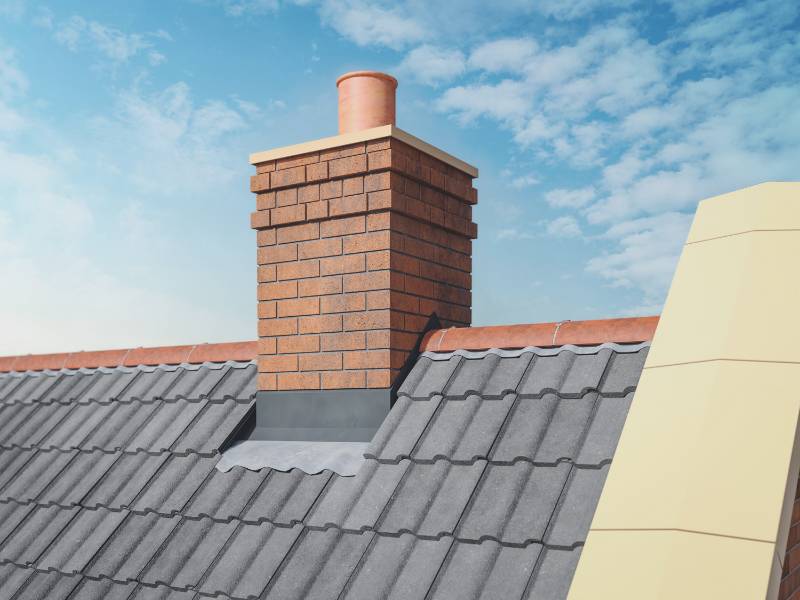

GRP brick-effect chimney.
GRP brick-effect chimney.
Application

Suitable for use on pitched slated or tiled roofs with a minimum pitch of 30 degrees, either at the ridge or on the slope of the roof, in new constructions.

Suitable for use on pitched slated or tiled roofs with a minimum pitch of 30 degrees, either at the ridge or on the slope of the roof, in new constructions.

Description

SmartStack GRP Chimney consists of a GRP chimney stack including a base plinth, flaunching with ventilation, chimney pot, side gutters, expanding foam strip and lead apron flashing, for use on roof ridges and slopes. The chimney is available in one and two pot versions, and in three brick colours (buff, standard red and burnt red) and two render colours (white and cream). The brick and render colours can be colour-matched to the bricks/render of the building.


The chimney core, base plinth, flaunching and chimney pot(s) are moulded from GRP and bonded with GRP laminates. The internal structural framework, fittings and ventilation strips are then installed within the chimney, cut and bonded to the chimney core. The lead apron flashings are fitted, and expanding foam strip is fixed to the predrilled gutter flanges. Finally, the lifting eye is installed and the GRP pot(s), with an internal screwed fixing adaptor, is packed loose with the chimney.


Smartstack is an all in one solution that cuts the cost of labour and materials.


Features and benefits:

  • No maintenance costs.
  • No leaks, BBA certified.
  • No brick supply or cutting.
  • Anti-condensation, positive ventilation.
  • Intricate GRP brick replicas to match your street scene.
  • All flashings and lead apron incorporated into SmartStack.
  • Excellent drainage via concealed channel.
  • Lightweight, no additional loading to roof structure.
  • Consistently perfect aesthetics.
  • Service life in excess of 25 years.

SmartStack GRP Chimney consists of a GRP chimney stack including a base plinth, flaunching with ventilation, chimney pot, side gutters, expanding foam strip and lead apron flashing, for use on roof ridges and slopes. The chimney is available in one and two pot versions, and in three brick colours (buff, standard red and burnt red) and two render colours (white and cream). The brick and render colours can be colour-matched to the bricks/render of the building.


The chimney core, base plinth, flaunching and chimney pot(s) are moulded from GRP and bonded with GRP laminates. The internal structural framework, fittings and ventilation strips are then installed within the chimney, cut and bonded to the chimney core. The lead apron flashings are fitted, and expanding foam strip is fixed to the predrilled gutter flanges. Finally, the lifting eye is installed and the GRP pot(s), with an internal screwed fixing adaptor, is packed loose with the chimney.


Smartstack is an all in one solution that cuts the cost of labour and materials.


Features and benefits:

  • No maintenance costs.
  • No leaks, BBA certified.
  • No brick supply or cutting.
  • Anti-condensation, positive ventilation.
  • Intricate GRP brick replicas to match your street scene.
  • All flashings and lead apron incorporated into SmartStack.
  • Excellent drainage via concealed channel.
  • Lightweight, no additional loading to roof structure.
  • Consistently perfect aesthetics.
  • Service life in excess of 25 years.
Digital objects
Shape
Square, Rectangle, Other
Square, Rectangle, Other
Color
Yellow, Red, Other, White, Cream
Yellow, Red, Other, White, Cream
Finish
Brick, Render
Brick, Render
Material
GRP
GRP
Warranty description
Two year
Two year
Size
665 x 665 mm
665 x 665 mm

Specification

Style
Ridge cut., Rafter cut.
Ridge cut., Rafter cut.
Colour
White., Cream.
Buff., Red., Burnt red.
Cross section
-
-
Base
Square.
Square.
General
Square.
Square.
Top
Circular.
Circular.
Size
-
-
Base (internal)
665 x 665 mm.
665 x 665 mm.
Height
376 mm.
376 mm.

Additional properties

Design
Single pot.
Single pot.
Surface finish
GRP render.
Reproduction facing brick.
Attached flashing
Lead apron flashing.
Lead apron flashing.
Gutter
Side gutter.
Side gutter.

Sustainability data

Country of product manufacture
United Kingdom
United Kingdom
