Summary

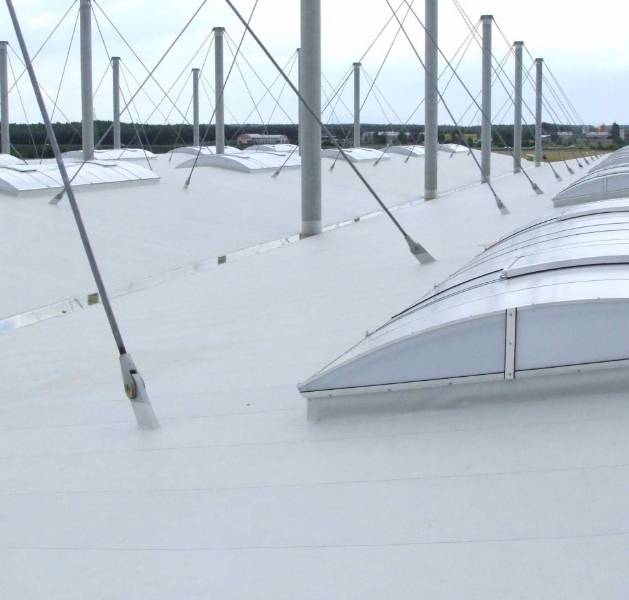

Sustainable thermoplastic polyolefin (TPO) single ply roofing membrane, mechanically fixed.
Sustainable thermoplastic polyolefin (TPO) single ply roofing membrane, mechanically fixed.
Color
Grey, Other
Grey, Other
Finish
Smooth
Smooth
Material
Thermoplastic elastomer (TPE)
Thermoplastic elastomer (TPE)
Shape
Rectangle
Rectangle
Length
20000 mm
20000 mm
Width
1000 mm
1000 mm
Height
1.2 mm
1.2 mm
SKU Code
-
-
GTIN/EAN
-
-
Specification
Air and vapour control layer
-
-
Type
Bailey Poly-Vap 1000 gauge polythene vapour barrier.
Bailey Poly-Vap 1000 gauge polythene vapour barrier.
Attachment
Loose-laid - Fixed by mechanical fixing of subsequent layers.
Loose-laid - Fixed by mechanical fixing of subsequent layers.
Insulation
-
-
Type
Bailey Sure-Therm PIR bitumen-faced flat board insulation, __ mm., Bailey Sure-Therm PIR bitumen-faced tapered insulation scheme, __ falls., Bailey Sure-Therm PIR glass tissue-faced flat board insulation, __ mm., Bailey Sure-Therm PIR glass tissue-faced tapered insulation scheme, __ falls., Bailey Sure-Therm non-combustible mineral wool flat board, __ mm., Bailey Sure-Therm non-combustible mineral wool tapered insulation scheme, __ falls.
Bailey Sure-Therm PIR bitumen-faced flat board insulation, __ mm., Bailey Sure-Therm PIR bitumen-faced tapered insulation scheme, __ falls., Bailey Sure-Therm PIR glass tissue-faced flat board insulation, __ mm., Bailey Sure-Therm PIR glass tissue-faced tapered insulation scheme, __ falls., Bailey Sure-Therm non-combustible mineral wool flat board, __ mm., Bailey Sure-Therm non-combustible mineral wool tapered insulation scheme, __ falls.
Attachment
Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix steel deck fixings., Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix timber deck fixings., Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix concrete deck fixings.
Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix steel deck fixings., Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix timber deck fixings., Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix concrete deck fixings.
Waterproof covering
-
-
Type
Atlantic TPO single ply, 1.2 mm unbacked.
Atlantic TPO single ply, 2 mm unbacked.
Attachment
Bailey Sure-Fix membrane tube washers, Bailey Sure-Fix steel deck fixings., Bailey Sure-Fix membrane tube washers, Bailey Sure-Fix timber deck fixings., Bailey Sure-Fix membrane tube washers, Bailey Sure-Fix concrete deck fixings.
Bailey Sure-Fix membrane tube washers, Bailey Sure-Fix steel deck fixings., Bailey Sure-Fix membrane tube washers, Bailey Sure-Fix timber deck fixings., Bailey Sure-Fix membrane tube washers, Bailey Sure-Fix concrete deck fixings.
Upper protection layer
Bailey 300 g/m² geotextile protection fleece.
Bailey 300 g/m² geotextile protection fleece.
System accessories
Not required., Outlets - specified below., Bailey Sure-flow stainless steel leaf guard - F-631-L., Bailey Sure-flow stainless steel parapet leaf guard - F-632-LP., Bailey Sure-flow stainless steel cylindrical leaf guard - F-633-LC., Bailey Sure-flow stainless steel balcony leaf guard - F-634-LB., Bailey Flow-therm standard retaining unit - 25–105 mm - F-652-25/105., Bailey Flow-therm parapet leaf guard - 110 mm - F-663-110., Bailey Flow-therm parapet leaf guard - 75 mm - F-663-75., Bailey Flow-therm parapet connecting pipe - 110 mm - F-664-110., Bailey Flow-therm parapet connecting pipe - 75 mm - F-664-75.
Not required., Outlets - specified below., Bailey Sure-flow stainless steel leaf guard - F-631-L., Bailey Sure-flow stainless steel parapet leaf guard - F-632-LP., Bailey Sure-flow stainless steel cylindrical leaf guard - F-633-LC., Bailey Sure-flow stainless steel balcony leaf guard - F-634-LB., Bailey Flow-therm standard retaining unit - 25–105 mm - F-652-25/105., Bailey Flow-therm parapet leaf guard - 110 mm - F-663-110., Bailey Flow-therm parapet leaf guard - 75 mm - F-663-75., Bailey Flow-therm parapet connecting pipe - 110 mm - F-664-110., Bailey Flow-therm parapet connecting pipe - 75 mm - F-664-75.
Additional properties
Outlets
Bailey Sure-flow stainless steel parapet outlet - 50 mm (Dark grey Atlantic flange) - D-518-50–DG., Bailey Sure-flow stainless steel parapet outlet - 75 mm (Dark grey Atlantic flange) - D-518-75–DG., Bailey Sure-flow stainless steel parapet outlet - 110 mm (Dark grey Atlantic flange) - D-518-110–DG., Bailey Sure-flow stainless steel outlet - 110 mm (Dark grey Atlantic flange) - D-530–110–DG., Bailey Sure-flow stainless steel outlet - 145 mm (Dark grey Atlantic flange) - D-530–145–DG., Bailey Sure-flow stainless steel outlet - 160 mm (Dark grey Atlantic flange) - D-530–160–DG., Bailey Sure-flow stainless steel outlet - 40 mm (Dark grey Atlantic flange) - D-530–40–DG., Bailey Sure-flow stainless steel outlet - 50 mm (Dark grey Atlantic flange) - D-530–50–DG., Bailey Sure-flow stainless steel outlet - 62 mm (Dark grey Atlantic flange) - D-530–62-DG., Bailey Sure-flow stainless steel outlet - 70 mm (Dark grey Atlantic flange) - D-530–70–DG., Bailey Sure-flow stainless steel outlet - 75 mm (Dark grey Atlantic flange) - D-530–75–DG., Bailey Sure-flow stainless steel outlet - 95 mm (Dark grey Atlantic flange) - D-530–95–DG., Bailey Flow-therm standard outlet - 75 mm (Dark grey Atlantic flange) - D-550–75–DG., Bailey Flow-therm standard outlet - 110 mm (Dark grey Atlantic flange) - D-550–110–DG., Bailey Flow-therm standard outlet - 160 mm (Dark grey Atlantic flange) - D-550–160–DG., Bailey Flow-therm standard extension unit 120–220 mm (Dark grey Atlantic flange) - D-551-120/220–DG., Bailey Flow-therm standard extension unit 60–160 mm (Dark grey Atlantic flange) - D-551-60/160–DG., Bailey Flow-therm parapet outlet - 110 mm (Dark grey Atlantic flange) - D-562-110–DG., Bailey Flow-therm parapet outlet - 75 mm (Dark grey Atlantic flange) - D-562-75–DG.
Bailey Sure-flow stainless steel parapet outlet - 50 mm (Dark grey Atlantic flange) - D-518-50–DG., Bailey Sure-flow stainless steel parapet outlet - 75 mm (Dark grey Atlantic flange) - D-518-75–DG., Bailey Sure-flow stainless steel parapet outlet - 110 mm (Dark grey Atlantic flange) - D-518-110–DG., Bailey Sure-flow stainless steel outlet - 110 mm (Dark grey Atlantic flange) - D-530–110–DG., Bailey Sure-flow stainless steel outlet - 145 mm (Dark grey Atlantic flange) - D-530–145–DG., Bailey Sure-flow stainless steel outlet - 160 mm (Dark grey Atlantic flange) - D-530–160–DG., Bailey Sure-flow stainless steel outlet - 40 mm (Dark grey Atlantic flange) - D-530–40–DG., Bailey Sure-flow stainless steel outlet - 50 mm (Dark grey Atlantic flange) - D-530–50–DG., Bailey Sure-flow stainless steel outlet - 62 mm (Dark grey Atlantic flange) - D-530–62-DG., Bailey Sure-flow stainless steel outlet - 70 mm (Dark grey Atlantic flange) - D-530–70–DG., Bailey Sure-flow stainless steel outlet - 75 mm (Dark grey Atlantic flange) - D-530–75–DG., Bailey Sure-flow stainless steel outlet - 95 mm (Dark grey Atlantic flange) - D-530–95–DG., Bailey Flow-therm standard outlet - 75 mm (Dark grey Atlantic flange) - D-550–75–DG., Bailey Flow-therm standard outlet - 110 mm (Dark grey Atlantic flange) - D-550–110–DG., Bailey Flow-therm standard outlet - 160 mm (Dark grey Atlantic flange) - D-550–160–DG., Bailey Flow-therm standard extension unit 120–220 mm (Dark grey Atlantic flange) - D-551-120/220–DG., Bailey Flow-therm standard extension unit 60–160 mm (Dark grey Atlantic flange) - D-551-60/160–DG., Bailey Flow-therm parapet outlet - 110 mm (Dark grey Atlantic flange) - D-562-110–DG., Bailey Flow-therm parapet outlet - 75 mm (Dark grey Atlantic flange) - D-562-75–DG.
Thickness
1.2 mm.
2 mm.
Sustainability data
Recyclability
100%
100%
